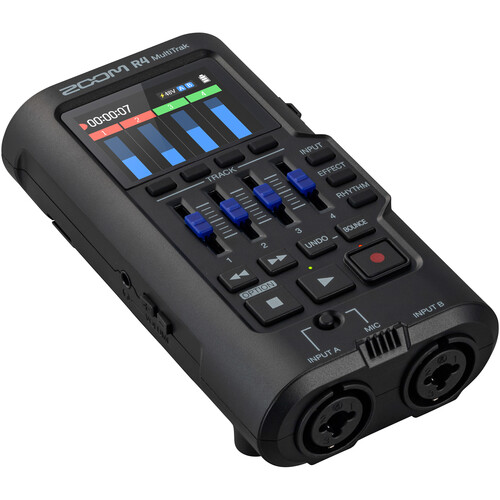

Zoom R4 MultiTrak Recorder

Overview
The R4 MultiTrak is a revolutionary portable multi-track compact studio that utilizes 32-bit Float audio technology. It features 4 tracks of recording, with the ability to bounce tracks to a dedicated track for layering. The R4 also has 2 XLR/TS combo inputs, a built-in omnidirectional microphone, and built-in effects like EQ, reverb, and compression. It also has 4 faders for volume control and can function as a USB audio interface. The R4 can be powered by 4 AA batteries or through its USB-C port.

With the R4, you can record, bounce, and repeat, allowing you to free up additional tracks for more layers. It also has 32-bit Float recording technology, ensuring perfect audio without clipping. The R4 also has a rhythm section with over 80 different drum patterns, making it more than just a metronome. It can also be used as a 2-in/2-out USB audio interface and has dedicated hardware buttons for easy control and creation. The R4 is a powerful and versatile tool for musicians and songwriters on the go.

Included in box
1x R4 MultiTrak Recorder

About the Zoom R4 MultiTrak Recorder
The R4 MultiTrak is the world’s first portable multi-track compact studio supported by 32-bit Float audio technology. Built around Zoom’s popular handheld design, the R4 will provide musicians and songwriters with an enticing new mobile device for layering music tracks, whether recording a demo or building an original tune, with pro-audio quality and the greatest benefit of clip-free recordings.

RECORD. BOUNCE. REPEAT.

With the R4, you can record up to four tracks, mix and then bounce them to the dedicated ‘bounce track.’ This lets you free up additional tracks to keep adding layers. You can also ‘undo’ your last bounce, allowing you to mix your tracks further or record new ones if necessary.

32-BIT FLOAT RECORDING

Don’t worry about your audio signal clipping. The R4 captures perfect audio with every take, without the need to set gain.

COMBO INPUTS

The R4 has 2 XLR/TS combo inputs with tried and tested Zoom preamps. You can plug in microphones, instruments, keyboards, and more.

ADD SOME EFFECTS

Track Effects

Each track features a 3-band EQ, pan, echo, and reverb to refine your mix.

Input Effects

Apply effects to input A such as amp simulations, delays, distortions and more.

BUILT-IN MICROPHONE

The R4 features a high-quality built-in microphone, perfect for acoustic guitars, vocals, or capturing a quick reference recording.

MUCH MORE THAN A METRONOME

The R4 has a rhythm section preloaded with over 80 different drum patterns to play along with featuring genres such as rock, hip hop, funk, heavy metal, and more.

EVERY TAKE IS SAVED

Tracks that you record are automatically saved individually, even after they have been bounced. These tracks or any other audio files can be loaded into a project on the R4

32-BIT FLOAT AUDIO INTERFACE

The R4 is also a powerful 2-in/ 2-out USB audio interface with 32-bit float technology. Connect it to either your computer or smartphone.

CONTROL AND CREATE

With a fader for each track and dedicated hardware buttons for the most used functions, you won’t need to menu dive to record your music.

POWERED FOR YOUR IDEAS

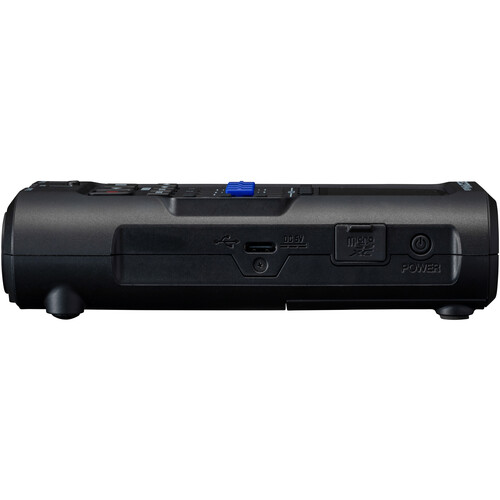

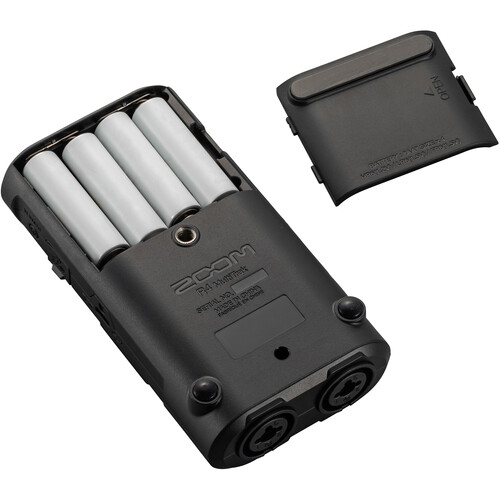

The R4 can be powered by 4 AA Batteries, or through its USB-C port.

INPUTS
CHANNELS 2(XLR/TS Inputs) +1 (Built In Mic)
XLR/TS INPUTS CONNECTORS- XLR(2: HOT)/TS combo jacks
INPUT GAIN Adjustment unnecessary (dual AD converter circuits used)
INPUT IMPEDANCE XLR 2.3kΩ , TS 1MΩ
MAXIMUM INPUT LEVEL MIC: +4 dBu
PHANTOM POWER +48V
EQUIVALENT INPUT NOISE −120 dBu or less (IHF-A)
MIC INPUT
MIC TYPE Omni-directional
SENSITIVITY -32 dB, 1 kHz at 1 Pa
INPUT GAIN Adjustment unnecessary (dual AD converter circuits used)
MAX SOUND PRESSURE INPUT 115 dB SPL
OUTPUTS
HEADPHONE – CONNECTOR 3.5mm stereo mini jack
MAXIMUM OUTPUT LEVEL 20 mW +20 mW (32Ω load)
RECORDING
RECORDING MEDIA 4GB–32GB microSDHC cards64GB–1TB microSDXC cards
WAV – SUPPORTED FORMATS 48kHz, 32-bit float, mono/stereo
MAXIMUM SIMULTANEOUS RECORDING TRACKS 2 INPUT
POWER SUPPLIES
BATTERIES 4 AA
AC ADAPTER ZOOM AD-17 (DC 5 V/1 A). USB bus power is supported.
DISPLAY
LCD TFT/240x320dot, Back Light: White
USB
CONNECTOR USB Type-C
MASS STORAGE CLASS USB 2.0 High Speed
AUDIO INTERFACE WITH REC
CLASS USB 2.0 High Speed
SAMPLING RATE 48kHz
BIT RATES 24-bit/32-bit float
CHANNELS 2 in/2 out
ESTIMATED CONTINUOUS OPERATION TIME USING BATTERIES
48 kHz/32-bit float, 2ch recording to microSDHC card
Alkaline batteries- about 7 hours
DIMENSIONS
Dimensions 74mm(W)×138mm(D)×36mm(H)
Weight (including battery) 287ｇ

4 Tracks of Recording + Dedicated Bounce Track
2 XLR/TS combo inputs for guitar, bass, keyboards, microphones and more
Built-in Omnidirectional Microphone
Dual AD circuitry with 32-bit float recording technology
Colour LCD Display
Built-in effects including EQ, Reverb, Compression, and Guitar effects
4 Faders for Volume Control
USB Audio Interface Function
Runs on 4 AA batteries or external USB-C battery
