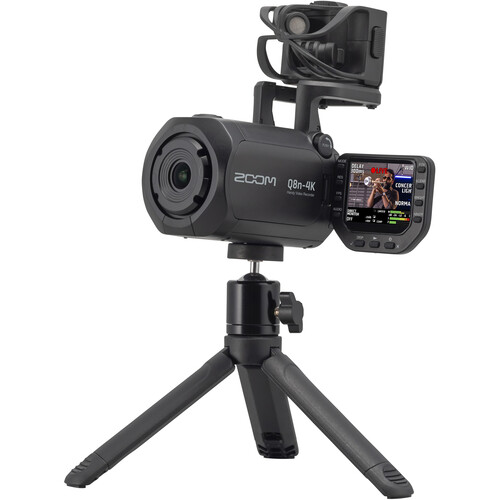

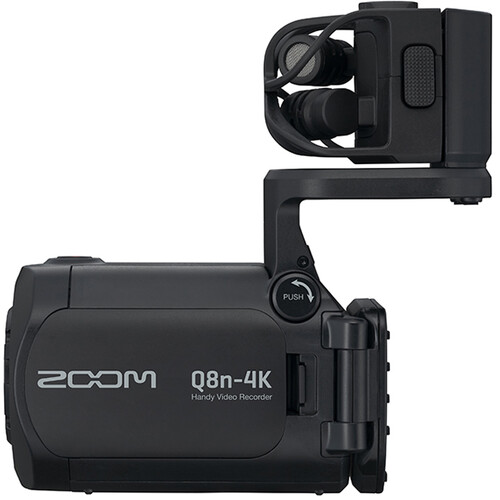

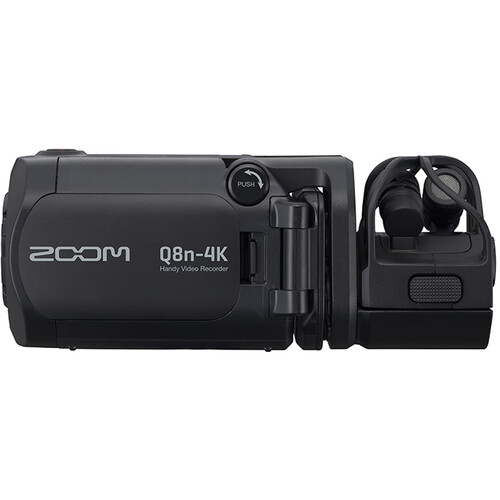

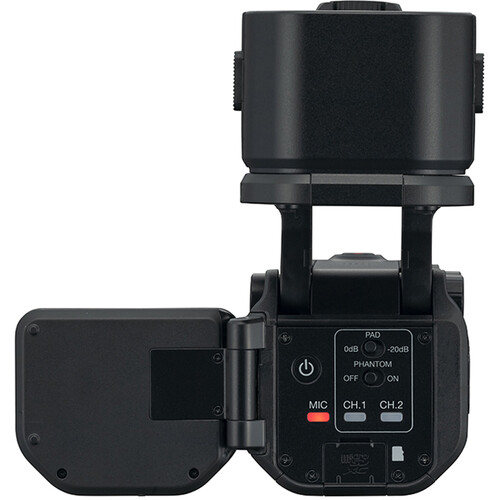

Zoom Q8n-4k Handy Video Recorder

Overview
The Zoom Q8n-4K is a high-quality 4K video and 4-track audio recorder with a 150º wide-angle lens and interchangeable Zoom mic capsule system. It also features two XLR mic/line inputs with phantom power, a full-color flip LCD for self-movie capture, and a USB interface for livestreaming and data transfer. Additionally, there are iOS/Android apps available for remote control.

The Q8n-4K is the perfect solution for musicians, filmmakers, podcasters, and other creators looking to capture professional-grade audio and video. Its compact size and affordable price make it a great fit for any production. With the ability to capture up to four tracks of simultaneous audio, various scene presets for different lighting settings, and the option to livestream via USB, the Q8n-4K offers versatility and convenience for all your recording needs.

Summary
Max Aperture: f/2.8
Recording Formats: MPEG-4 AVC
Audio Inputs: Internal Mic
Media Type:
micro SD
microSDHC
microSDXC
Resolution and Frame Rate: 4K 30p
Sensor: CMOS
Video Outputs: 1x HDMI Micro connector (Type D)
Weight: 0-2kg

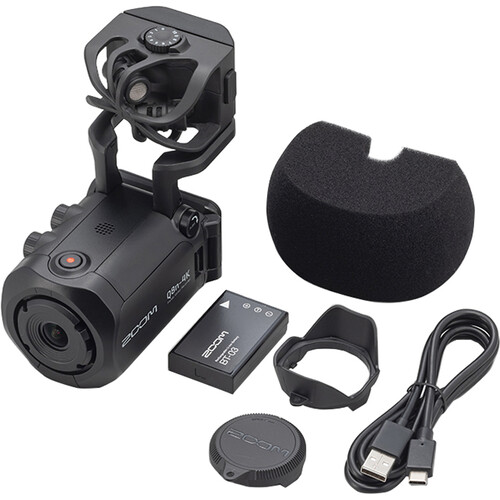

Included in box
1x Q8n-4K Handy Video Recorder
1x BT-03 Battery
1x Lens Cover
1x Lens Hood
1x Windscreen
1x USB Cable
1x Quick Guide

About the Zoom Q8n-4k Handy Video Recorder
CREATOR’S CHOICE

The Zoom Q8n-4K is designed to capture professional-grade audio with 4K video in a versatile, all-in-one handy recorder. It is the perfect video production and livestreaming solution for today’s musicians, filmmakers, podcasters and more.

THE RIGHT FIT FOR YOUR PRODUCTION

VIDEO PRODUCTION BEYOND THE LIMITS OF A SMARTPHONE

The Q8n-4K is designed for creators to showcase your best sound and look, elevating your videos with four audio tracks, along with 4K UHD video.

LIGHT WEIGHT, LIGHT ON THE WALLET

Compared to a mirrorless or DSLR, this camera’s size is meant to seamlessly fit into your production while its price ensures that it fits into your budget.

4-TRACK MINDED

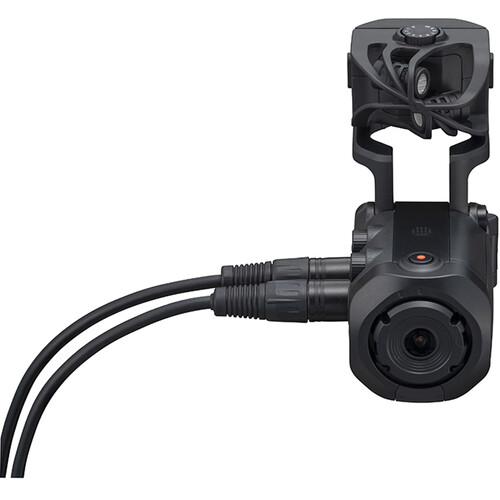

With the included X/Y mic capsule and two XLR inputs, you can capture up to four tracks of simultaneous, crystal-clear audio.

IN THE MIX

Capture every instrument and voice of your band by running the main outputs of a mixing board right to your Q8n-4K.

CAPTURING PERFORMANCES

Take advantage of the Q8n-4K’s compact size, vivid imagery, and high-quality audio, recording your genuine look and sound during live or studio performances.

EASY ON THE EYES

Record in 4K resolution at 30fps. With the F2.8/150º wide-angle lens, five field of view (FOV) settings, and brightness adjustments, the Q8n-4K produces vivid video quality at every shoot.

LIVESTREAMS

Easily connect via USB to your computer and stream to your favorite platforms.

SET THE SCENE

Get the right look in any setting using Scene presets for Indoor, Outdoor, Nighttime and Concert Lighting. Alternatively, the Auto setting will optimize lighting based on your environment.

LISTEN UP

Use the stereo headphone output jack and on-screen level meters to monitor your sound.

INDEPENDENT FILMMAKING

The Q8n-4K is compact and mobile, perfect for run-and-gun shoots while operating handheld or with a gimbal.

SELFIE MODE

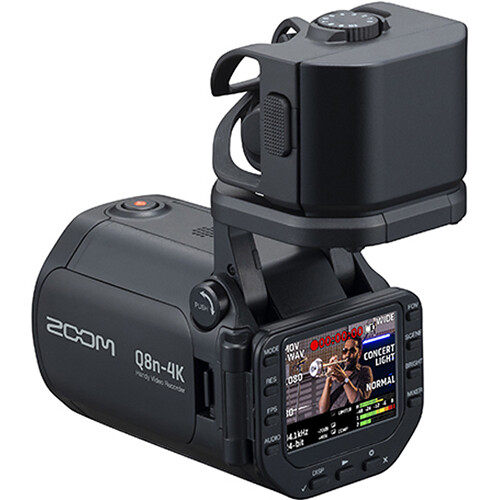

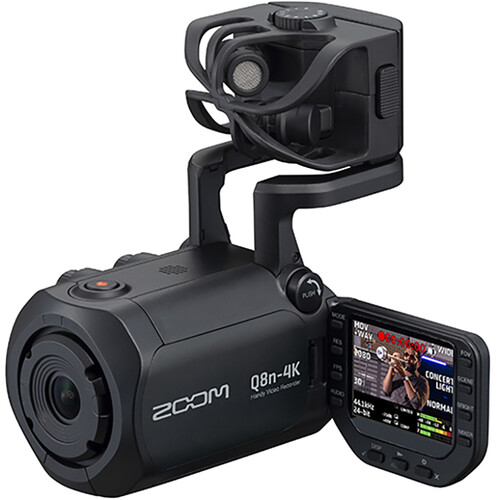

Be the star of your own production. Use the flip-out screen to view yourself while operating the Q8n-4K.

POWER YOUR SHOOTS

Choose the right power source for your shoot by using the camera’s rechargeable Li-ion battery, charge via USB or with an optional AC adapter, all while recording to a mini-SD card up to 512GB.

YOU’RE IN CONTROL

The Q8n Control app for iOS allows you to remotely monitor your levels and start and stop recording.

*BTA-1 Bluetooth adapter required

IMAGE SENSOR 1/2.3in 16 M-pixel CMOS sensor
LENS F 2.8, 150° FOV
VIDEO FORMAT MPEG-4 AVC/H.264 (MOV)
VIDEO RESOLUTIONS 4K/30, 25, 24
1080/60, 50, 30, 25, 24
720/60, 50, 30, 25, 24
AUDIO FORMATS WAV:
96 kHz/24-bit, 16-bit
48 kHz/24-bit, 16-bit
44.1 kHz/24-bit, 16-bit
AUDIO FUNCTIONS LoCut: Off / 80 Hz / 120 Hz / 160 Hz / 200 Hz / 240 Hz
Fx: Off / Limiter / Compressor / Leveler / DeEsser / NoiseGate
Level: −∞ dB – +10 dB
Pan: L100 – Center – R100
Delay: 0 ms, 10 ms … 300 ms (only during web camera use)
Direct Monitor: On/Off (only during web camera and USB mic
IMAGE FUNCTIONS
FOV 5 steps
SCENE AUTO / INDOOR / OUTDOOR / NIGHT / CONCERT LIGHT
SELF TIMER OFF / 3 sec / 5 sec / 10 sec
BRIGHT LOW / NORMAL / HIGH
AUDIO INPUTS MIC
MIC XY Mic: XYQ-8 (120° XY stereo mic）
Maximum sound pressure: 120 dBSPL
Input gain: −∞ dB – 43 dB

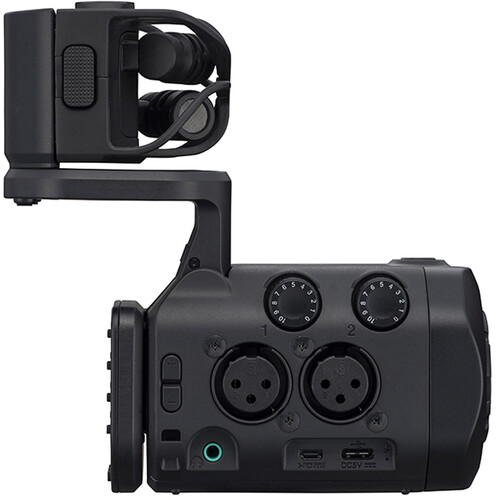

INPUT 1/2 Input connector: XLR
Input gain (PAD OFF): −∞ dB – 55 dB
Input impedance : 1.8 kΩ or more
Maximum permissible input level: +26 dBu (PAD ON)
Phantom power: +12 V / +24 V / +48 V
Equivalent input noise: –120 dBu or less
OUTPUT CONNECTOR Combined line/headphone stereo mini jack
HDMI micro Type D
BUILT-IN SPEAKER 300 mW 8 Ω mono speaker
RECORDING MEDIA microSD / microSDHC / microSDXC (512 GB maximum)
USB TYPE-C < WEBCAM > CLASS: UVC 1.0 + UAC 1.0 FORMATS: 720 P, 1080 P WVGA VIDEO
48 KHZ/16-BIT AUDIO
UP STEREO
CLASS USB MASS STORAGE < USB MIC > CLASS: UAC 1.0, FORMAT
44.1 KHZ/16-BIT- Up: 2 ch, Down: 2 ch

NOTE- CARD READER AND USB MIC FUNCTIONS SUPPORT IOS DEVICES
NOTE-SUPPORTS USB BUS POWER OPERATION
NOTE- USE USB CABLE THAT SUPPORTS DATA TRANSFER.
POWER Lithium-ion battery: DC 4.2 V maximum voltage, DC 3.7 V nominal voltage
1600 mAh capacity AC adapter (ZOOM AD-17): DC 5 V/1 A Recharging times
By USB 2.0 port: about 4 hours and 30 minutes By USB 3.0 port: about
3 hours and 00 minutes Using ZOOM AD-17
about 3 hours and 00 minutes Battery operation time
4K/30: 1 hour and 20 minutes 1080/30: 2 hour and 30 minutes

4K video and 4-track audio recorder
High-quality 150º wide-angle lens with 5 field of views
Interchangeable Zoom mic capsule system
Two XLR mic/line input (with phantom power)
Full-color flip LCD for self-movie capture
USB interface for livestreaming / data transfer
iOS/Android apps for remote control*
