Overview
The EXH-6e is a versatile recording device that offers 2 XLR/TRS inputs and a 3.5mm stereo mic/line input, providing users with increased flexibility in their recording set-up. This means that you can easily connect microphones, instruments, mixers, and more to capture high-quality audio.
The EXH-6e features 2 XLR/TRS inputs with locking connectors, making it suitable for both mic and line level input. Additionally, it also has a 3.5mm stereo mic/line input, perfect for lavalier microphones or stereo feeds. Furthermore, the device can provide phantom power for the XLR/TRS inputs, allowing you to use condenser microphones. You can also use plug-in power for lavalier mics connected to the 3.5mm input. The EXH-6e utilizes Zooms Capsule System 3.0, which ensures a stable connection and enables 32-bit float recording.
About the Zoom H6essential Dual XLR/TRS Combo Capsule
Expand Your Recording
The EXH-6e features 2 XLR/TRS inputs and a 3.5mm stereo mic/line input for an added level of flexibility in your recording. Plug in microphones, instruments, mixers, and more.
Input Types
The EXH-6e features 2 XLR/TRS inputs with locking connectors to accept mic or line level input. Additionally, a 3.5 mm stereo mic/line input is available for lavalier microphones or stereo feeds.

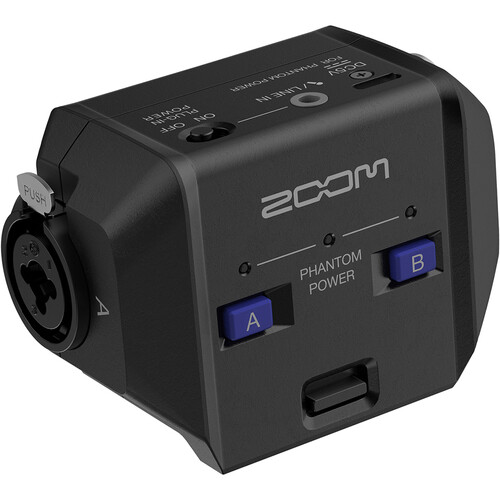

Phantom Power
The EXH-6e can provide phantom power for the 2 XLR/TRS combo inputs. Connect the USB-C port of the capsule to an AC outlet or USB battery to power condenser mics. Plug-in power is also available for lavalier mics connected to the 3.5mm input.
Capsule System 3.0
The EXH-6e utilizes Zoom’s Capsule System 3.0. This new connector provides a stable connection and allows for 32-bit float recording.

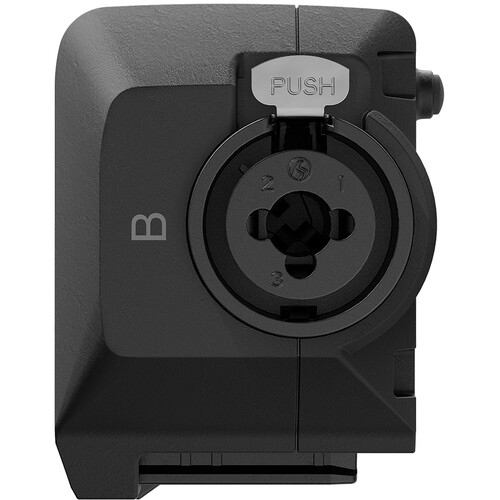

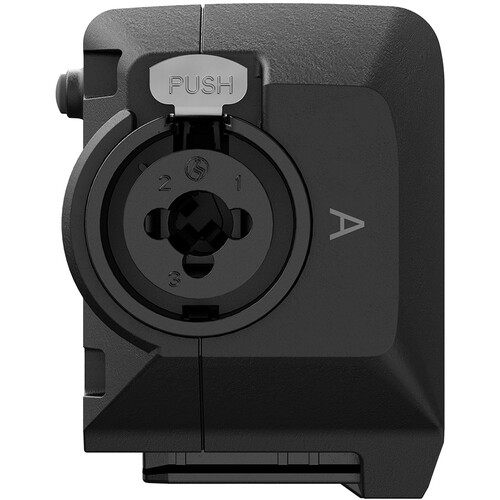

INPUT A/B jacks
Connectors XLR/TRS combo jacks (XLR: 2 HOT, TRS: TIP HOT)
Input gain adjustment unnecessary
Input impedance 3.8 kΩ or higher (MIC) / 39 kΩ or higher (LINE)
Maximum input level −4 dBu (MIC) / +16 dBu (LINE)
Phantom power +48 V, 10 mA maximum per channel
Equivalent input noise −120 dBu or less (IHF-A) at 150Ω input
MIC/LINE jack
Connector stereo mini jack
Input gain adjustment unnecessary
Input impedance 2 kΩ or higher
Physical
Dimensions 78.1 mm (W) × 56.7 mm (D) × 43.9 mm (H)
Weight 96 g
Compatibility
Compatible Models H6essential
