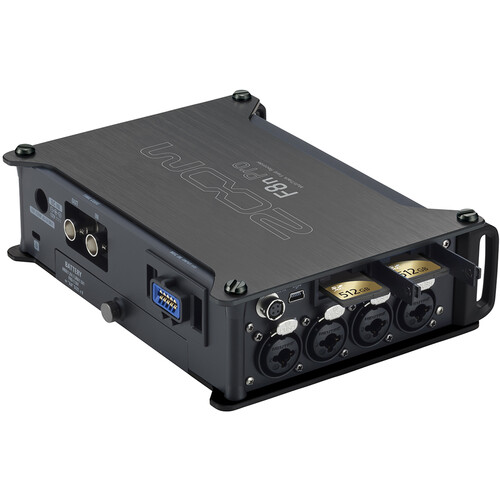

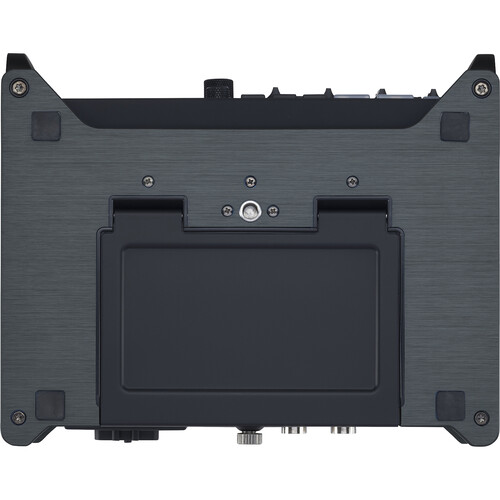

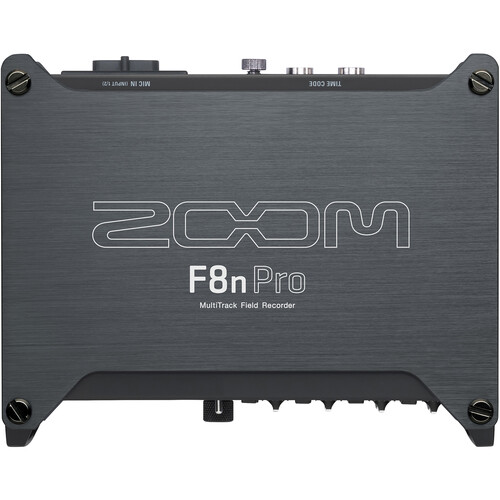

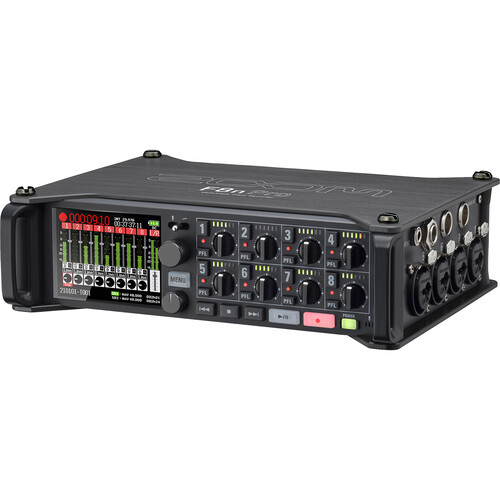

Zoom F8n-Pro 32-Bit Float Field Recorder

Overview
The Zoom F8n Pro is a top-of-the-line field recorder and mixer, featuring 32-bit float recording technology and 8 channels with up to 10 tracks. It records in BWF-compliant WAV format at a high resolution of up to 192kHz/32-bit float, with 8 discrete inputs and high quality mic preamps. It also offers accurate Time Code, multiple power supply options, and various features such as a high pass filter, phase invert, and mid-side decoder. The F8n Pro can also be used as a USB audio interface and comes with a free control app for iOS and Android devices.

With the F8n Pro, filmmakers and sound professionals can capture immersive and high-quality audio for their projects. It offers multiple outputs, flexible signal routing, and state-of-the-art timecode to keep tracks perfectly synced. The Zoom AutoMix feature automatically adjusts levels to reduce ambient sound, while the pre-record function ensures that no takes are missed. The F8n Pro also has expanded control options and various power supply options, making it a reliable and versatile tool for any professional filmmaker or sound engineer.

Summary
Recording Formats:
MP3
WAV
Outputs: TA3
Battery Mount / Type: AA
Power Supply: HIROSE HR10A-7R-4S
Included in box
1x F8n Pro Field Recorder
1x Zoom AD-19 12V AC adapter
1x Operation manual

About the Zoom F8n-Pro 32-Bit Float Field Recorder
ZOOM’S NEW FLAGSHIP FIELD RECORDER.

Filmmakers and sound professionals know the importance of sharp, clean audio in storytelling. From the click of a seatbelt to the roar of an engine, the F8n Pro’s 8 inputs capture full dynamic range using 32-bit float technology

CREATE IMMERSIVE AUDIO

With 8 inputs and 10 tracks, the F8n Pro can capture the most complex audio, expanding your options so that you can create sonic magic in post.

EXPLOSIVE AUDIO

32-Bit Float is a game-changer. The F8n Pro uses dual A/D converters and professional-grade preamps to capture clip-free audio – without ever needing to adjust gain!

MULTIPLE FEEDS

The F8n Pro has three outputs for external devices, headphones, and camera connections. You can keep tabs on your tracks pre or post-fader, check levels, route signals to the left or right and set alert tones for battery and recording status.

Formatting Options

The F8n Pro records in BWF-compatible WAV formats up to 32-bit resolution and at sample rates up to 192 kHz.

Built-in Processing

The F8n Pro features flexible signal routing from all inputs to all outputs, phase inversion and mid-side decoding. It also provides high-pass filtering to reduce the sound of wind and other noise. Input and output delays are also available.

State-of-the-Art Timecode

Keep your tracks perfectly synced even when you power down. On or off, the F8n Pro’s Temperature Compensated Crystal Oscillator (TCXO) generates time code at 0.2 ppm accuracy.

Stay Focused With Zoom Automix

Zoom AutoMix lets you keep your eyes on the action by automatically adjusting the levels of your mix to reduce ambient sound.

Full Metadata Entry

The track name, scene names, notes, and more can be entered directly from the unit or via the Zoom F8 Control App for iOS / Android.

SIX SECONDS OF AUDIO

The pre-record function allows you to capture up to 6 seconds of audio before you hit the RECORD button, guaranteeing you never miss a take

RECORD AND STREAM, TOGETHER

When connected to your computer, the F8n Pro can be used as a 8-in / 4-out audio interface. Record and stream in 32-bit float / 96kHz while simultaneously recording to SD cards.

GO MOBILE

The F8 Control App (for iOS / for Android) lets you visually monitor signals, adjust levels, trigger transport controls, enter metadata and more from your Android device, iPhone or iPad via Bluetooth.

EXPANDED CONTROL

The Zoom F-Control (FRC-8) gives you more flexibility in the field. With 60 mm faders and controls for trim, pan and track-arming, the FRC-8 is a must-have for any professional filmmaker

POWER UP

The F8n Pro is well-equipped for long location shoots or remote fieldwork, with a variety of power options and massive storage.

Onboard Power

Use eight AA alkaline batteries for 5 hours of power or plug in the included AD-19 AC adapter.

Alternate Power

External 9-18 volt DC battery packs can be used with a 4-pin Hirose connector.

Dual Memory

Record simultaneously on two SD cards, up to 1TB each, allowing for redundant recording.

360º AUDIO

The F8n Pro’s Ambisonics mode offers precision A-to-B decoding and balanced gain linking, enabling you to capture spatial audio for VR, AR and more.

Download the FREE Zoom Ambisonics Player software to decode and edit your 360-audio with ease.

OUTPUTS
MAIN OUT 1/2
Connectors TA3 connectors (balanced output, 2: hot)
Output impedance 150 Ω or less
Reference output level −10 dBV (normal output level)
+4 dBu (line output level)
1 kHz, 600 Ω load
Maximum output level +10 dBV (normal output level)
+24 dBu (line output level)
1 kHz, 600 Ω load
SUB OUT 1/2
Connectors 3.5 mm stereo mini (unbalanced output)
Output impedance 100 Ω or less
Reference output level −10 dBV (normal output level)
−40 dBu (mic output level)
1 kHz, 10 kΩ load
Maximum output level +10 dBV (normal output level)
HEADPHONE
Connector 1/4 inch stereo (unbalanced output)
Output impedance 18 Ω or less
Maximum output level 100 mW + 100 mW (32 Ω load)
D/A DYNAMIC RANGE 105 dB typ. (−60dBFS input, A-weighted)
RECORDING FORMATS
WHEN WAV SELECTED
Supported formats 44.1, 47.952, 48, 48.048, 88.2, 96 and 192 kHz
16-bit linear, 24-bit linear and 32-bit float
Mono/stereo/2-10 ch poly
BWF and iXML
Maximum simultaneous recording tracks 10 (8 inputs + stereo mix)
8 (at 192 kHz sampling rate)
WHEN MP3 SELECTED
Supported formats 128, 192 and 320 kbps
44.1 and 48 kHz
ID3v1 tags
Maximum simultaneous recording tracks 2
RECORDING TIME
Using a 32GB card 23:08:00 (48 kHz/32-bit float stereo WAV)
5:47:00 (192 kHz/32-bit float stereo WAV)
TIMECODE
Connector BNC
Modes Off, Int Free Run, Int Record Run, Int RTC Run, Ext and Ext Auto Rec
(audio clock can be synchronized to timecode)
Frame rates 23.976ND, 24ND, 25ND, 29.97ND, 29.97D, 30ND and 30D
Precision ±0.2 ppm
Supported input levels 0.2 – 5.0 Vpp
Input impedance 4.6 kΩ
Output level 3.3 Vpp
Output impedance 50 Ω or less
POWER SUPPLIES
AA batteries 8 (alkaline, nickel-metal hydride or lithium)
AC adapter ZOOM AD-19, DC 12 V/2 A, center plus
External DC power supply HIROSE HR10A-7R-4S 4-pin connector (1 pin: -, 4 pin: +), 9–18 V
ESTIMATED CONTINUOUS RECORDING TIMES
(THESE VALUES ARE ONLY ESTIMATES) 2 channels to SD 1 48kHz
sampling frequency (32-bit float/16-bit linear/24-bit linear)
MAIN/SUB OUT OFF, TIMECODE OFF, LED/LCD brightness 5, 32Ω headphones, PHANTOM OFF
Alkaline batteries- about 6 hours
THESE VALUES ARE BASED ON IN-HOUSE TESTING METHODS
NiMH batteries (2500 mAh): about 8.5 hours
THEY WILL VARY GREATLY ACCORDING TO USE CONDITIONS.
Lithium batteries- about 12 hours
8 channels to SD 1 48kHz sampling frequency (32-bit float/16-bit linear/24-bit linear)
MAIN/SUB OUT OFF, TIMECODE OFF, LED/LCD brightness 5, 32Ω headphones, PHANTOM OFF
NiMH batteries (2500 mAh)- about 7 hours
Lithium batteries- about 10 hours
8 channels to SD 1/2 192kHz sampling frequency (32-bit float/16-bit linear/24-bit linear)
MAIN/SUB OUT ON, TIMECODE Int Free Run, LED/LCD brightness 60, 32Ω headphones, PHANTOM 48 V
Alkaline batteries- about 0.5 hours
NiMH batteries (2500 mAh)- about 1.5 hours
Lithium batteries- about 2.5 hours
DISPLAY 2.4 inch full-color LCD (320 × 240)
USB
Connector Mini-B
Use a USB cable that supports data transfer.
USB bus power operation is not supported
MASS STORAGE OPERATION
Class USB 2.0 High Speed
MULTI TRACK AUDIO INTERFACE MODE OPERATION (DRIVER REQUIRED FOR WINDOWS, NOT REQUIRED FOR MAC)
Class USB 2.0 High Speed
Sampling rate: 44.1/48/88.2/96 kHz
Bit depth 24-bit linear/32-bit float
8-in/4-out
STEREO MIX AUDIO INTERFACE MODE OPERATION (NO DRIVER REQUIRED)
SUPPORTS AUDIO INTERFACE OPERATION WITH IOS/IPADOS DEVICES
Class USB 2.0 Full Speed
Sampling rate 44.1/48 kHz
Bit depth 16-bit linear
2-in/2-out
AUDIO INTERFACE OPERATION WITH RECORDING
(DRIVER REQUIRED FOR WINDOWS, NOT REQUIRED FOR MAC)
Class USB 2.0 High Speed
Sampling rate 44.1/48 kHz
Bit depth 24-bit linear/32-bit float
10-in/4-out
POWER CONSUMPTION 15 W
EXTERNAL DIMENSIONS 7.0 in. (W) × 5.5 in. (D) × 2.1 in. (H)
WEIGHT (INCLUDING BATTERIES)1200 g

32-bit float recording technology
8-channel/10-track field audio recorder/mixer
Records in BWF-compliant WAV format up to 192kHz/32-bit float
8 discrete inputs with locking Neutrik XLR/TRS combo connectors
High quality mic preamps with up to 75 dB gain and less than -127 dBu EIN
Switchable +4dB inputs with mic/line options for both XLR and TRS
Accurate Time Code (0.2 ppm when on and up to 0.2 ppm when powered off) I/O on standard BNC connectors; dropframe/non-drop formats with Jam Sync
Zoom AutoMix software
Three different power supply options: 8x AA batteries, external DC battery pack with Hirose connector, or 12V AC adapter (AA’s and DC battery pack not included)
High pass filter, phase invert, and mid-side decoder
Dual mini-XLR (TA3) balanced Main Outs plus ⅛” stereo mini-jack Sub Out
Dedicated headphone output (100 mW) with front panel volume control
2.4″ full-color backlit LCD with monochromatic mode
Dual SD/SDHC/SDXC card slots, up to 1 TB each
Use as an 8-in/4-out USB audio interface
Free Zoom F8 Control App for iOS and Android allows wireless remote control,
file renaming, and metadata entry
