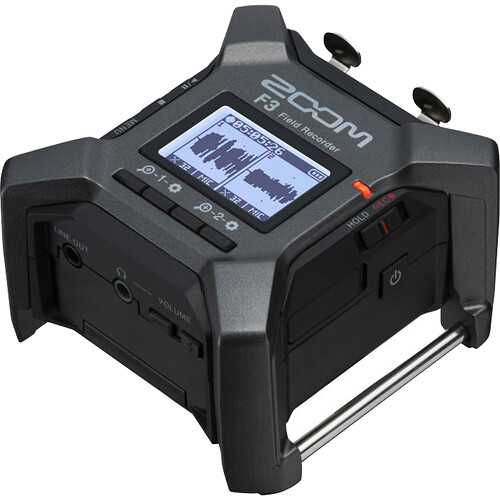

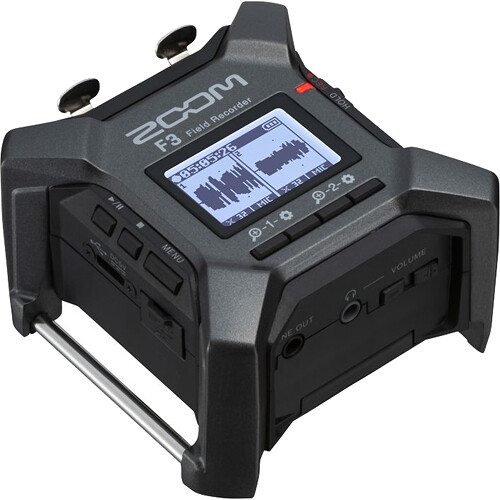

Zoom F3 Field Recorder

Overview
The F3 is a compact and durable 2-channel/2-track field audio recorder that features 32-bit float recording and dual AD converters for capturing clip-free audio with full dynamic range. It has two discrete inputs with locking XLR connectors and a real-time waveform display on the LCD for monitoring input signals. With high-quality mic preamps, the F3 provides a super-low noise floor and can record up to 192 kHz sampling/32-bit float WAV format, mono or stereo files. It also has a stereo ⅛” Phone/Line Output jack and can record directly to microSDHC and microSDXC cards up to 1 TB.

The F3 can also be used as a 2-in/2-out USB audio interface and has over 8 hours of operation with two AA alkaline batteries. It can be powered by two standard AA batteries, an AC adapter, or a USB battery pack. With the optional BTA-1 Bluetooth adapter and UltraSync Blue device by Timecode Systems, the F3 can also wirelessly synchronize timecode. Its small design allows for easy placement and its durable construction makes it suitable for use in a variety of environments. The F3 also has a headphone output and line output for monitoring and connecting to other gear, and can be used for streaming and recording with a computer or iOS device.

Summary
Recording Formats: WAV
Outputs: Stereo Mini Jack
Battery Mount / Type: AA
Included in box
1x F3
* Excludes strap for use around the metal mounting bars

About the Zoom F3 Field Recorder
SMALL DESIGN, BIG SOUND

With 32-bit float recording, the F3 effortlessly captures the quietest raindrops and the loudest explosions. Its small footprint allows for this recorder to be placed anywhere, as you capture and monitor up to 192 kHz of high-quality audio.

FOCUS ON THE SCENE

When you’re working in the field or on set, sound levels can fluctuate often and quickly. The F3 allows you to adapt to your scene without having to set the gain or worry about clipping. In post, you’ll be able to work with your capture, regardless of extremely low or high levels.

AWARD WINNING AUDIO

Featuring the dual A/D converters and low-noise preamps found in the professional F-Series recorders, the F3 guarantees high-quality recordings in any setting or situation.

BATTLE TESTED

The F3 is built with durable side bars, standard tripod mount and slide-resistant rubber feet ensuring that you can mount it on your gear or hide it in any scene. It’s sturdy metal casing and locking XLR connectors is designed for use in a variety of environments.
WAV WATCHING

Monitor your recordings with seamless accuracy as the F3 displays your audio as real-time waveforms.
RECORD & LISTEN

The headphone output allows you to keep an ear on your recordings, plus a line output enables you to go to your camera or other gear.
AUDIO INTERFACE & STREAMING

Connect your F3 to a computer or iOS device via USB as an audio interface and record or stream up to two channels in crystal-clear 24-bit/96 kHz resolution. The loopback function allows you to combine your computer’s audio with the F3 inputs to complete the sound for your stream.

Input and output channels
INPUTS MIC/LINE (mono): 2
OUTPUTS LINE OUT: 1
PHONE OUT: 1
Inputs
MIC/LINE (MONO) Connectors: 2 XLR (2: HOT)
Input gain: Adjustment unnecessary (dual AD converter circuits used)
Input impedance: MIC: 3 kΩ or more
LINE: 3 kΩ or more
Maximum input level: MIC: +4 dBu
LINE: +24 dBu
Phantom power: +24/48 V
Combined channel total of 10 mA or less
Equivalent input noise: −127 dBu or less (IHF- A) when waveform magnification is ×1024 with 150 Ω input
Outputs
LINE OUT Connector: 1 stereo mini jack
Maximum output level: +1 dBu
Output impedance: 100 Ω or less
PHONE OUT Connector: 1 stereo mini jack
Maximum output level: 50 mW + 50 mW (into 32 Ω load)
Output impedance: 15 Ω or less
Recorder Maximum simultaneous recording tracks: 2
Maximum simultaneous playback tracks: 2
Recording format: WAV
44.1/48/ 88.2/96/192 kHz,
32-bit float mono/stereo
BWF and iXML formats supported
Recording media: 4 – 32 GB cards compatible with the microSDHC specification
64 GB – 1 TB cards compatible with the microSDXC specification
Display LCD with backlight (96×64 resolution)
USB Connector: USB Type-C
• Use a USB cable that supports data transfer. USB bus power is supported.
Audio interface operation: USB2.0 High Speed
44.1/48/88.2/96 kHz, 24-bit
2-in/2-out
Mass storage operation: USB 2.0 High Speed
Remote Dedicated wireless adapter (ZOOM BTA-1)
Power 2 AA batteries (alkaline, NiMH or lithium)
AC adapter (ZOOM AD-17): DC 5 V/1 A
• USB bus power is supported.

2-channel / 2-track field audio recorder
Featuring 32-bit float recording and dual AD converters for full dynamic range and clip-free audio capture
2 discrete inputs with locking XLR connectors
Input signals can be monitored with realtime waveform display on LCD
Compact and Durable (can be attached to boom mic with velcro)
High quality mic preamps provide a super-low noise floor (−127 dBu EIN)
Record up to 192 kHz sampling/32-bit float WAV format, mono or stereo files
Stereo ⅛” Phone/Line Output jack with dedicated Volume control
Records directly to microSDHC and microSDXC cards up to 1 TB
Wireless iOS/Android* remote control available through optional BTA-1 Bluetooth adapter (*Android version to be released in 2022)
Use as 2-in/2-out USB audio interface (up to 24-bit/96 kHz)
Over 8 hours of operation with two AA alkaline batteries
Runs on only 2 standard AA batteries or AC adapter (AD-17) or USB battery pack
Wireless timecode synchronization (*Optional BTA-1 Bluetooth adapter and UltraSync Blue device by Timecode Systems are required.)
