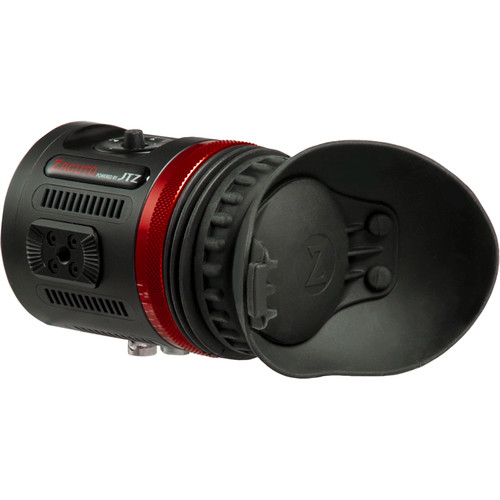

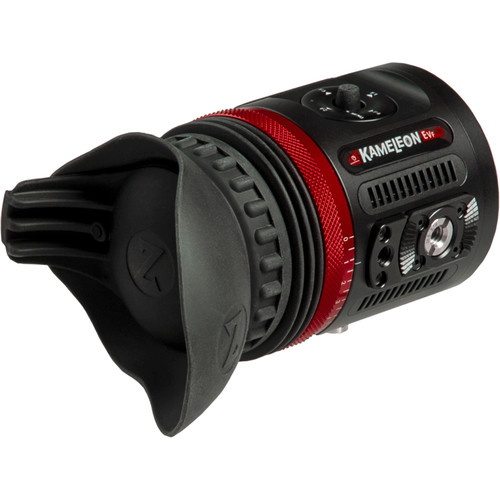

Zacuto Kameleon Pro EVF

Overview
The Kameleon EVF Pro is a state-of-the-art design with high quality precision optics. It offers display calibration settings such as RGB, brightness, contrast, saturation, sharpness, and hue. It also has physical features like a joystick menu/function button, adjustable diopter ring, drop-in diopters for additional correction, auto-closing eyecup, 2-step anti-fog shields, and an Arri Rosette on both sides. It also includes software features such as custom scaling, frame lines, center marker/crosshair, anamorphic, 4:1 zoom, image flip, false colour, red line peaking, freeze frame, zebras stripes, histogram, waveform, vectorscope, audiometers, 4 programmable hotkeys, 3D LUT import, and SMPTE colour bars. A new firmware (V1.034) is available, which fixes issues with waveform consistency and flickering.

The Kameleon EVF Pro has all the features of the previous model, plus waveform, vectorscope, and a new display interface. It has a powerful, 1080p, micro-OLED display and is compatible with both SDI and HDMI cameras. It also features a built-in -1 to +4 diopter range and Zacutos patented anti-fog coating to prevent fogging in any weather conditions. The EVF is designed to be used with Zacutos Next Generation Recoil Rigs, which provide balance and comfort for the user. Overall, the Kameleon EVF Pro is a versatile and reliable addition to any camera rig.

Summary
Resolution: Full HD
Connections:
HDMI Input:
Power Connection: 4 Pin Lemo
Screen Dimension:
Video Connection: HDMI/SDI
Included in box
1x Kameleon Pro EVF

About the Zacuto Kameleon Pro EVF
Please Note: new firmware (V1.034) available here.

1.Fixed the problem of consistency of waveform under SDI signal and HDMI signal.

2.Fixed problem of flickering in some circumstance.

The Kameleon EVF Pro includes all the features of the current model plus Waveform, Vectorscope, and an all-new display interface.

Kameleon EVF vs Kameleon EVF Pro

In order to incorporate Waveform and Vectorscope into the new interface, Zacuto have changed the overlay to a classic 16×9 image with space underneath for scopes and additional information. Moving the data under the image also allows for a brighter, more colorful image and helps prevent burn-in.

A Powerful, 1080p, Micro-OLED EVF for All Your SDI and HDMI Cameras

The Kameleon Pro, ‘powered by JTZ’, offers unique features like 4K HDMI input downscaled to 1080P and 3D LUTS. With this EVF and the trio of powerful Gratical EVFs, Zacuto have an EVF for every shooting style.

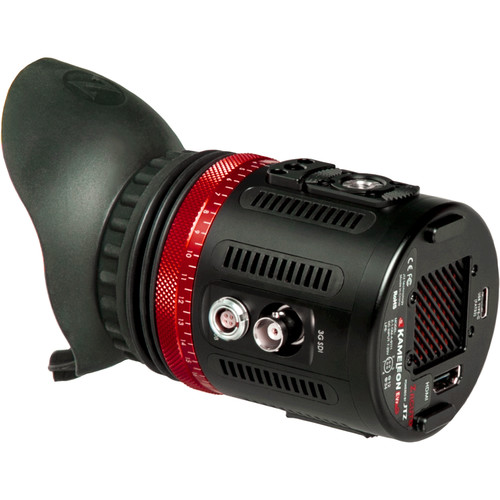

The Kameleon Pro has a 4 pin Lemo power jack and a single SDI and HDMI input. It is the perfect EVF for Mirrorless and DSLR cameras and it’s SDI input adds versatility so that you can use it on a wide variety of other cameras. Like all Zacuto EVFs, It features a built-in -1 to +4 diopter range and Zacuto’s patented essential anti-fog coating formula. It never fogs in humidity or freezing temperatures. An auto-closing eyecup door helps prevent your display from getting burned by the sun.

Micro-OLED Display

With Micro-OLED screens, each pixel is lit individually so that when one is turned off there is true black. This makes for a wider contrast range and more vibrant colours for a vivid, enhanced picture.

Overlay and Brightness

Kameleon Pro has a classic 16×9 image with space underneath for information like Vectorscope, Waveform, and Histogram. Moving the data under the image allows for a brighter, more colourful image and helps prevent burn-in.

Peaking

The Kameleon Pro includes Red Line Focus Assist to ensure crisp focus. The Gratical EVFs have a few more options with both Red Line Focus Assist, and a Multi-Level Sharpening Focus Assist Peaking, so you can choose the focus assist option that works best for you.

The Zacuto Unique Anti-Fog Promise

The Kameleon Pro features a built in -1 to +4 diopter range and Zacuto’s patented anti-fog 2 level system. Level 1, the custom lens is coated in an anti-fog formula. Need even more protection? Move on to level 2, add the included clear anti-fog disc over the existing lens for increased protection. A light eliminating, auto-closing eyecup prevents sunburn display.

Tested from a freezer straight to use outside on a hot, humid day – and it never fogs! Any optical device is useless if it fogs. You won’t realise how much of life saver this is until you’ve used it!

The Kameleon Pro and Next Gen Recoil Rigs

Zacuto’s universal Next Generation Recoil Rigs are all about BALANCE! An EVF is a vital part of any balanced shoulder rig. Recoil Rigs place the balance point directly over your shoulder, pushing focus and monitoring further forward, creating a lighter and shorter rig.

The Kameleon Pro Micro-OLED EVF is the perfect addition to any Zacuto Recoil Rig. Since it is HDMI and SDI compatible, you can feel confident adding the Kameleon Pro to any rig from a Mirrorless to a RED and anything in between!

Micro-OLED Display
Screen Dimensions 18 mm (0.71 in) diagonal
Resolution 1920 x 1080p
Contrast Ratio 10,000:1
Refresh Rate 60HZ
Colour Depth 24-bit RGB
Luminance 150-250 cd/m^2
Pixel Info 3103 PPI
6.5 million pixels
Connections HDMI x1
SDI x1
USB-C x1
HDMI Input 4K DCI, 4K, 1080P, 1080i, 720P
SDI Input 3G SDI, 1080P, 1080i, 720P
Power
Voltage Input 7-20V
Power input port 4 pin LEMO 0B
Power Consumption 5W
Dimensions 12.45 x 7 x 7.2 cm (4.9 x 2.75 x 2.83 in)
Weight 0.43 kg (15 oz)

State-of-the-art design
High quality precision optics
Display Calibration Settings: RGB, brightness, contrast, saturation, sharpness, hue

Physical Features:

Joystick menu/function button
Adjustable diopter ring
Drop in diopters for additional correction (+1, +2, +3, +4)
Auto Closing Eyecup
2-step anti-fog shields
Arri Rosette on both sides
Cooling fan

Software Features:

Custom Scaling
Frame lines
Calibration Settings
Center marker/crosshair
Anamorphic
4:1 Zoom
Image Flip
False colour
Red Line Peaking
Freeze Frame
Zebras stripes
Histogram
Waveform
Vectorscope
Audiometers
4 programmable hotkeys
3D LUT import
SMPTE Colour Bars
