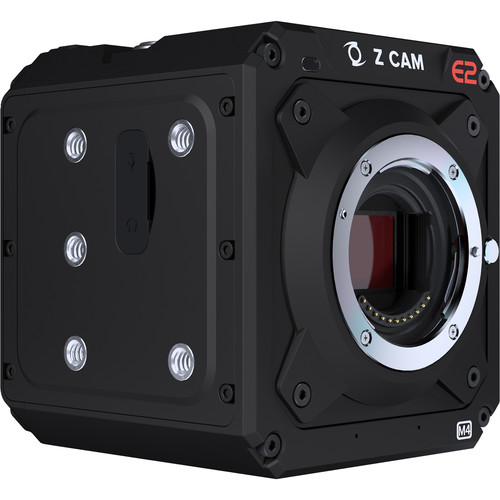

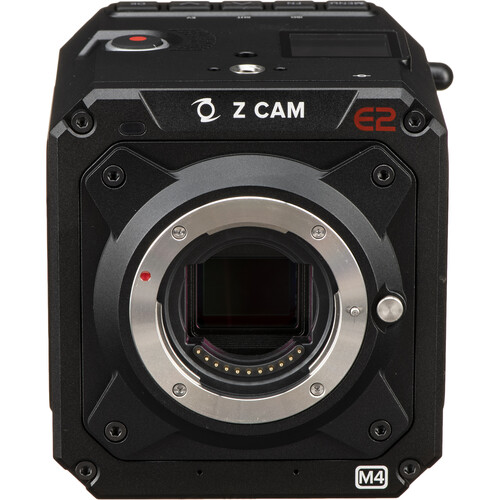

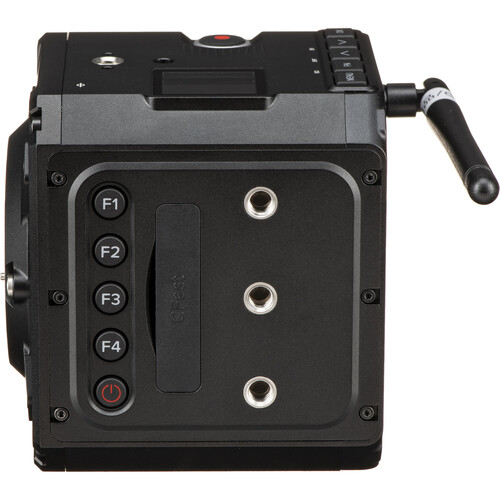

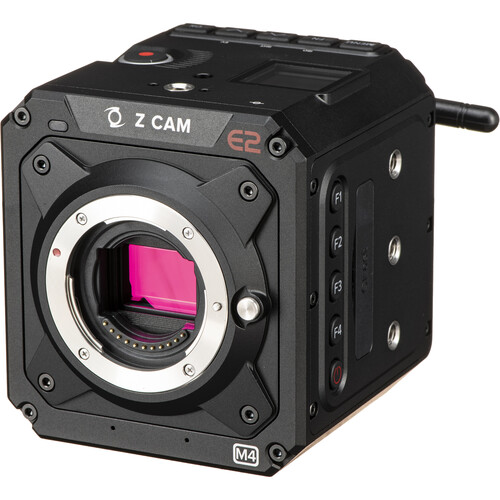

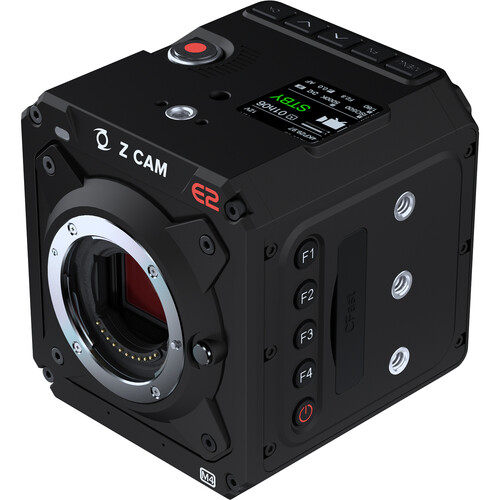

Z CAM E2-M4 Cine Camera – MFT

OVERVIEW
The Z Cam E2-M4 Cinematic Camera is the ultimate tool for capturing stunning 4K Ultra HD footage. With its 4/3″ WDR CMOS sensor and 13~15 stops of dynamic range (16 WDR Enabled), this camera delivers exceptional image quality and cinematic results.

Equipped with DCI and UHD 4K up to 120 fps, the Z Cam E2-M4 allows for smooth and detailed footage, even in fast-paced environments. And with 10-bit colour recording and support for ProRes, you have endless possibilities for post-production editing.

But the features don’t stop there. The Z Cam E2-M4 also offers gigabit ethernet for data, control, and live streaming, making it a versatile camera for any production setup. And with the iOS app, you have complete control over settings and live preview options, right at your fingertips.

Whether you’re a professional filmmaker or a content creator, the Z Cam E2-M4 is the perfect choice for capturing cinematic footage with ease. Its compact size and micro four thirds mount make it a convenient and powerful tool for any project. Download the Z Cam app now and take your filming to the next level.

Experience the power of the Z Cam E2-M4 – the ultimate 4K Ultra HD Cinematic Camera with Micro Four Thirds mount. Get yours today and elevate your filmmaking game.

SUMMARY
Dynamic Range: 13 Stops (Z-Log)
Native ISO: ISO 500
Lens Mount: Inter-Changeable MFT
Recording Formats: ZRAW
Internal ND: No
Audio Inputs: 1x 5-Pin LEMO
Shutter: Rolling
Battery Mount / Type: Sony NP-F
Media Type: CFast 2.0
Resolution and Frame Rate: 4096×2160 @ 120fps Max
Sensor: 4/3
Video Outputs: 1 x HDMI 2.0 Type A
Weight: 0-2kg
Wi-Fi: Yes

INCLUDED IN BOX
1 x Z CAM E2-M4 Camera Unit
1 x LEMO Power Cable with D-TAP Plug
1 x D-TAP Connector
1 x Quick User Guide
1 x Warranty Card

About The Z CAM E2-M4 Cine Camera – MFT
The Z Cam E2-M4 Cinematic Camera is a 4K Ultra HD High Resolution camera. The camera comes with an iOS app for control setting and live preview options, and gigabit ethernet for data, control and live streaming. It has 13~15 stops of dynamic range (16 WDR Enabled) and its 4K @120fps, 10-bit colour for endless high quality shooting.

Z Cam App

Z Cam is a mobile application for camera live preview and control through Wi-Fi / USB cable connection. It can control the camera to start/stop recording and adjust the camera settings, also it has advanced features on camera live preview. It can be downloaded from Apple App Store.

Camera Features
Sensor Type 4/3″ WDR CMOS Sensor
Sensor Size 17.3 x 13 mm
Effective Pixels 10.28M
Dynamic Range 13 Stops (ZLog) / 16 Stops (with WDR activated)

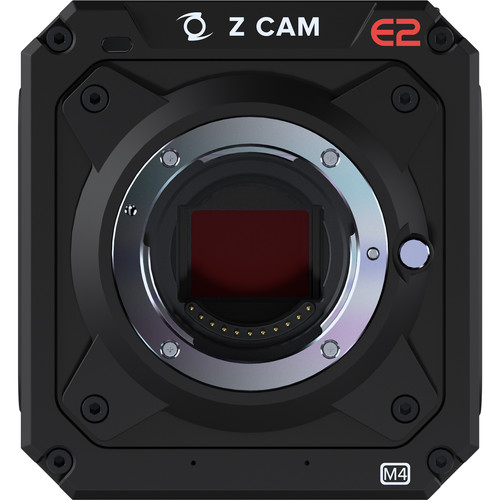

Lens Mount Interchangeable Micro Four Thirds
Microphone Built-in Stereo Microphone
Recording
Video System NTSC / PAL / CINEMA
Video Format 4096 x 2160 @ 59.94 / 50 / 29.97 / 25 / 24 / 23.98 fps
3840 x 2160 @ 59.94 / 50 / 29.97 / 25 / 24 / 23.98 fps
3696 x 2772 @ 59.94 / 50 / 29.97 / 25 / 24 / 23.98 fps
1920 x 1080 @ 59.94 / 50 / 29.97 / 25 / 24 fps
Max Variable Frame Rate 120 fps for 4096 x 2160
120 fps for 3840 x 2160
59.94 fps for 3696 x 2772
240 fps for 1920 x 1080
Max Bit Rate 230 Mbps for 4096 x 2160
230 Mbps for 3840 x 2160
230 Mbps for 3696 x 2772
200 Mbps for 1920 x 1080
Colour Bit Depth 12 bit (ProRes RAW & ZRAW), 10 bit (H.265) / 8 bit (H.264)
Video Encoder ProRes 4:2:2 HQ, ProRes 4:2:2, ProRes 4:2:2 LT, ProRes RAW
H.264 high profile / H.265 main 10 profile
Audio Format 24-bit 48 kHz
Audio Encoder AAC / PCM (for MOV only)
File Format MOV / MP4 / ProRes RAW / ZRAW
Record Mode Video / Time Lapse Video
ISO Auto, Manual (160 ~ 25600 / 80 ~ 12800 with WDR activated),
Native ISO: 500 / 2500 (250 / 1250 with WDR activated)
Shutter Shutter Speed: Auto, Manual (up to 1/8000”) or Shutter Angle:
Auto, Manual (11.25° ~ 360°)
White Balance Auto, Preset, Manual (2300K ~ 7500K)
Focus Mode MF / AF / CAF
Image Brightness / Contrast / Saturation / Sharpness
LUT Rec.709 / ZLog / FLAT
Audio Audio In / Audio Out Level
Time Code Current Time / Manual Input
Storage
Media CFAST 2.0
File System exFAT

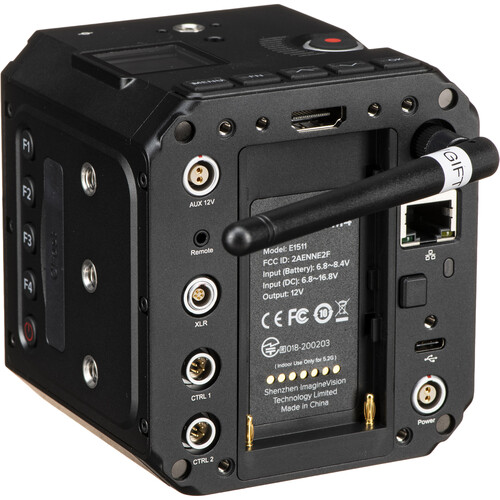

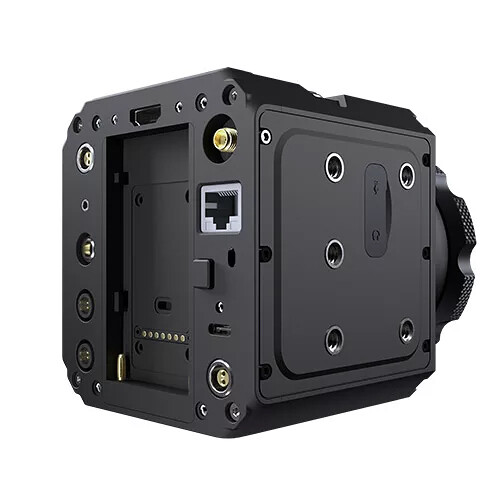

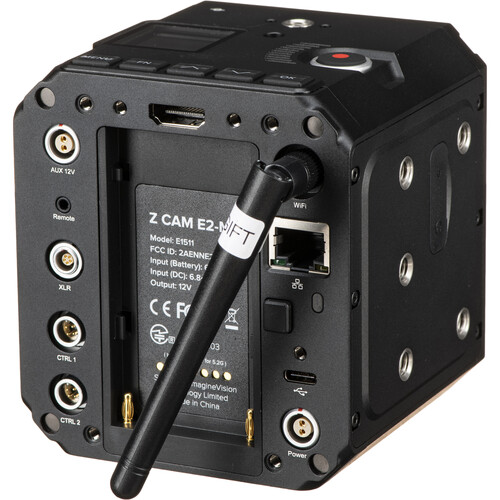

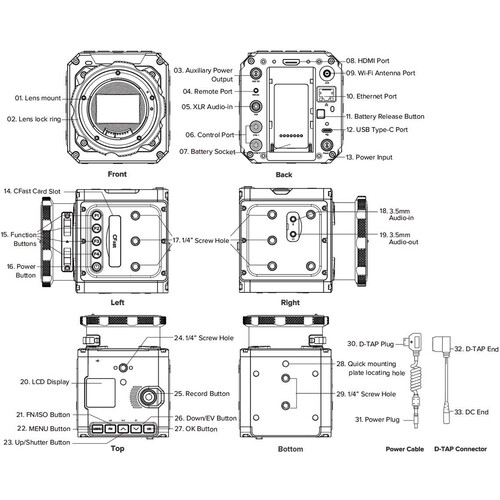

Connectivity
HDMI HDMI 2.0 Type A (video output up to C4K @60fps)
USB USB 3.0 Type C for for data transfer / storage
COM DB-9 connector, supports RS-232
Remote Control 2.5 mm jack socket (Sony LANC compatible)
Audio-in 3.5 mm stereo jack socket for active microphone only,
or 5-pin LEMO port for dual channel XLR microphone
(requires additional XLR audio connector)
Audio-out 3.5 mm stereo jack socket
Wi-Fi 802.11n, 2.4G with external antenna port
Ethernet Gigabit Ethernet port for control, setting & live streaming
Power
Battery Sony NP-F series compatible (Battery not included)
External Power Supply DC 12V 5A (2-pin LEMO socket), with LEMO
connector
Physical
Material Aluminium Alloy
Weight 757 g (without lens)
Dimensions (W x H x D) 91.2 mm x 99.2 mm x 89.1 mm (without lens)
Environment
Storage Temperature -20 °C ~ 60 °C
Operation Temperature 0 °C ~ 40 °C

DCI and UHD 4K up to 120 fps
13~15 stop Dynamic Range (16 WDR Enabled)
10-Bit Color Recording, Supports ProRes
4/3″ WDR CMOS Sensor
Gigabit Ethernet for data, control & live streaming
iOS app for control setting & live preview
