Wooden Camera Monitor Hinge

Overview

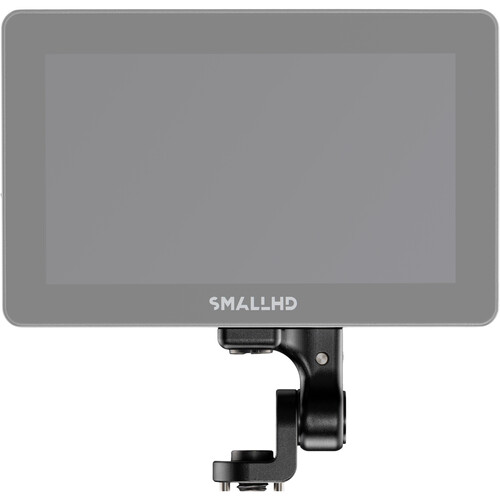

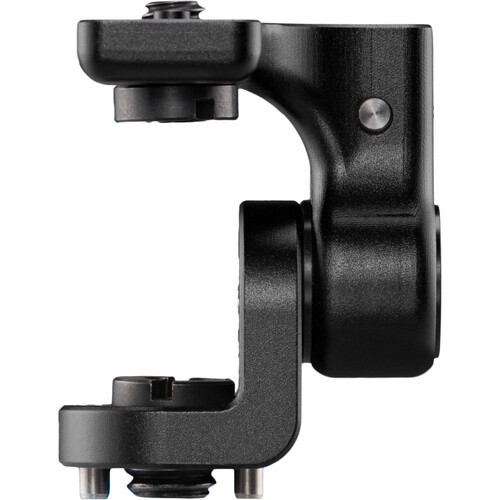

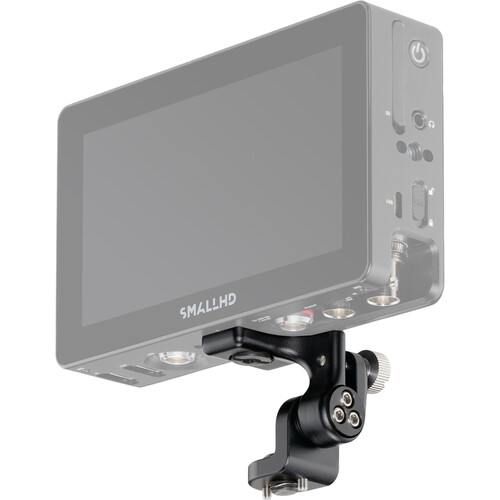

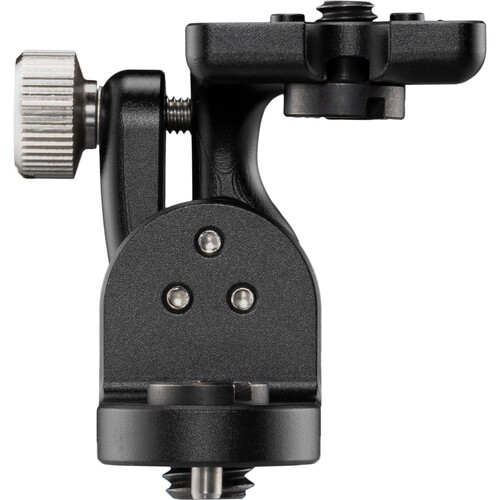

Tilting hinge for mounting on-camera monitors to any 3/8″-16 mounting point with ARRI-standard locating pins. Designed with a 180-degree tilt for shifting viewing angle. Upper attachment features a 1/4”-20 screw with standard locating pins for SmallHD monitors and includes an additional rubber pad for attaching third party monitors. Included 15mm mounting spud allows for upper attachment to be quick released and mounted onto any 15mm rod clamp. This hinge was specifically designed to align perfectly with the pinholes with any of the SmallHD Smart 5 Monitors.

Includes: 15mm Mounting Spud

About the Wooden Camera Monitor Hinge
Tilting hinge for mounting on-camera monitors to any 3/8″-16 mounting point with ARRI-standard locating pins. Designed with a 180-degree tilt for shifting viewing angle. Upper attachment features a 1/4”-20 screw with standard locating pins for SmallHD monitors and includes an additional rubber pad for attaching third party monitors. Included 15mm mounting spud allows for upper attachment to be quick released and mounted onto any 15mm rod clamp. This hinge was specifically designed to align perfectly with the pinholes with any of the SmallHD Smart 5 Monitors.

Includes:

15mm Mounting Spud

Weight 58g (0.1lbs)
Dimensions 27 x 39 x 51 mm (1 x 1 x 0.2 in)
