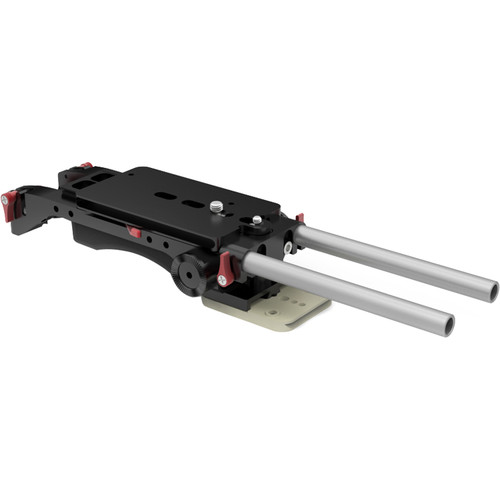

Vocas USBP-15 MKII Baseplate

Overview
The USBP-15 MKII is a height adjustable shoulder baseplate that allows any camera to be converted into a shoulder mounted camera. It features a unique quick release balancing system and is part of the Vocas Sliding System, which allows for easy switching between different setups and lenses without the use of tools. The baseplate also has height adjustable front rails, standard rosettes for mounting accessories, and magnets for attaching shoulder pads. It is compatible with various cameras and can be used with optional items such as a 15 mm clamping block and a flat base plate for tripod compatibility.

The USBP-15 MKII is compatible with a wide range of cameras, including models from ARRI, Blackmagic Design, Canon, JVC, Panasonic, Phantom, and Sony. It offers a convenient and versatile solution for shoulder mounting cameras, with its toolless adjustments and compatibility with different setups and accessories.

About the Vocas USBP-15 MKII Baseplate
15 mm Universal shoulder base plate to convert any camera into a shoulder mounted camera. The USBP-15 MKII is a height adjustable shoulder baseplate with a unique quick release balancing system to find optimal balance and stability with all kind of different camera/lens combinations.

The USBP-15 MK II is part of the Vocas Sliding system, a revolutionary new way to mount cameras to different setups, while balancing the camera optimally. The heart of this system is the universal camera adapter plate (0350-2250). This plate can be attached to almost any camera, and provides the camera with a mini dovetail connection. This allows the camera to slide on and off the various Vocas products that are based on this mini dovetail system, like the USBP-15 MKII (0350-2200), USBP-19 MKII (0350-2205), BP-19 MKII (0480-0019) and Quick release dovetail plate (0350-2220).

All of these products are equiped with a quick release lever, making it possible to find optimal balance for your setup within seconds, without using any tools. A real benefit when changing lenses a lot.
Furthermore, it’s easy to switch between 15 mm setups, 19 mm setups, drones, gimbals or any other conceivable setup that incorporates the quick release dovetail plate (0350-2220).

The height adjustable front rails of the USBP-15 MKII provide compatibility with almost any camera! Both sides of the plate are equiped with standard rosettes to mount handgrips or other standard rosette accessories. The bottom of the plate is equiped with magnets, to mount a variety of shoulder pads to multiple positions underneath the base plate. The USBP-15 MKII attaches directly to VCT-14 style quick release plates. A toolless VCT-14 rear adjustment prevents the quick release plate from having play. Fixed rear rails offer the possibility to mount any 15 mm rail accessory to the back of the camera, for instance a battery, recorder or monitor.

Optional items for the USBP-15 MKII:

The 15 mm clamping block high for USBP-15 MKII (0350-2210) is required to use the USBP-15 MKII with any RED camera. The front rails clamping mechanism will be replaced for a higher front rails clamping mechanism to get the 15 mm rails higher.
A shoulder pad wide (0350-2315) is available.
The flat base plate for USBP-15 MKII (0350-2031) makes the USBP-15 MKII compatible with tripods with ENG wedge plates. Multiple 1/4’’ and 3/8’’ threaded holes are integrated on the bottom of this plate, giving options to mount any other tripod plate to this system.

Compatible Cameras:

ARRI Alexa Mini
ARRI Amira
Blackmagic Design Cinema Camera
Blackmagic Design Production Camera 4K
Canon EOS 1D MK IV
Canon EOS 1D X
Canon EOS C100
Canon EOS C100 MKII
Canon EOS C300
Canon EOS C300 MKII
Canon EOS C500
Canon XF300 / XF305
JVC GY-HM170
JVC GY-HM200
JVC GY-LS300
Panasonic AG-AC130
Panasonic AG-AC160
Panasonic AG-DVX200
Panasonic AG-HPX250
Panasonic AJ-PX230
Panasonic AJ-PX270
Panasonic Varicam HS/35
Panasonic VariCam LT
Phantom Flex
Phantom Flex4K
Sony NEX-FS100
Sony NEX-FS700
Sony PMW-300
Sony PMW-F3
Sony PMW-F5
Sony PMW-F55
Sony PXW-FS5
Sony PXW-FS7
Sony PXW-X160
Sony PXW-X180
Sony PXW-X200
Sony PXW-X70

Rosette 2 Integrated
Shoulder pad Interchangeable, Removable, Toolless
Shoulder pad size Standard
Bars position Front , Rear
Bars system 15 mm
Height adjustable Yes
Camera mounting points 2
VCT-14 quick release compatibility Yes
Toolless VCT-14 rear adjustment Yes
Sliding System compatible Yes
Material Aluminium
Colour Black
Weight (gr.) 867

Height adjustable front 15 mm rails
Fixed rear 15 mm rails
Horizontally toolless adjustable soft rubber shoulder pad
Integrated rosette attachments
Adjustable dovetail camera plate for optimal balance
Toolless VCT-14 rear adjustment
