Vizrt Tricaster Mini 4K Bundle

Overview
The TriCaster Mini 4K is a powerful tool for creating high-quality content in Ultra HD resolution. It supports native 2160p video at 60 frames per second, making it ideal for producing programs, performances, events, and live sports. With multiple source channels, including external inputs, HDMI and NDI PTZ cameras, and more, you have the flexibility to create compelling content using a variety of compatible video sources.

In addition to its multi-source video mixing capabilities, the TriCaster Mini 4K also features built-in video players and graphics players for on-demand and automated playback. It even integrates with Skype TX software, allowing you to conduct live video calls with remote guests. Other features include recording, instant replays, live streaming to various platforms, automation, social media integration, and studio-grade video tools for perfecting your programs. With its real-time monitoring and multiviewers, as well as spectacular live chromakeying, the TriCaster Mini 4K truly takes your production to the next level.

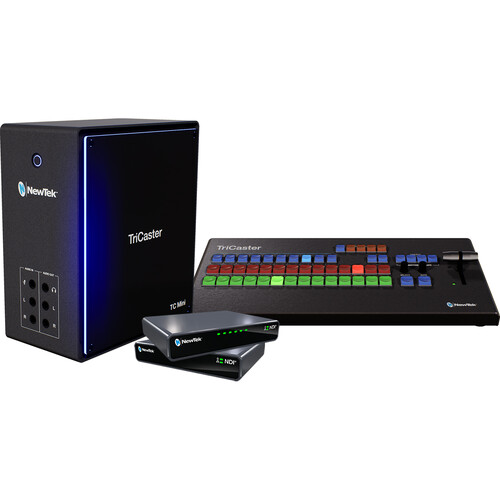

Included in box
1x Vizrt Tricaster Mini (TCM4KUHD)
1x TC Mini Control Surface (TCTCMiniCS)
2x Input Modules (NSP4KIO)
1x Travel Case

About the Vizrt Tricaster Mini 4K Bundle
Please note: New firmware version 7-3-200420 available – please check the NewTek website for downloads. New features include Live Story Creator, LivePanel, NDI® KVM, multi-channel SkypeTX and more!

NewTek TriCaster Mini 4K is an easy to use compact video creation system to let anyone with a story to tell make fun and exciting shows without needing production expertise. You don’t have to be a video expert to tell your story with television-quality results. With TriCaster Mini 4K, you can be on your way to making a show in resolutions up to UHD within minutes of opening the box.

TriCaster Mini 4K delivers you all the benefits of IP based production using NDI® for easy connectivity to media components while leveraging simple one-to-one connections to your HDMI cameras and devices without cable length limitations. No other portable video creation system offers so many easy and enjoyable ways to tell stories in such a small package for the price than TriCaster Mini 4K. The compact unit is easy to transport and set up with all the features you need to deliver high quality shows to screens and displays of any size or shape.

With NDI®, TriCaster Mini 4K connects to a wide variety of NewTek and third-party systems over IP like cameras, converters, and custom software applications.

Complete Production

Produce amazing content with hundreds of advanced production capabilities for video switching, playback, mix effects, graphics, audio mixing, virtual sets, and more.

Format Flexibility

Deliver an immersive viewing experience for programs, performances, events, and sports intermixing formats up to UHD 60p resolution.

Native IP Processing

NDI® video, audio and data transmission over IP with near-zero latency. Instant access to and seamless interchange with essentially unlimited IP sources from anywhere across the network.

Multi-Source Video Mixing

Use any combination of 8 external compatible IP video sources including cameras, mobile devices, Skype video calls, computers, streaming media, audio/video files, graphics, and more.

Multi-Destination Delivery

Produce digital media content in various aspect ratios, resolutions, and frame rates for any screen or schedule, with 4 IP live outputs, multi-channel recording, multi-platform live streaming, social media publishing, transfer to storage volumes or network locations, and more.

Recording and Replay

Record 4 channels of full-resolution video to NDI® or QuickTime® files. Archive the master cut, ingest raw camera footage for post-production, cache production extras and presentation materials for on-demand, and capture real-time highlights for instant replay.

Production Control

Build, save and use macros to combine functions, create simple customised soft panels with LivePanel™ for remote productions, and automate shows including switching and graphics using teleprompter control based on scripts with embedded commands using Live Story Creator.

Live Sound Experience

A software-based audio mixer, support for digital, analog and network audio, Talk Back communication, and stereo audio mix to the output.

Network Video Input 8 x IP video inputs via NDI®, resolution-independent
Includes 4 x direct source input connections that support Power over Ethernet (802.3af or 802.3at)
NDI inputs supporting video input in any combination of standard formats, resolutions, and frame rates*
2160p 59.94, 50, 29.97, 25
1080p: 59.94, 50, 29.97, 25
1080i: 59.94, 50
720p: 59.94, 50, 29.97, 25
SD: 59.94, 50, 25
* Available frame rates determined by session video standard (NTSC or PAL)
PTZ Support for up to 8 simultaneous Pan-Tilt-Zoom (PTZ) robotic cameras via serial and network protocols, including RS232, RS422, and IP, with integrated controls and preset system
Skype TX Native support for up to 2 simultaneous Skype® video call inputs via Skype TX software integration, including tally and Talk Back communication
Network Video Output 2 x independent IP video mix outputs via NDI® 1 x UHD video mix output
Stream Output 2 x streaming video outputs, independently configurable and controllable, with simultaneous stream archive
Monitor Outputs 4 x mini display port with HDMI output adapters
Up to 3 x of the outputs can support multiviewer displays depending on video resolution
Mix/Effect Buses (M/E) 4 x M/E buses supporting video re-entry, 1 x Mix/Effect channel per bus with support for up to 2 sources, 2 x KEY layers per bus
DSK Channels 2 x DSK channels
Media 4 x media players
2 x DDR
1 x GFX
1 x Sound
15 x media buffers
5 x animation buffers
10 x graphic buffers
Keyers Integrated LiveMatte™ chroma and luma keying technology on all source channels and M/E buses
8 x input keyers
2 x media player keyers
4 x M/E keyers
15 x buffer keyers
COMPs Integrated video composition engine on the switcher and each M/E bus to create, store, and apply layer configurations and DVE-style motion sequences
16 x configurable COMP presets per bus
Virtual Sets Integrated LiveSet™ technology with 30+ live virtual sets and box effects included
DataLink Integrated DataLink™ technology enabling real-time, automated data input from internal and external sources, including webpages, spreadsheets, scoreboards, databases, RSS feeds, watch files, XML, CSV, ASCII and more
Macros Record, store, edit and automate commands and user-configured operation sequences
Attach to control panel buttons, keyboard shortcuts, hotspots, MIDI and X-keys® buttons or GPI triggers
Attach to internal events and state changes, including audio, media playback, tally and specific switcher actions Supports control via web- based interface
Recording 4 x recording channels from either NDI® inputs or Mix outputs
Records and retains alpha channel data
4 x QuickTime® archival video recorders (Native NDI Codec for recording) – QuickTime Player not required for playback in common NLE applications
Signal Monitoring Integrated waveform and vectorscope, full field rate with digital calibration, color preview and support for ITU-R Rec. 709
Storage 1 x 1 TB SSD internal drive
Capacity varies by format, resolution and file specification
Supports recording to external storage via USB 3.0
Grab Grab full-resolution, deinterlaced still images from external video sources and outputs
Export Export video and image files to social media, FTP, local or external volumes, and network servers, with optional trans-coding
Audio Mixing Integrated multi-channel audio mixer with support for stereo audio, and DSPs
Local Audio Input 2 x embedded digital audio inputs through HDMI conversion
1 x 1/4” (6.35 mm) balanced mic
2 x 1/4” (6.35 mm) balanced line
Local Audio Output 2 x embedded digital audio outputs through HDMI conversion
2 x 1/4” (6.35 mm) balanced line 1 x 1/4” (6.35 mm) stereo headphones jack
Network Audio Native support for network audio input and output via NDI®
Embedded audio supported for all NDI® input and output video signals
Integrated support for Dante™ networking protocol from Audinate®
Notes: Requires Dante Virtual Soundcard license from Audinate (sold separately), Requires third-party virtual sound card license (sold separately)
Supported Media File Formats Import, store, and play back multimedia files, with optional transcoding, including:
Video: AVI, DV, DVCPro, DVCProHD, FLV, F4V, H.263, H.264, MOV, MKV, MJPEG, MPEG,
MP4, WMV, WebM, and more
Image: PSD, PNG, TGA, BMP, JPEG, JPEG-XR, JPEG2000, EXR, RAW, TIF, WebP, and more
Audio: AIFF, MP3, WAV, and more
Processing Video: Floating Point YCbCr +A 4:4:4:4, Audio: Floating Point, 96 kHz
Throughput Latency ~1.0-1.5 frames
Tally Support for network tally via NDI®
MIDI Support for standard MIDI protocol enabling third-party device control
NIC 2 x 1 Gigabit NIC
System Physical NewTek TriCaster Mini 4K system chassis, including adjustable handle and cable retention bracket
4.23 x 9.08 x 7.89 in (10.7 x 23.0 x 20.0 cm)
8.4 lbs (3.8 kg)

Ultra HD

Produce programs, performances, events and live sports in true UHD (Ultra HighDefinition) resolution with support for native 2160p video at 60 frames persecond.

Multi-Source Video Mixing

Viewers have their choice of devices. You should have options, too. Withmultiple source channels, including 4 external inputs, you can easily createcompelling content using any combination of compatible video sources, includingHDMI and NDI PTZ cameras, mobile devices, Skype TX video calls, computers,gaming systems, streaming media, video files, graphics, images, animations andmore.

Built-In Video Players

No recorders needed—just add your files with two built-in video players and onegraphics player for on-demand and automated playback, including autoadvancing playlists, on-cue instant replay, live-edited highlight reels, and muchmore. With responsive player controls, presets, real-time editing tools, selectabletransitions, and playlist effects, you have everything needed to make magic fromyour stored media.

Skype TX Software Integration

Conduct a live Skype video call with any remote guest, anywhere in the world.TriCaster Mini 4K features 2 channels of Skype TX software, including automaticMrix Minus for clean audio return to the caller. The studio-grade version of thepopular app, Skype TX enhances the real-time interaction with broadcast-qualityvideo and balanced audio, permitting you to present production-readyconversations, interviews, reports, and more—regardless of the caller’s device.

Recording

Capture up to 4 source channels of high-quality video as QuickTime® or NDI®files and record to storage. From archiving the master cut for your contentlibrary, to ingesting camera footage for post-production, to caching productionextras and presentation materials for on-demand, TriCaster Mini 4K easilyhandles the work of multiple professional recorders without the added expense.

Replay

Insert instant replays from up to 4 NDI or converted HDMI input recordings witha single click instantly; or cue to play on demand instead. Replays include customin/out transitions and speed control. Create basic highlight clips for instantplayback and publishing with shortcut commands

Live Streaming

Stream live to your choice of new media platforms, including user-friendlypresets for Facebook Live, Microsoft® Azure®, Periscope, Twitch, YouTube™Live, and more. Two integrated streaming encoders lets you easily deliverplatform-specific content, while opening up new sponsorship and revenueopportunities. There is also support for SRT and RTMP stream inputs

Next-Level Automation

Experience new levels of efficiency and productivity with a comprehensivemacro automation system that allows you to record, store, edit, and automateyour favorite settings and custom command sequences. You can even choose torun macros manually from any combination of compatible control interfaces—orset TriCaster Mini 4K to perform actions automatically.

Social Media Integration

Share real-time updates and on-demand content across your social mediaaccounts, uploading images and video directly to Facebook, Imgur, LinkedIn,Twitter, Vimeo, YouTube and more—complete with comments and hashtags.Plus, with integrated DataLink™, you can add posts and photos from your socialnetworks in on-screen graphics for a truly interactive experience.

Live Sound Experience

Set the tone for your production with comprehensive audio integration,including a software-based audio mixer, support for digital, analog and networkaudio, professional DSPs, fader control, VU metering, Talk Back communication,and stereo audio on master output.

Phenomenal Creative Elements

With TriCaster Mini 4K, you have the tools to turn every frame of video into anartistic masterpiece. Consider the screen a blank canvas and unleash your innerartist with multi-bus mix effects, data-driven graphics, custom animatedtransitions, a full-motion composition engine, and more. Let your imaginationrun wild.

Real-Time Monitoring and Multiviewers

See everything happening during your production with fully adjustable singlescreen or multi-screen monitoring. With up to three customisable multiviewers,configurable windows and workspace layouts, operator confidence monitors,visual indicators, and more, you can easily personalise the TriCaster Mini 4Kenvironment to your preference.

Studio-Grade Video Tools

Perfect your programs with configurable colour correction tools, objectpositioning, and smooth-edge cropping. Apply picture-in-picture effects withoptional borders. Build composite scenes from different foreground andbackground elements. And so much more.

Spectacular Live Chromakeying

Think outside the box with real-time keying so crisp and clean, your viewers willnever believe it’s green screen. With NewTek’s powerful LiveMatte™ technologybuilt into every source channel and M/E, you have 10 fully configurable keyers tocreate composite scenes from live video, graphics and virtual sets for reports,presentations, demonstrations, and more.

World-Class Live Virtual Sets

Save on studio and set expenses without sacrificing production value. Withintegrated LiveSet™ technology and more than 30 included set designs, TriCasterMini 4K can transport your talent into professionally-designed virtualenvironments, complete with multiple angles, virtual camera movements, realtime reflections, specular highlights, animated lens flares and stunningaugmented reality effects that blur the line between virtual and reality.

Interconnected Workflows

You don’t work in a silo. Neither should your equipment. With nativeintegration of innovative Network Device Interface technology, TriCaster 2 Miniconnects to the most prolific IP-based workflow in the industry right out of thebox, networking seamlessly with compatible products from hundreds ofmanufacturers and developers.

Live Story Creator

Production automation helps many types of programs get delivered efficiently and consistently. Live Story Creator lets you deliver stories easily and effortlessly without needing technical expertise. Producers and directors are not required to have in-depth knowledge of how the automation or live production systems work. Instead of the usual production system interface, users focus on the teleprompter to run programs. A complete show is created using normal text and pre-defined syntax such as headers and comments forming a script from a Microsoft Word® document that contains:

Teleprompter content, functionality, and control
Embedded triggers for NewTek TriCaster switching, transitions, keying, and clip playout operations
Cues for graphics insertion using NewTek LiveGraphics
LivePanel™

Create your own software-based control panels and operate your NewTek live production system from any compatible desktop or mobile device—anywhere on the network. Easily accessible through any Web browser or operating system, LivePanel includes production-ready control panels for remote video mixing, media playback, audio mixing, and macro automation, plus the LivePanel Builder tool to design your own custom panels geared toward your unique productions and workflows.

Compatible with workstations, laptops, tablets, and mobile devices running any current OS, to include Windows, Mac, Linux, Android, and iOS
Compatible with modern web browsers to include Google Chrome, Microsoft Edge and Internet Explorer, Mozilla Firefox, and Apple Safari
Allows remote access and control, with default panels included for primary system functions to include switching, audio mixing, media playback, and macro automation
Includes LivePanel Builder, a customisable control panel creation tool allowing the user to define grid squares as buttons or video windows; apply background colours, labels, and images; assign existing macros; record new macros; and create multiple tabs to accommodate different panels
Includes panels for DataLink™ and Keystrokes allowing for configuration of real-time, automated data feeds and manually triggered hotkeys
Includes specialty control panels for baseball, basketball, cricket, football, hockey, and soccer, plus 11 customisable sports scoreboard graphics templates Ordering Guide TriCaster Mini 4K
NDI® KVM

Access the user interface of your NewTek live production system and take control from anywhere on your network. With NDI® KVM, your workspace is simultaneously output as an interactive NDI® video source. Simply launch NDI® Studio Monitor, select the source from among the available inputs and outputs, then view or run your production remotely from any compatible computer or device. NDI KVM requires Windows 10 operating system.
