Vinten Versine 360 W/ Osprey Elite S Studio Pedestal

Overview

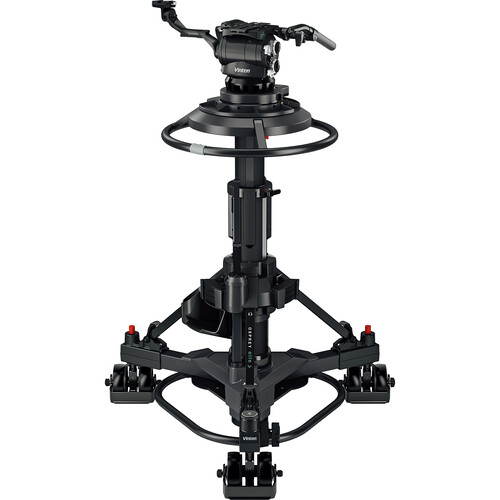

Versine 360 is a highly advanced system designed for fixed camera positions in the broadcasting industry. It features a fully steerable, perfectly balanced 2-stage studio pedestal and a compact head with a 40 kg / 88 lb payload. The system also includes a Quickfix release adaptor for easy and fast mounting of the Versine 360 head. Developed in partnership with top OB companies, Versine 360 offers extended payload, unique features, and exceptional control to meet the demands of live television.

When combined with the Osprey Elite S pedestal, the Versine 360 becomes even more versatile. The Osprey Elite S is a portable and fully-featured studio pedestal with two perfectly balanced stages, allowing for smooth movement throughout its entire height range. It also has a central steering ring for full crab and steer functionality, as well as a detachable skid for easy storage and transportation. With its ability to track talent eyelines and its adjustable cable guards, the Osprey Elite S is an ideal choice for studio use.

Included in box
Versine 360
Camera plate
Pan bar
Tiedown
Versine Arm (V4177-0001)
Additional telescopic broadcast pan bar (V4177-1012)
Osprey Elite Studio Pedestal with Quickfix adaptor (V4172-0001)
EFP Quickfit adaptor incl. wedge and 3/8″ screws (3761-3)

About the Vinten Versine 360 W/ Osprey Elite S Studio Pedestal

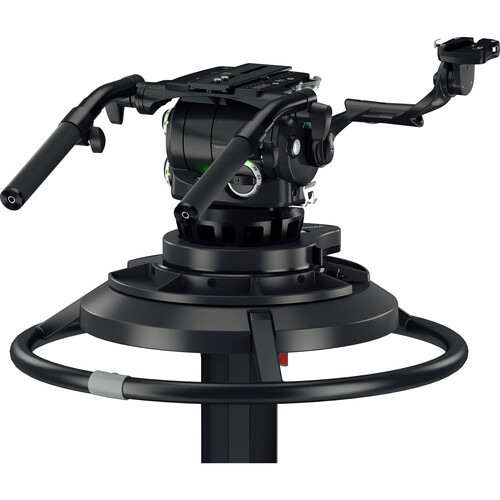

Developed in partnership with many of the world’s largest OB companies, Versine 360 is the ultimate fluid head for fixed camera positions without box lenses. Vinten engineers have worked closely with camera operators, visiting broadcasts worldwide to truly understand their needs. The result is a design with extended payload, unique features, and exceptional control, carefully engineered to solve real-world challenges and meet the exacting demands of live television.

In this system the Versine 360 is combined with an Osprey Elite S pedestal, mounting easily via the included Quickfix adaptor. The Osprey Elite S is a portable, fully-featured studio pedestal. It can track talent eyelines from a seated to standing position ‘on shot’ with its extended perfectly balanced range. With an inlet valve for any air source, Perfect Balance is easy to achieve. A detachable skid allows the pedestal to be simply broken down into two sections for easy storage and transportation. The Osprey Elite S has a selector for both single wheel and all wheel crab steering, and comes with 12.5cm / 5 inch wheels and adjustable cable guards for studio use.

Fluid Head
Payload 0 – 40kg / 0 – 88 lb
Base Versine multi-standard base with 4-bolt flat, Quickfix,
150mm and 100mm Bowl
Counterbalance Continuous and perfect
Drag TF30
Height 19.5 cm / 7.7 in
Length 15.1 cm / 5.9 in
Width 19.4 cm / 7.6 in
Weight (head only) 6.3 kg /14 lb
Weight (head + plate & pan bar) 6.8 kg / 15 lb
Camera fixing Vision sliding plate, latched lever
Tilt range +90 ̊ / -90 ̊
Platform sliding range 125 mm / 4.9 in
Levelling bubble Illuminated, high contrast
Centre lock Stainless steel push button
Pan bar Single telescopic broadcast pan bar
Pedestal
Range Osprey
Payload 80 kg
Stages 2
Perfect Balance Stages 2
On shot stroke 770 mm
Height 0.66 to 1.43 m
Head fitting Flat base
Steering Crab/Steer
Ground Clearance 20 mm
TrackingWidth 970 mm
Transit Width 800 mm
Narrow Transit Width 730 mm
Steering Ring Diameter 535 mm
Cable Guards Wheel truck mounted, individually adjusted
Trim Weights 3.50 kg
Wheel Diameter 125 mm
Wheel Locks Single-point
Quickfix Included Yes
Column Drag Yes
Crab and Steer Modes Yes
Weight 46.50 kg
System Dimensions
System max. height: 162.5 cm / 64″;
System min. height: 85.5 cm / 33.7″;
On Shot Stroke: 77 cm / 30.3″;
System weight (incl. pan bars, tiedown and camera plate): 53.7 kg / 118.4 lb

Versine 360 system with fully steerable, perfectly balanced 2-stage studio pedestal
Compact head with 40 kg / 88 lb payload, Perfect Balance and TF Drag
Osprey Elite S pedestal with two perfectly balanced stages for ‘on shot’ movement through the entire height range
Full crab and steer functionality controlled from a central steering ring
Quickfix release adaptor included for fast mounting of the Versine 360 head
