Vaxis Storm Cine 8 Monitor – V-Mount

Overview

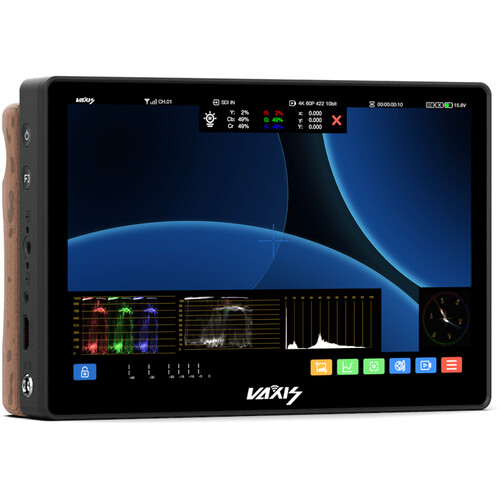

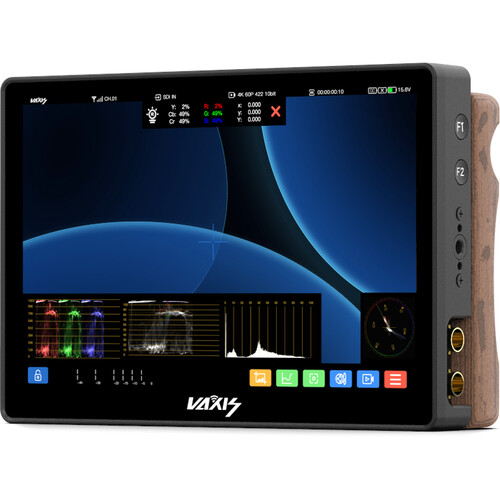

The Vaxis CINE8 is a revolutionary piece of technology, boasting an 8.9 inch touch screen with a peak brightness of 1500 nits and a screen resolution of 2560*1600. It also features Vaxis self-developed CINE OS touch operating system, making it a powerful tool for professional filmmakers, directors, and focus pullers. Additionally, it comes equipped with a built-in wireless receiver, making it compatible with all Storm series transmitters.

One of the most impressive features of the Vaxis CINE8 is its ability to monitor different signal sources on the same screen, thanks to its screen split function. It can display both wireless signals and SDI/HDMI signals simultaneously, providing a true full-frame 4K display with a super retina visual clarity of 330PPI. The CINE8 also offers advanced features such as self-developed AFCA intelligent focus assist algorithm, tetrahedral interpolation 3D-LUT for precise color adjustment, and abundant wireless control options. With its sleek design and compatibility with most batteries on the market, the Vaxis CINE8 is a must-have for any professional filmmaker.

Summary
Screen Size: 8.9 Inch
Resolution: 2560 x 1600
Inputs:
HDMI
SDI
Outputs:
HDMI
SDI
NITs: 1500
Recording: No
Included in box
1x Cine 8 Monitor
1x Flight Case
5x Blade Antenna
1x Power Cable
2x Wooden Handles
1x Tempered Glass Screen Protector

About the Vaxis Storm Cine 8 Monitor – V-Mount
Self-Developed System

Vaxis’ first and only self-developed CINE OS touch operating system.

Tetrahedral interpolation 3D-LUT

Precise colour adjustment in three-dimensional space, more efficient and accurate LUT

Picture-in-picture mode

Multi-channel access to the screen, change the picture-in-picture display position to anywhere

Comparison of screenshots and LUTS

Non-traditional image freeze, real screenshot and the real time image can be compared directly in the system.

Abundant wireless control

Have all the functions of traditional wireless video system and optimized the interaction method. Provides different antenna selection methods and integrates frequency sweep function.

Detailed monitoring instrument

Waveform graphs, vector diagrams, histograms, cover and contain everything.

True Full Frame 4K READY

Vaxis CINE8 pioneered 6G SDI image input and output, true full-frame 4K display, 303PPI super retina visual clarity.

1+1 > 2

Simultaneous monitoring of multi-angle images of AB camera, supports synchronous import of multiple signal sources, true 1+1>2

Changeable Antenna

No antenna design with attractive appearance and stable performance at the same time, also external antennas can be connected for better distance and performance.

HDR Dynamic Compensation

Optimize and adjust ordinary HDR film source frame by frame to super-quality HDR display recreating life like details.

AFCA

Self developed AFCA intelligent focus assist algorithm and dynamic video enhancement algorithm create an unprecedented sharpness of the edge of the picture and control the most convenient way to focus.

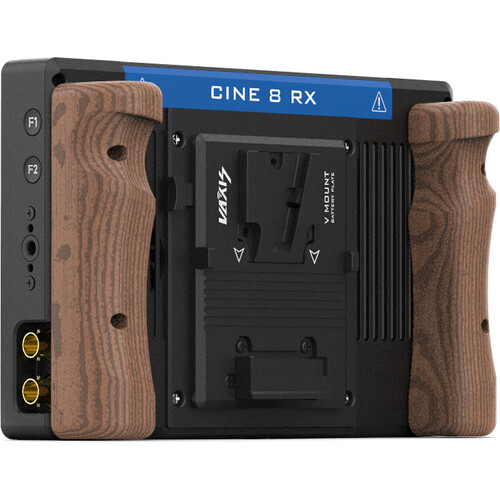

Compatible With Most Batteries

We remade the mount, which is compatible with most batteries on the market. Easy to replace.

Interface SDI input connector, SDI output connector, HDMI input connector, DC IN (2PIN Lemo connector),
TYPE-C connector, 5 antenna connectors (SMA male)
Input Voltage 8-18V DC
Power consumption ≦21W
Screen size 8.9 inches, touch screen
Screen resolution 2560*1600 pixels
Brightness 1500cd/m2
Contrast Ration 1000:1
Appearance size 216 x 144 x 28.6mm (Without battery mount)
Weight 816g
HDMI Input Video Format 4096* 2160P25/24/23.98
3840* 2160P30/29.97/25/24/23.98
1920* 1080P60/59.94/50/30/29.97/25/24/23.98
1920* 1080I60/59.94/50
1280* 720P60/59.94/50
SDI Input Video Format 422-10bit-YCbCr:
4096*2160P25/24/23.98(4K DCI)
3840*2160P30/29.97/25/24/23.98(4K UHD)
2048*1080P60/59.94/50
1920*1080P60/59.94/50/48
1280*720P60/59.94/50
422/12bit-YCbCr:
2048*1080P30/29.97/25/24/23.98
2048*1080Psf30/29.97/25/24/23.98
1920*1080P30/29.97/25/24/23.98
1920*1080Psf30/29.97/25/24/23.98
1920*1080I60/59.94/50
444-10/12bit-YCbCr/RGB:
2048*1080P30/29.97/25/24/23.98
2048*1080Psf30/29.97/25/24/23.98
1920*1080P30/29.97/25/24/23.98
1920*1080Psf30/29.97/25/24/23.98
1920*1080I60/59.94/50
WHDI Supported Video Formats 1920*1080P60/59.94/50/30/29.97/25/24/23.98
1920*1080Psf30/29.97/25/24/23.98
1920*1080I60/59.94/50
1280*720P60/59.94/50
SDI Output Video Format (DUT Output Supported) SDI Input to SDI Output:
422-10bit-YCbCr
4096*2160P25/24/23.98(4K DCI)
3840*2160P30/29.97/25/24/23.98(4K UHD)
2048*1080P60/59.94/50
1920*1080P60/59.94/50/48
1280*720P60/59.94/50
422/12bit-YCbCr
2048*1080P30/29.97/25/24/23.98
2048*1080Psf30/29.97/25/24/23.98
1920*1080P30/29.97/25/24/23.98
1920*1080Psf30/29.97/25/24/23.98
1920*1080I60/59.94/50
444-10/12bit-YCbCr/RGB
2048*1080P30/29.97/25/24/23.98
2048*1080Psf30/29.97/25/24/23.98
1920*1080P30/29.97/25/24/23.98
1920*1080Psf30/29.97/25/24/23.98
1920*1080I60/59.94/50
HDMI input to SDI output 1920*1080P60/59.94/50/30/29.97/25/24/23.98
1920*1080I60/59.94/50
1280*720P60/59.94/50
WHDI to SDI output 1920*1080P60/59.94/50/30/29.97/25/24/23.98
1920*1080Psf30/29.97/25/24/23.98
1920*1080I60/59.94/50
1280*720P60/59.94/50
Audio 3.5mm headphone output
Upgrade method USB flash drive (TYPE-C), USB flash drive file system FAT32 mode
Wireless modulation OFDM 16QAM
Wireless operating frequency 5.1G-5.9G
Wireless reception sensitivity -75dBm
Attention SDI conversion, 4K support only

Unprecedentedly powerful 8.9 inches touch screen, 1500 nit peak brightness, 2560*1600 screen resolution
Loaded with Vaxis self-developed CINE OS touch operating system
Built-in wireless receiver, compatible with all Storm series transmitters
Screen split, monitor different signal sources on the same screen. Simultaneous display of wireless signal and SDI/HDMI
6G SDI image input and output, true full-frame 4K display, 330PPI super retina visual clarity
Self-developed AFCA intelligent focus assist algorithm and dynamic video enhancement algorithm create an unprecedented sharpness of the edge of the picture and control the most convenient way to focus
Tetrahedral interpolation 3D-LUT, precise color adjustment in three-dimensional space
Abundant wireless control. Have all the functions of traditional wireless video system, and optimized the interaction method. Provides different antenna selection methods and integrates frequency sweep function
No antenna design, with attractive appearance and stable performance at the same time. Also external antennas can be connected for better distance and performance
Professional design for professional filmmakers, directors, focus pullers, etc.
