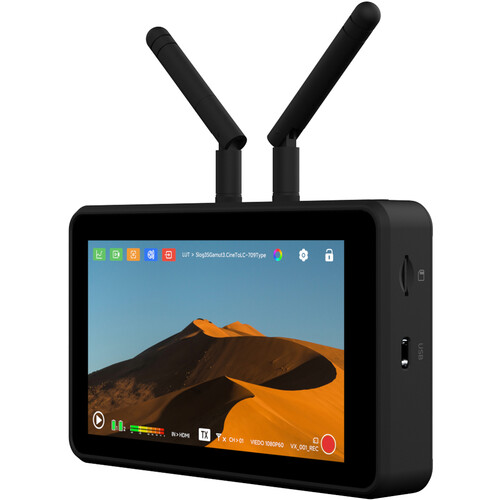

Vaxis ATOM A5 5.5in

Overview
The AllInOne Video Transmission System offers a highly integrated and new experience for users. It combines video transmission, monitoring, recording, and playback all in one device. With a 5.5″ standard pixel and super retina screen, it provides superior performance and accurate sharpening, even in bright sunlight. The peak brightness of 1000Nits, contrast ratio of 1200:1, and 401 PPI sharp display are all supported by real test data from Vaxis Lab.

With a wireless monitoring range of 150m, the system remains stable even for long distances and can meet most usage scenarios. It has a low latency of 80ms, making it almost insensitive to time-lapse and easy to follow focus. The device also has dual NPF battery slots, allowing for ultra-low power consumption. It can last up to 4.5 hours of continuous use with a single NPF-550 battery (3500mAh).

Summary
Screen Size: 5.5in
Resolution: 1920 x 1080
Inputs: DC
Outputs: DC
NITs: 1000
Recording: No
Included in box
1 x RX (or TX)
1 x HDMI cable
1 x 32G TF Card
2 x Antenna
1 x Instruction Card

About the Vaxis ATOM A5 5.5in
Highly Integration New Experience​

AllInOne Video Transmission System + Monitor Video Record + Playback Wireless Video Transmit + Receive

Superior Performance – 5.5″ Standard Pixel , Super Retina Screen

Accurate Sharpening. No fear of bright sunlight,clearly display picture details.

1000Nits – Peak Brightness
1200:1 – Contrast Ratio
401 PPI – Sharp Display
RealTest Data – From Vaxis Lab
Video Transmission System & Monitor In One

Wireless Monitoring. Video transmission system and monitor unit as one

150m Transmission Range

Extreme Distance. Remains stable for long distances,meets most usage scenarios.

Lower Latency Faster Follow Focus

80ms Delay. Almost insensitive time-lapse, easy to follow focus.

Dual NPF Battery Slots

Ultra-low Power Consumption.
A single NPF- 550 battery (3500mAh) can last up to 4.5 hours of continuous use.

Multiple Ports

Dual HDMI Ports. Support HDMI loop out, it can be used as an on-camera monitor or as a receiver to loop out signal to broadcast monitor.

Lower Latency Faster Follow Focus

80ms Delay. Almost insensitive time-lapse, easy to follow focus

Break The Chain

5.5″ Screen Adaptation. Redesigned CINE os for 5.5″ monitor screen, new interactive way, increase your creative passion.

New Menu

Graphical operation menu, better visual effects.

SCOPE

Accurate picturey restore the most realistic color and exposure.

3D-LUT

Customize 5 shortcuts up to 50 LUTs can be stored in the monitor.

PEAKING

AFCA intelligent focus assist algorithm, sharp focusing.

ZOOM

Multi-touch, two-finger zoom.

TX/RX In One

Both TX and RX. The transmit and receive states can be switched according to your existing Atom series products.

Record & Playback

Record & Playback in one. The recorded MPG-4 files are stored in the TF Card, you can instantly playback and review the footage on set. Preserved files can also be edited directly as proxy files.

Synchronous Recording

Timecode Sync. No need to manually record. When the camera starts recordinlg, both the transmitter and receiver will start recording synchronously.

Interface DC IN, DC OUT, DC IN, DC OUT, 3.5mm Audio Jack, Type- -C, 3.5mm-lR IN
Input Voltage NPF970/DC1 2V
Screen Size 5.5 Inch Touch
Screen Resolution 1920*1080 pixels
Screen Brightness 1000cd/m
Contrast Ratio 1200: 1
Input Video Format 1920*1080P 60/59.94/50/30/29.97/25/24/23.98 1920*1 080160/59.94/50 1280*720P 60/59.94/50
Output Video Format 1920*1080P60/50/30/25/24 1920*1080160/50 1280*720P60/50
Audio Format 48KHz
Net Weight 48g
Size 151*92*30.5mm
DC Max Output Power 8.5V/0.6A
Wireless Operating Frequency 5.1G- -5.8G
Transmitting Frequency 17dBm
Transmission Latency 80ms, 120ms(under interference environments)
Receiving Sensitivity -80dBm
