Upgrade Innovations Battery Mounting Block – Single

Overview
The Wireless and Battery Spigot Mounting System is a versatile solution for mounting wireless video systems and batteries. It features a 1/4-20 or 3/8-16 screw for easy mounting of wireless video systems, and a battery mounting plate that can accommodate standard battery plate adapters. For those looking to create a unique setup, additional Wireless Mounting Blocks can be stacked on top of each other to mount multiple wireless video systems to a single spigot mount and battery plate. Please note that the Battery Adapter Plates are not included and must be purchased separately.

To ensure a secure and customized fit, the Wireless Mounting Block comes with a 5/32 or 4mm Allen Key for the 1/4-20 screw and a 7/32 Allen Key for the 3/8-16 screw. Washers are also provided for both screw sizes to adjust the thread depth for shallow threaded holes. It is important to consider the dimensions of your wireless video system when stacking multiple mounting blocks, as the depth of the wireless mounting block is 1.2″ (30.48mm). For larger wireless systems, spacers and longer screws can be used to adjust the depth and distance between each mounting block. If you have any questions about your unique build, please dont hesitate to contact us.

Included in box
1 x Upgrade Innovations Wireless and Battery Spigot Mounting System – Single Wireless Mounting Block

About the Upgrade Innovations Battery Mounting Block – Single
The Wireless and Battery Spigot Mounting System can be used to mount a variety of wireless video systems and batteries. Make use of the provided 1/4-20 or 3/8-16 screw to mount a wireless video system to the wireless mounting block. The battery mounting plate can be used for mounting standard battery plate adapters (Gold Mount, V-Mount, B-Mount and Micro Mount).

For users looking to build a unique system, make use of additional Wireless Mounting Blocks to stack multiple wireless video systems to a single spigot mount and battery plate.

Battery Adapter Plates are not included.

Wireless Mounting Block
5/32 or 4mm Allen Key for 1/4-20 screw
7/32 Allen Key for 3/8-16 screw
Washers provided for both 1/4-20 and 3/8-16 screw to adjust thread depth for shallow threaded holes.

For stacking extra mounting blocks, consider the dimensions of the wireless video system. The depth of the wireless mounting block is 1.2″ (30.48mm) to accommodate the majority of wireless systems.
Note: for wireless systems that are larger, it is possible to use spacers and longer screws to adjust depth/distance between each wireless mounting block. Contact us to discuss your unique build!

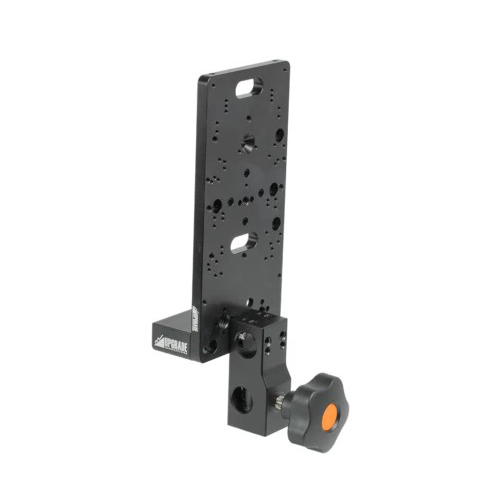

Battery Plate Mounting Patterns
The Battery Mounting Plate is outfitted with an array of M3 battery adapter plate mounting holes for Gold Mount, V-Mount, B-Mount and Micro Mount patterns.
Two lengths of M3 screws are provided as different battery adapter plates have varying counterbore depths.

Solidly built with premium 6061 aircraft aluminium, Mil-Spec anodizing & stainless steel hardware.
