UC-2120 120W USB-C/A GaN Charger – UK

Overview
Introducing the UC-2120, a mini size 120W GaN charger that offers powerful and efficient charging capabilities. With 2 USB-C and 2 USB-A ports, this charger can simultaneously charge laptops, tablets, smart devices, and even camera batteries with USB-C ports. The package also includes 2 USB-C to C cables for added convenience. For those in the UK or EU, there is the option to choose between a Type C or Type G power plug. Please note that images are for illustrative purposes only, and the charger is the only item included in the package.

The UC-2120 is made with Gallium Nitride (GaN) technology, making it smaller and lighter than traditional silicon chargers while still providing high power output and minimal heat. Each port has a maximum output of 120W, but this may be limited if multiple ports are used simultaneously. Camera batteries with USB-C ports can be charged at a fast speed, with different battery sizes taking between 2 to 4.8 hours for a full charge. Additionally, this charger is suitable for charging high power laptops and lower power devices like smartphones and earphones, making it a convenient option for travel.

Summary
Charging Ports: 4
Included in box
1x UC-2120 Charger (UK)
2x USB-C to C Cable

About the UC-2120 120W USB-C/A GaN Charger – UK
Please Note: Charger only. Images are for illustrative purposes only.

Mini Size 120W GaN Charger

UC-2120 is a GaN (Gallium Nitride) charger which is physically smaller and lighter weight than regular silicon chargers, and able to conduct far higher power and keeps heat to a minimum.

The USB-C power delivery could charge majority of Laptops, Tablets, Smart phones devices, and camera batteries with USB-C ports.

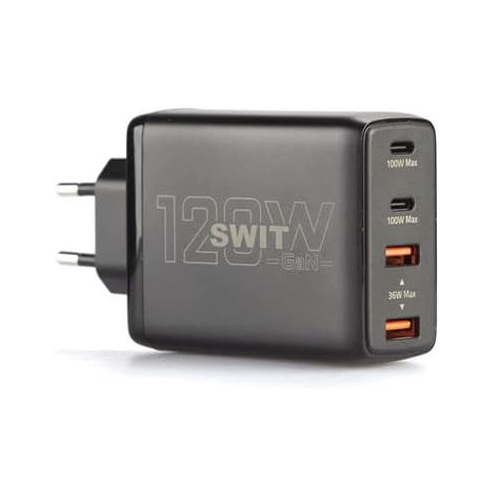

2x USB-C + 2x USB-A Simultaneous

UC-2120 GaN charger provides 2x USB-C and 2x USB-A ports simultaneous out. The power output of each port would be limited if multiple ports are used together, Max 120W output.

Single USB-C out: 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/5A; (100W) Dual USB-C out: 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/3A; (60W×2)

Charge Camera Batteries

The camera batteries with USB-C port can be charged at fast speed:

SWIT V-mount battery MINO-S70 (70Wh): 2 hours fully charge

SWIT V-mount battery MINO-S140 (140Wh): 3 hours fully charge

SWIT V-mount battery MINO-S210 (210Wh): 4.5 hours fully charge

SWIT B-mount battery HB-A290B (290Wh): 4.8 hours fully charge

SWIT BP-U battery LB-SU90C (90Wh): 2 hours fully charge

SWIT BP-A battery LB-CA90C (90Wh): 2 hours fully charge

SWIT NP-F battery LB-SF65C (65Wh): 2.5 hours fully charge

SWIT VBR59 battery LB-PD65C (65Wh): 2.5 hours fully charge

Charge Laptops and Smart Devices

You can charge high power laptops or tablets via USB-C port, and lower power smartphones, earphones by USB-A port together, for travel carrying convenience.

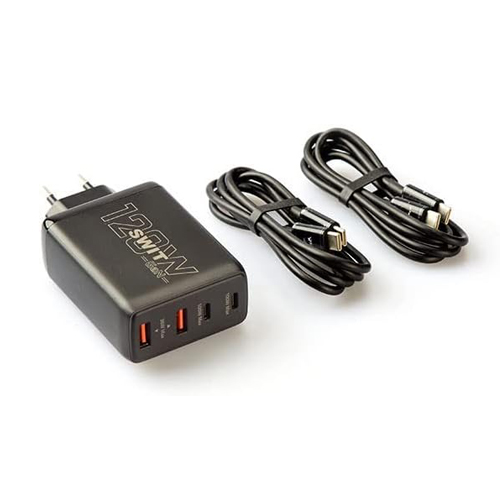

Provide 2x USB-C to C Cables

The UC-2120 package provides 2x USB-C to USB-C cables for charging 2x batteries together.

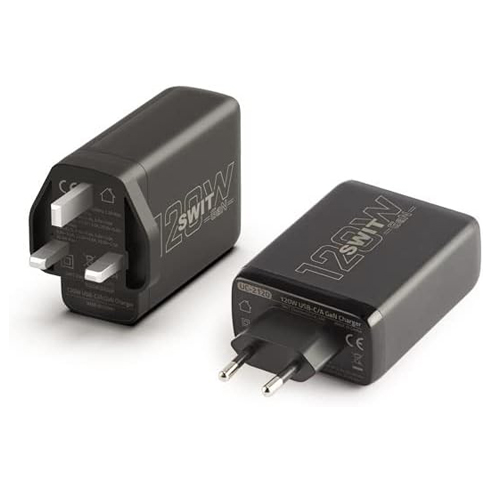

EU and UK Standard for Option

You can select EU power plug Type C or UK power plug Type G for option, CE and UKCA certificated.

Input Voltage (Nominal) AC100V-240V, 50/60Hz
Voltage Range AC 90V-264V
Output power 120W Max
USB-C only
USB-C PD 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/5A, Max 100W
USB-A only
USB-A 4.5V/5A, 5V/3A, 9V/3A, 12V/3A, 20V/1.5A, Max 36W
USB-C + C
USB-C PD 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/3A, Max 60W+60W
USB-A + A
USB-A 5V/3A, Max 15W in total
USB-C + A
USB-C PD 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/5A
USB-A 5V/3A, 9V/2A, 12V/1.5A
Max 100W+18W
USB-C + C + A
USB-C PD 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/2.25A
USB-A 5V/3A, 9V/2A, 12V/1.5A
Max 45W+45W+18W
USB-C + A + A
USB-C PD 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/5A
USB-A 5V/3A
Max 100W+15W
USB-C + C + A + A
USB-C PD 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/2.25A
USB-A 5V/3A
Max 45W+45W+15W
Working Environment Temp -10°C to 40°C; Humidity 10%RH to 90% RH
Storage Environment Temp -10°C to 85°C; Humidity 10%RH to 90% RH
Dimension 77.3mm × 60.5mm × 31.5mm
Weight Net 255g; With package 0.4kg

Mini size GaN charger
2x USB-C and 2x USB-A simultaneous
Max 120W power output
Charge camera batteries with USB-C ports
Charge Laptops, Tablets and Smart devices
Provide 2x USB-C to C cables
EU and UK standard for option
