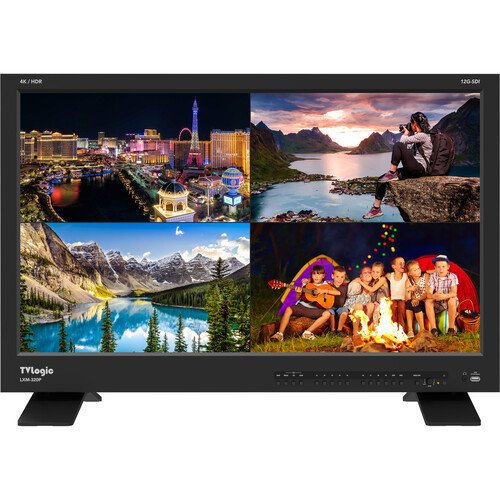

TV Logic LXM-320P 32 Inch Multi View Monitor

Overview
The LXM series of 4K/UHD monitors offer a range of high-performance functions, including HDR EOTFs, wide color gamut, 10-bit color depth, and accurate color reproduction through 3D LUT support. These monitors also feature 12G-SDI input and output, HDMI 2.0 input, and SFP input, as well as processed monitor output and various conversion output options.

The LXM monitors are designed for use in 4K live production, studio and field monitoring, editing, and post-production. They also offer advanced features such as HDR-SDR comparison, quad-view and dual-view display, custom 3D LUT import, and waveform and audio level meter capabilities. With a range of sizes and brightness levels available, the LXM series is a versatile choice for professional video monitoring needs.

Summary
Screen Size: 32 Inch

About the TV Logic LXM-320P 32 Inch Multi View Monitor
The LXM series incorporates 12G-SDI Input(x4), 12G-SDI Output(x4), Reference(External Sync) input, HDMI 2.0 Input, SFP Input(x2) & Processed Monitor Output.
These new 4K/UHD monitors feature wide viewing angle IPS panel, various HDR EOTFs, Wide color gamut, 10-bit color depth, and Accurate Color Reproduction by 3D LUT support. Additionally, the LXM series monitors offer the high-performance functions such as HDR-SDR Comparison, 12G-SDI Quad-View and Dual-View display, custom 3D LUT import, SFP to SDI conversion output, Processed monitor output, Waveform, Vector Scope, Audio Phase Meter, Firmware Update by Ethernet, and more. The LXM monitors are ideal for 4K live production, versatile monitoring in the studio and field location, edit suite and post-production.
(LXM-180P, LXM-240P, LXM-320P : 1000nits . LXM-180U: 16.7M colors, 1920 x 1080)

Main Body Dimensions
Main Body 760.3 x 485.8 x 107.1 (mm) / 29.93 x 19.12 x 4.21 (inch)
With Body 760.3 x 525.9 x 245 (mm) / 29.93 x 20.70 x 9.64 (inch)
Weight 17.4kg / 38.36lbs

HDR EOTF (PQ, HLG)
HDR vs SDR Comparison Display
Custom 3D LUT Import by USB Flash Drive
Quad-View, Picture-by-Picture Display
Various Conversion Output
Quad Link 12G Input to Single Link 12G or 3G Output
Auto Detection of SDI Payload ID
Waveform (YCbCr, RGB) / Vector Scope / Histogram
Audio Level Meter / Phase Meter / Loudness(LKFS) Meter
Image Capture & Overlay
Closed Caption (CC-608, CC-708, OP47)
Timecode Display
Marker
Focus Assist
Blue/Mono Only
H Flip, V Flip
Scan / User Aspect
Dynamic UMD / Tally
