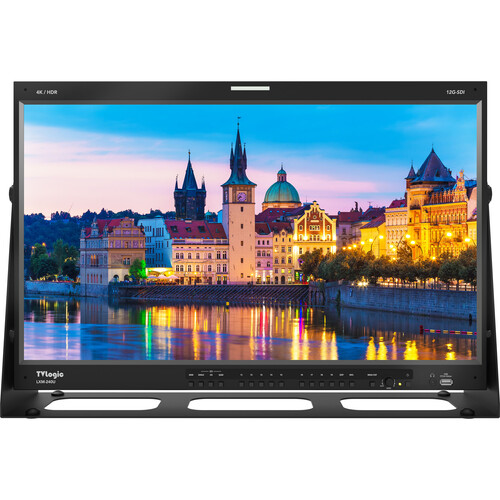

TV Logic LXM-240U 24 Inch Multi View Monitor

Overview
The LXM series of monitors offers a range of advanced features including HDR EOTF (PQ, HLG), a comparison display between HDR and SDR, and the ability to import custom 3D LUTs via USB flash drive. Other features include quad-view and picture-by-picture display, various conversion output options, and support for quad link 12G input to single link 12G or 3G output. The monitors also have auto detection of SDI payload ID, waveform, vector scope, histogram, audio level meter, phase meter, loudness (LKFS) meter, and more.

The LXM series incorporates 12G-SDI input and output, HDMI 2.0 input, SFP input, and processed monitor output. These 4K/UHD monitors have wide viewing angle IPS panels, support various HDR EOTFs, have a wide color gamut, and offer 10-bit color depth and accurate color reproduction with 3D LUT support. They are ideal for live production, studio and field monitoring, editing, and post-production. The LXM-180P, LXM-240P, and LXM-320P models have a brightness of 1000nits, while the LXM-180U model has 16.7M colors and a resolution of 1920 x 1080.

Summary
Screen Size: 24 Inch
Outputs:
12G
3G

About the TV Logic LXM-240U 24 Inch Multi View Monitor

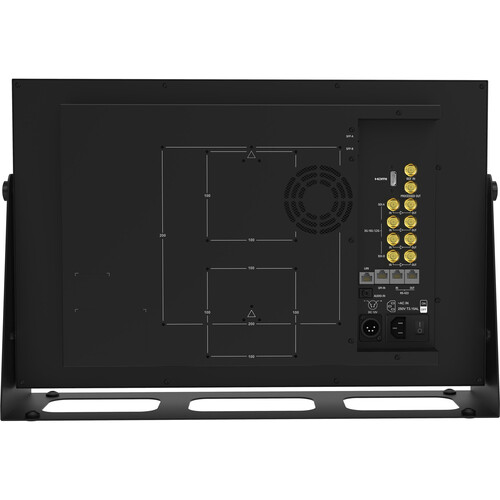

The LXM series incorporates 12G-SDI Input(x4), 12G-SDI Output(x4), Reference(External Sync) input, HDMI 2.0 Input, SFP Input(x2) & Processed Monitor Output.
These new 4K/UHD monitors feature wide viewing angle IPS panel, various HDR EOTFs, Wide color gamut, 10-bit color depth, and Accurate Color Reproduction by 3D LUT support. Additionally, the LXM series monitors offer the high-performance functions such as HDR-SDR Comparison, 12G-SDI Quad-View and Dual-View display, custom 3D LUT import, SFP to SDI conversion output, Processed monitor output, Waveform, Vector Scope, Audio Phase Meter, Firmware Update by Ethernet, and more. The LXM monitors are ideal for 4K live production, versatile monitoring in the studio and field location, edit suite and post-production.
(LXM-180P, LXM-240P, LXM-320P : 1000nits . LXM-180U: 16.7M colors, 1920 x 1080)

Main Body Dimensions
Main Body 552.5 x 360.4 x 95.9 (mm) / 21.75 x 14.18 x 3.77 (inch)
With Body 586.13 x 388.2 x 150 (mm) / 23.07 x 15.28 x 5.90 (inch)
Weight 10kg / 22.04lbs

HDR EOTF (PQ, HLG)
HDR vs SDR Comparison Display
Custom 3D LUT Import by USB Flash Drive
Quad-View, Picture-by-Picture Display
Various Conversion Output
Quad Link 12G Input to Single Link 12G or 3G Output
Auto Detection of SDI Payload ID
Waveform (YCbCr, RGB) / Vector Scope / Histogram
Audio Level Meter / Phase Meter / Loudness(LKFS) Meter
Image Capture & Overlay
Closed Caption (CC-608, CC-708, OP47)
Timecode Display
Marker
Focus Assist
Blue/Mono Only
H Flip, V Flip
Scan / User Aspect
Dynamic UMD / Tally
