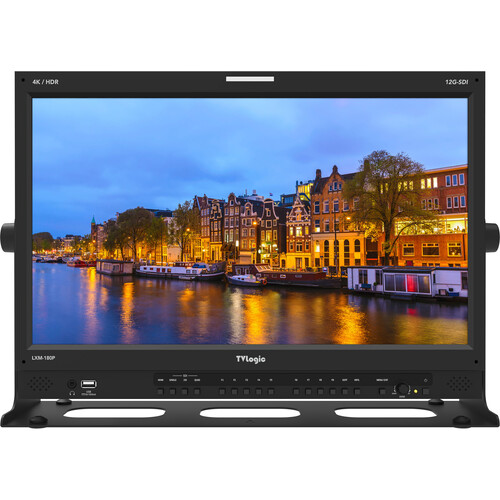

Tv Logic LXM-180P Multi View Monitor

Overview
The LXM series of monitors offers a variety of advanced features, including support for various HDR EOTFs such as PQ and HLG, as well as a comparison display between HDR and SDR content. Users can also import custom 3D LUTs via USB flash drive and utilize quad-view and picture-by-picture display options. The LXM series also offers various conversion outputs, including the ability to convert quad link 12G inputs to single link 12G or 3G outputs. Other features include waveform, vector scope, and histogram displays, as well as audio level and phase meters, and the ability to capture and overlay images. Closed captioning, timecode display, markers, focus assist, and blue/mono only modes are also available.

The LXM series monitors are equipped with 12G-SDI inputs and outputs, HDMI 2.0 input, SFP inputs, and a processed monitor output. They feature a wide viewing angle IPS panel, wide color gamut, 10-bit color depth, and accurate color reproduction through 3D LUT support. These high-performance monitors are ideal for 4K live production, versatile monitoring in both studio and field locations, and post-production work. The LXM-180U model offers 16.7 million colors and a resolution of 1920 x 1080, while the LXM-180P, LXM-240P, and LXM-320P models have a brightness of 1000 nits.

Summary
Screen Size: 18.4 inch
Inputs: 12G
Outputs:
12G
3G
Included in box
AC Power Cord
Stand

About the Tv Logic LXM-180P Multi View Monitor

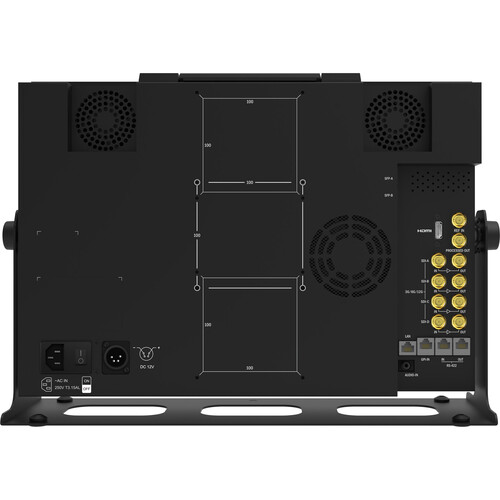

The LXM series incorporates 12G-SDI Input(x4), 12G-SDI Output(x4), Reference(External Sync) input, HDMI 2.0 Input, SFP Input(x2) & Processed Monitor Output.These new 4K/UHD monitors feature wide viewing angle IPS panel, various HDR EOTFs, Wide color gamut, 10-bit color depth, and Accurate Color Reproduction by 3D LUT support. Additionally, the LXM series monitors offer the high-performance functions such as HDR-SDR Comparison, 12G-SDI Quad-View and Dual-View display, custom 3D LUT import, SFP to SDI conversion output, Processed monitor output, Waveform, Vector Scope, Audio Phase Meter, Firmware Update by Ethernet, and more. The LXM monitors are ideal for 4K live production, versatile monitoring in the studio and field location, edit suite and post-production.

(LXM-180P, LXM-240P, LXM-320P : 1000nits . LXM-180U: 16.7M colors, 1920 x 1080)

Main Body Dimensions
Main Body 442.5 x 309 x 91.8 (mm) / 17.42 x 12.16 x 3.61 (inch)
With Body 489.3 x 332.8 x 137.5 (mm) / 19.26 x 13.1 x 5.41 (inch)
Weight 7.2kg / 15.87lbs

HDR EOTF (PQ, HLG)
HDR vs SDR Comparison Display
Custom 3D LUT Import by USB Flash Drive
Quad-View, Picture-by-Picture Display
Various Conversion Output
Quad Link 12G Input to Single Link 12G or 3G Output
Auto Detection of SDI Payload ID
Waveform (YCbCr, RGB) / Vector Scope / Histogram
Audio Level Meter / Phase Meter / Loudness(LKFS) Meter
Image Capture & Overlay
Closed Caption (CC-608, CC-708, OP47)
Timecode Display
Marker
Focus Assist
Blue/Mono Only
H Flip, V Flip
Scan / User Aspect
Dynamic UMD / Tally
