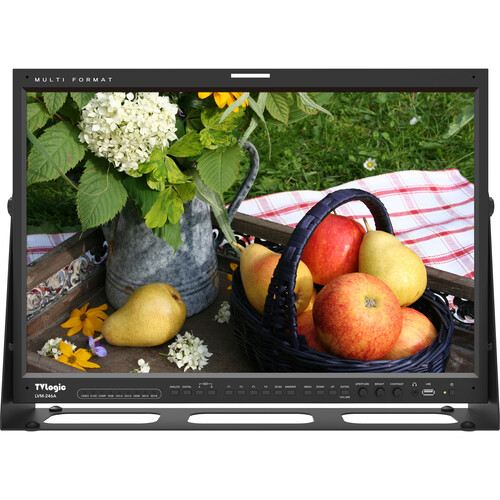

TV Logic LVM-246A 24in Full HD LCD Monitor

Overview
The 24in LCD monitor has a full HD resolution of 1920 x 1200, providing a clear and detailed display. It also features a waveform and vectorscope, as well as a 16-channel audio level meter for precise audio monitoring. Other useful tools include focus assist, markers, timecode display, and dynamic UMD for customizable on-screen information. The monitor also has options for blue/mono only display, H/V delay, and luma (Y) zone check for accurate color and brightness analysis. Additionally, it offers various scan modes, closed caption support for both CEA-608 and CEA-708 standards, and a tally function for live production environments.

With 2 3G/HD/SD-SDI inputs and a loop out, as well as HDMI and component/composite inputs and outputs, this monitor is versatile and can be used in various settings. Its 10-bit video processing ensures high-quality images, while the range error and user aspect functions allow for precise adjustments. This monitor is a reliable and comprehensive tool for professional video monitoring needs.

Summary
Screen Size: 24 Inch
Resolution: 1920 x 1200
Inputs:
BNC
HDMI
Outputs: BNC
NITs: 600
Included in box
1x Monitor
1x AC Power Cord
1x Table Stand

About the TV Logic LVM-246A 24in Full HD LCD Monitor
24in 1920 x 1200 LCD Monitor, 600nit, 2X 3G/HD/SD-SDI inputs with one loop out, HDMI In, Component/Composite In/Out, 10-bit Video Processing, Waveform/Vector Scope, Closed Caption : CEA-608/708 (SDI), Focus Assist, Embedded Audio Level Meter (16ch)

Size 24in
Resolution 1920 x 1200 (16:10)
Pixel Pitch 0.27(H) x 0.27(V) mm
Colour Depth 16.7M Colours (True 8bit)
Viewing Angle 178°(H) / 178°(V)
Luminance of white 600nits
Contrast Ratio 1000:1
Display Area 518.4(H) x 324.0(V) mm

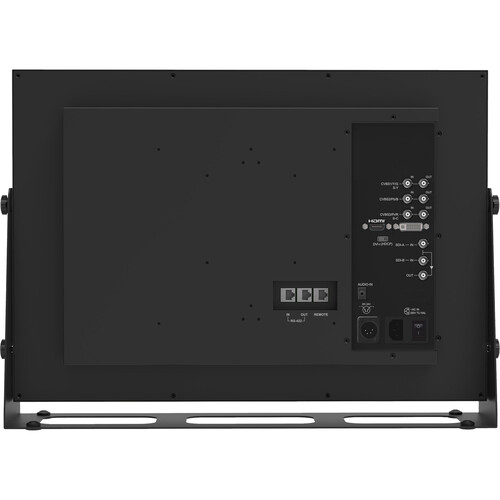

Input
2 x BNC SDI A/B Channel Input
1 x HDMI HDMI Input
3 x BNC Analog Video Input
1 x DVI-I DVI-IN
Output
1 x BNC SDI Channel (Active Through Out)
3 x BNC Analog Video Output
Input Signal
3G-SDI 2.970Gb/s
HD-SDI 1.485Gb/s
SD-SDI 270 Mb/s
HDMI 1080p(60)/1080i(60)/720p(60)/480p(60)/576p(50)
Analog Composite
DVI VESA/IBM Modes
SDI Input Signal Formats
SMPTE-425M-A/B 1080p (60/59.94/50/30/29.97/25/24/23.98/30sF
/29.97sF/25sF/24sF/23.98sF)
1080i (60/59.94/50)
SMPTE-274M 1080i (60/59.94/50)
1080p (30/29.97/25/24/24sF/23.98/23.98sF)
SMPTE-296M 720p (60/59.94/50)
SMPTE-260M 1035i (60/59.94)
SMPTE-125M 480i (59.94)
ITU-R BT.656 576i (50)
Audio In Embedded Audio / Analog Stereo (Phone Jack)
Audio Out Internal Speaker (Mixed Mono)
/ Analog Stereo (Phone Jack)
Power DC 12~24V / AC100~240V(50~60Hz)
Power Consumption (Approx.) 115W
Dimensions
Main Body 552.5 x 389 x 95.9 (mm) / 21.75 x 15.31 x 3.77 (inch)
With Stand 586.1 x 416.8 x 150 (mm) / 23.07 x 16.4 x 5.9 (inch)
Weight 10.8kg / 23.8lbs

24in Full HD Resolution (1920 x 1200)
Waveform / Vectorscope
16ch Audio Level Meter
Focus Assist
Marker
Timecode Display
Dynamic UMD
Blue/Mono Only
H/V Delay
Luma(Y’) Zone Check
Range Error
User Aspect
Various Scan Modes
Closed Caption (CC-608, CC-708)
Tally
