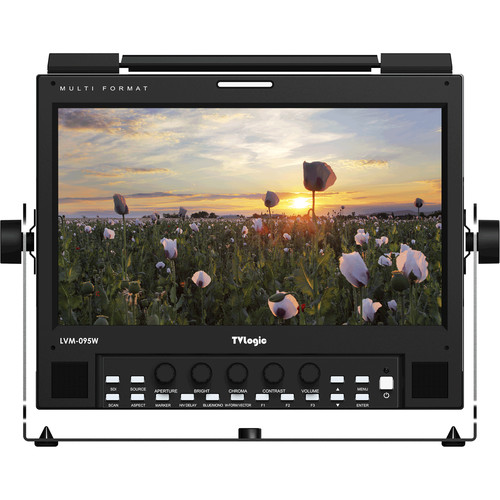

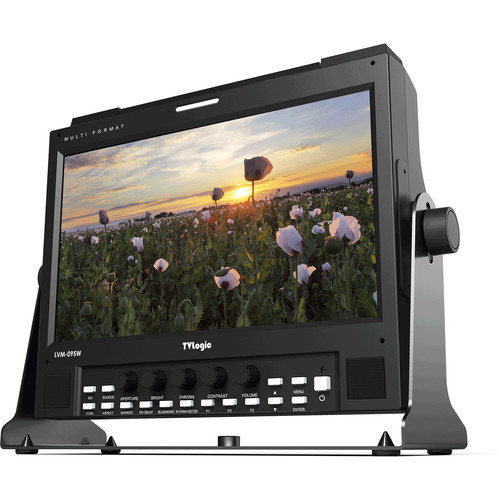

TV Logic LVM-095W-N 9in HD Monitor

Overview
The LVM-095W-N is TVLogics newest addition to their line of displays, boasting a 9″ screen with full HD resolution of 1920×1080. Not only does it provide clear and crisp images, but it also has a wide viewing angle of 176 degrees, making it suitable for various viewing positions. This display is also versatile, with compatibility for multiple image sources such as 3G HD/SD-SDI and HDMI. Additionally, the LVM-095W-N is designed for efficiency and cost-effectiveness, featuring an aluminum construction for a lightweight body and a built-in V-Mount.

One of the standout features of the LVM-095W-N is its upgraded FHD panel, which offers accurate color reproduction that meets HDTV standards. This ensures that the display delivers high-quality, true-to-life colors for a superior viewing experience. With its powerful features and impressive picture quality, the LVM-095W-N is a top choice for those in need of a reliable and top-performing display.

Summary
Screen Size: 9 Inch
Resolution: 1920 x 1080
Inputs:
BNC
HDMI
Outputs: BNC
Recording: No

About the TV Logic LVM-095W-N 9in HD Monitor
The LVM-095W-N the new 9″ released from TVLogic displays full HD resolution of 1920×1080. It also corresponds with a wide range of image sources (3G HD/SD-SDI, HDMI) and provides a wide viewing angle (176 degrees). For maximized efficiency and economic feasibility, LVM-095W-N is constructed from aluminum for an extra-light body weight and a holds a built-in V-Mount. Upgraded with new FHD panel with accurate color reproduction capability that exactly meets the HDTV standards, LVM-095W-N gives super clear picture quality with powerful features.

Size 9″
Resolution 1920 X 1080 (16 : 9)
Pixe Pitch 0.1035mm
Colour Depth 16.7M
Viewing Angle 176°(H) / 176°(V)
Luminance 400cd/m2
Contrast Ratio 750:1
Display Area 199(H) x 112(V) mm
Main Body 223 x 175 x 60 (mm) / 8.78 x 6.89 x 2.36 (inch)
With stand 260 x 194.2 x 90 (mm) / 10.24 x 7.65 x 3.54 (inch)
Weight 2.1Kg / 4.63lbs
Input
2 X BNC 3G-SDI A/B Channel Input
1 X HDMI HDMI Input
Output
1 X BNC Analog Output (Composite)
1 X BNC 3G-SDI Output
Audio
Audio In Embedded Audio/Analog Stereo (Phone Jack)
Audio Out Analog Stereo (Phone Jack), Internal Speaker(Mono)
