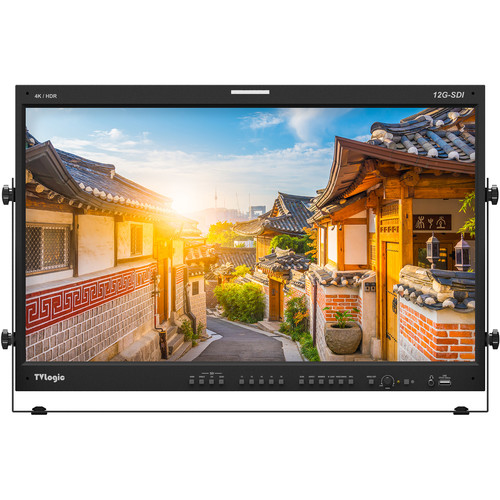

TV Logic LUM-242H 24in Monitor

Overview
The LUM-242H is a professional 24-inch monitor that supports various advanced features. It has a native UHD resolution of 3840 x 2160 and a wide colour gamut that covers up to 95% of DCI-P3. With a peak luminance of 1500 nits, it provides accurate and true HDR monitoring. It also has a high contrast ratio of 1000:1 and a 10-bit colour depth. The monitor supports 12G-SDI single link with 4 BNC input connectors and an HDMI 2.0 input.

One of the key highlights of LUM-242H is its fast colour standard switching speed of only 1 second, which is a significant improvement from the previous 5 seconds. This allows for quick and seamless changes in colour values. With its high-quality HDR support and precise colour reproduction, the LUM-242H is an ideal choice for professional use.

Summary
Screen Size: 24 Inch
Resolution: 3840 x 2160
Inputs:
12G-SDI
3G-SDI
HDMI
Outputs:
3G-SDI
HD-SDI
Recording: No
Included in box
1x LUM-242H Monitor
1x AC Power cable
1x Stand

About the TV Logic LUM-242H 24in Monitor
The LUM-242H is a 24-inch monitor with UHD resolution (3840 x 2160), high luminance up to 1,500cd/m², a 10-bit colour depth, high contrast ratio of 1,000: 1 and wide viewing angle. The LUM-242H support various standard colour gamuts including 95% DCI-P3 coverage. It supports 12G-SDI signal with 4 BNC input connectors (2 for 12G-SDI and 2 for 3G-SDI) and an HDMI 2.0. input.

High Quality HDR

LUM-242H supports maximum luminance of 1500nits for HDR and with 95% DCI-P3 coverage and true UHD resolution, LUM-242H reproduces true-to-life colour and clear details.

Fast Colour Standard Switching Speed – 1 second

Switching speed had improved from 5 seconds to 1 second when changing colour values.

Display
Size 24 inch
Resolution 3840 x 2160 (16:9)
Pixel Pitch 0.137mm
Colour Depth 1.07B
Viewing Angle 178°(H) / 178°(V)
Luminance 150cd/m2
Contrast Ratio 1,000:1
Display Area 527(H) X 296(V) mm
Input
4 X BNC 3G-SDI A/B/C/D Channel Input
4 X BNC 12G-SDI A/B Channel Input, 3G-SDI C/D Channel Input
1 X HDMI HDMI Input
Output
4 X BNC 3G-SDI A/B/C/D Channel Output
4 X BNC HD SDI A/B/C/D Channel Output
Audio
Audio In Embedded Audio/Analog Stereo (Phone Jack)
FPGA Functions 1:1 Pixel Mapping Modes for SD/HD, 3G-SDI Level A/B, Audio Level Meter Display, Blue Only, Focus Assist, H/V Delay, Key Lock, Luma(Y’) Zone Check, Marker, Max Brightness On/Off, Mono, Range Error, Time Code Display, UMD, User Aspect, Various Scan Modes, Waveform/Vector, SingleMode
Closed Caption CC-608 ANC, CC-608 LINE 21, CC-708
Calibration TV Logic Colour Calibration Utility, 3D LUT & Adjustable Gamma, 3rd Party 3D LUT Import
Other Functions
REMOTE GPI (RJ45)
REMOTE TVLogic’s specification
USB Firmware update by USB memory stick
Conversion SDI-to-SDI
Dimensions
Main Body (W x H x D) 552 x 360 x 98.5mm / 21.73 x 14.17 x 3.88in
With Stand (W x H x D) 586 x 388 x 150mm / 23.07 x 15.27 x 5.9in
Weight 10.3kg / 22.71lbs

HDR EOTFs of PQ, HLG and SLog3
12G-SDI Single Link
Native UHD resolution 3840 x 2160
Colour gamuts covers up to DCI-P3 95%
Supports peak luminance of 1500 nits for true HDR monitoring
Supports various professional features
