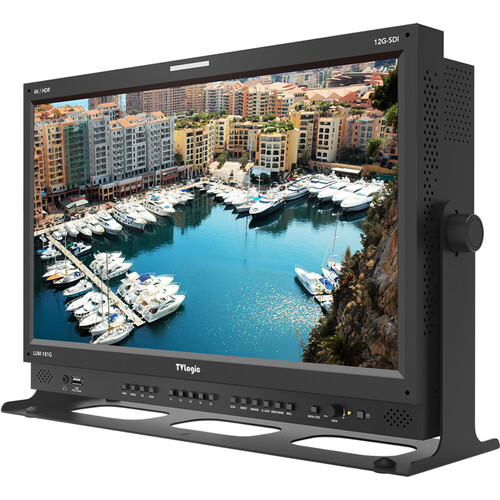

TV Logic LUM-181G 18.5in UHD Ready LCD Monitor

Overview
The 18.5 inch FHD panel on this monitor is equipped with a 4K interface, allowing for a high-quality display. It also features DR emulation for both PQ and HLG formats. With 12G-SDI single link and 3G-SDI quad-link square division, this monitor is capable of handling 4K and UHD content. It also has a waveform and vectorscope for accurate color and exposure monitoring, as well as 16-channel audio level meter, focus assist, and various aspect options. Additionally, it has features such as timecode display, UMD display, Luma(Y) zone check, tally, range error, closed captioning, H/V delay, and blue/mono only display.

This 18.5 inch 4K input-ready LCD monitor has a 1920 x 1080 LCD panel with a 1000:1 contrast ratio and 12-bit processing. It also has a brightness of 500cd/m² and multiple input options including 2x12G-SDI, 2x6G-SDI, 4x3G-SDI, and 1x HDMI 2.0 (4K 60p). The monitor also comes with built-in 3D LUTs for Rec. 709, DCI-P3, and Rec. 2020 emulation, making it suitable for HDR content as well. With its advanced features and high-quality display, this monitor is a great choice for professional video production.

Summary
Screen Size: 18.5 Inch
Resolution: 1920 x 1080
Inputs:
BNC
HDMI
Outputs: BNC
NITs: 500
Included in box
1x Monitor
1x AC Power Cord
1x Table Stand
1x Control Knob Cap
1x Carry Handle

About the TV Logic LUM-181G 18.5in UHD Ready LCD Monitor
18.5in 4K Input-Ready Monitor LCD Monitor : 1920 x 1080 LCD Panel, 1000:1 contrast ratio, 12-bit processing, 500cd/m² 2x12G-SDI, 2x6G-SDI, 4x3G-SDI in/out. 1x HDMI 2.0 (4K 60p) input. Built-in 3D LUTs for Rec. 709/DCI-P3/Rec. 2020 emulation., HDR Emulation

Size 18.5in
Resolution 1920 x 1080 (16:9)
Pixel Pitch 0.213(H) x 0.213(V) mm
Color Depth 16.7M Colours (True 8 bit)
Viewing Angle 178˚(H)/178˚(V)
Luminance of white 500nits
Contrast Ratio 1000:1
Display Area 408.96(H) x 230.04(V) mm
Input
4 x BNC 12G/6G/3G/HD-SDI A/B,
3G/HD-SDI C/D Channel Input1 x HDMI HDMI(2.0) Input
1 x HDMI HDMI(2.0) Input
Output
4 x BNC 12G/6G/3G/HD-SDI A/B, 3G/HD-SDI C/D
Channel (Active Through Out)
Input Signal
12G-SDI 12Gb/s
6G-SDI 6Gb/s
3G-SDI 2.970Gb/s
HD-SDI 1.485Gb/s
HDMI 2160p(60)/1080p(60)/1080i(60)/720p(60)/
480i(60)/480p(60)/576i(50)/576p(50)
SDI Input Signal Formats
SMPTE ST 2082 3840×2160 (60/50/30/25/24p
SMPTE ST 2081 3840×2160 (30/25/24p)
SMPTE ST 2036-1:2009 3840×2160(23.98/24/25/29.97/30/50/59.94/60p
SMPTE-425M-A/B 1080p(60/59.94/50/30/29.97/25/24/23.98
/30sF/29.97sF/25sF/24sF/23.98sF)
1080i(60/59.94/50)
SMPTE-274M 1080i (60/59.94/50)
1080p (30/29.97/25/24/24sF/23.98/23.98sF)
SMPTE-296M 720p (60/59.94/50)
SMPTE-260M 1035i (60/59.94)
SMPTE-125M 480i (59.94)
SMPTE ST 2048-2:2011 2048×1080(23,98/24/25/29.97/30p/psf,
47.95/48/50/59.94/60p)
Audio In Embedded Audio
/ Analog Stereo (Phone Jack)
Audio Out Internal Speaker(Stereo)
/ Analog Stereo(Phone Jack)
Power DC 12V /24V / AC 100~240V(50~60Hz)
Power Consumption (Approx.) TBD
Dimensions
Main Body 442.5 x 309 x 84 (mm) / 17.42 x 12.16 x 3.3 (inch)
With Stand 489.3 x 332.8 x 137.5 (mm) / 19.26 x 13.1 x 5.41 (inch)
Weight 6.52kg / 14.37lbs

18.5in FHD Panel + 4K Interface
DR Emulation (PQ, HLG)
12G-SDI Single Link 4K/UHD
3G-SDI Quad-Link Square Division & 2-S.I. 4K/UHD
Waveform / Vectorscope
16ch Audio Level Meter
Focus Assist
Marker
Timecode Display
UMD Display
Various Aspect
Luma(Y’) Zone Check
Tally
Range Error
Closed Caption (CC-608, CC-708)
H/V Delay
Blue/Mono Only
