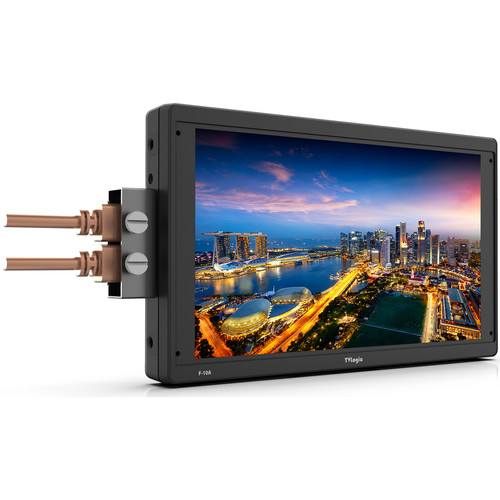

TV Logic F-10A 10” Monitor

Overview
The F-10A is a highly capable field monitor that offers excellent sharpness and a lightweight, slim body. It supports 3G/HD-SDI and HDMI 2.0 interfaces, making it versatile for various production applications. With a native resolution of 1920 x 1080, it also has HDR emulation and supports HDR EOTFs of PQ, HLG, and Slog3. Additionally, it offers useful functions and various optional accessories to enhance your filming experience.

One of the standout features of the F-10A is its 10-inch full HD display, providing a larger screen for easier viewing and access to a wide range of functions. It also supports HDMI 2.0 and HDCP 2.2 for 4K HDR 60Hz monitoring, ensuring accurate and vivid colors and details. With its compact design and professional features like Camera LUTs, Waveform/Vectorscope, and Auto Flip, the F-10A is a valuable tool for any production team.

Summary
Screen Size: 10 Inch
Resolution: 1920 x 1080
Inputs:
3G-SDI
HDMI
Outputs:
3G-SDI
HDMI
Included in box
1x F-10A monitor (Mains adaptor not included. Optional purchase, part number: 2612.0207)
1x Camera Mount
1x D-Tap Adapter (Coil Type)
1x L-Type BNC Connector

About the TV Logic F-10A 10in Monitor
The F-10A is the new 10″ field monitor with HDR capability and Full HD resolution. Designed for versatile field production applications, the F-10A offers nearly half the weight and slimmer design compared to its class size. It also supports HDMI 2.0 and HDCP 2.2 to support 4K HDR 60Hz and supports various video signals (3G HD/SD-SDI, HDMI). In addition, it provides various professional functions such as HDMI ↔ SDI conversion output, Camera LUTs, Arri Metadata Display, Waveform/Vectorscope, H/V Flip, Auto Flip, Scan and Image Overlay.

10-inch Full HD Display – A lot more functions in bigger screen!

F-10A features a large 10-inch full HD (1920 x 1080) display, while remaining powerful and light enough to take anywhere.

HDMI 2.0 and HDCP 2.2 4K HDR Monitoring

F-10A can display the 4K HDR 60Hz video so that you can see true-to-life colour and clear details.

Display
Size 10-inch
Resolution 1920 x 1080 (16:9)
Pixel Pitch 0.11475mm
Colour Depth 16.7m
Viewing Angle 160°(H) / 160°(V)
Luminance 300cd/m2
Contrast Ratio 1,000:1
Display Area (H x V) 220.32 x 123.93mm
Inputs
2x BNC 3G-SDI A/B Channel Input
1x HDMI HDMI Input
Outputs
2x BNC 3G-SDI Output
1x HDMI HDMI Output
Audio
Audio In Embedded Audio/Analog Stereo (Phone Jack)
FPGA Functions 1:1 Pixel Mapping Modes for SD/HD, 3G-SDI Level A/B, Audio Level Meter Display, Blue Only, Focus Assist, H/V Delay, H/V Flip, Key Lock, Luma(Y’) Zone Check, Marker, Max Brightness On/Off, Mono, Range Error, Time Code Display, UMD, User Aspect, Various Scan Modes, Waveform/Vector, Zoom, Camera Lut
Calibration TVLogic Colour Calibration Utility, 3D LUT & Adjustable Gamma, 3rd Party 3D LUT Import
Other functions
Remote GPI (RJ45)
USB Firmware update by USB memory stick
Ethernet Ethernet Control support
Conversion HDMI-to-HDMI, HDMI-to-SDI, SDI-to-HDMI, SDI-to-SDI
Dimensions
Main body (L x H x W) 258 x 154 x 29.8mm / 10.15 x 6.06 x 1.17in
Weight 1.3kg / 2.86lbs

Excellent sharpness
Lightweight and slim body
Supports 3G/HD-SDI and HDMI 2.0 Interfaces
Full HD – Native 1920 x 1080 resolution
HDR Emulation
HDR EOTFs of PQ, HLG and Slog3
Various optional accessories and useful functions
