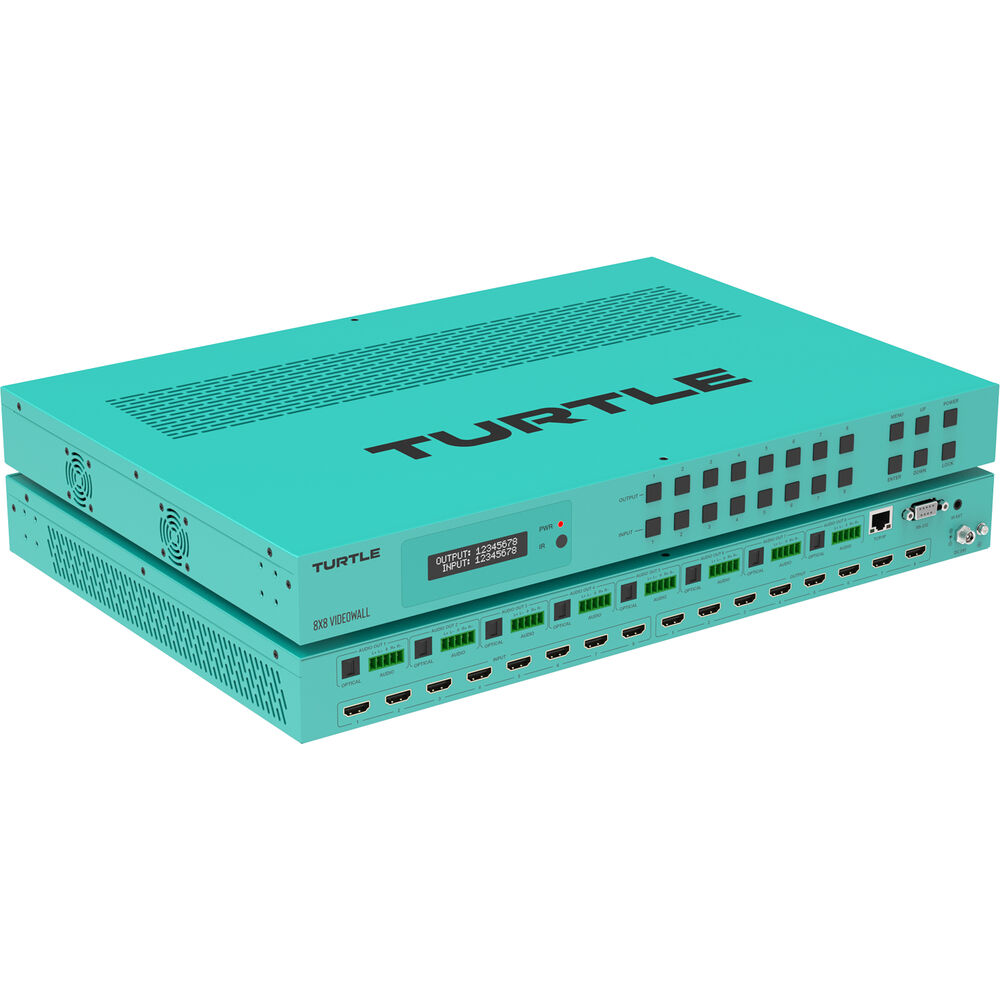

Turtle Video Wall 8×8

Overview
4K60 4:4:4. 18Gbps HDMI 2.0. 8×8 Video Wall, Matrix, Multiview all in one. Audio Embedding / De-embedding. API Support. Seamless switching. HDCP 2.2. Advanced EDID management. Easy set up via WebGUI. TAA Compliant. 5 Year Warranty.

Video Wall 8×8. The Turtle 8×8 Video Wall can be configured as a 1×4 Video Wall, 8×8 Matrix, or 1×4 Multiview. Each input and output supports up to 4K60, 4:4:4 video via HDMI 2.0 with seamless scaling, and audio embedding and de-embedding via optical or line in/out over Phonex connectors. With WebGUI controls and API integration, it’s the ultimate versatile solution for professional AV environments.

About the Turtle Video Wall 8×8
Video Wall 8×8

Is it a Video Wall?
Is it a Matrix?
Is it a Multiview?
Yes.

The Turtle 8×8 Video Wall can be configured as a 1×4 Video Wall, 8×8 Matrix, or 1×4 Multiview. Each input and output supports up to 4K60, 4:4:4 video via HDMI 2.0 with seamless scaling, and audio embedding and de-embedding via optical or line in/out over Phonex connectors. With WebGUI controls and API integration, it’s the ultimate versatile solution for professional AV environments.

4K60 4:4:4. 18Gbps HDMI 2.0.

Experience uncompromising video quality with full 4K60 resolution, HDR support, and an 18Gbps HDMI 2.0 pipeline for vibrant, crystal-clear visuals.

Video Wall, Matrix, Multiview – All in One.

Switch effortlessly between a Video Wall, 8×8 Matrix, or Multiview configurations—all in a single, powerful device tailored to your needs.

Extremely Powerful Video Wall.

The Turtle 8×8 Video Wall offers a wide range of configurations. Build impressive 4×4 walls, dynamic 2×2 grids, or large 3×3 setups. Create unique layouts like 1×8 panoramas, 2×4 grids, or combine zones for mixed displays. With support for a variety of modes, this system provides the flexibility you need for command centers, public spaces, live events, and more. All in stunning 4K60 resolution.

Dual Independent Multiview.

Two is better than one. Video Wall Display offers dual Multiview outputs each with up to 16 customizable layouts on a single screen for monitoring, presentations, or control rooms. Effortlessly switch between layouts using the WebGUI, API, or front panel controls.

8×8 Matrix.

Route any input to any output or create multiple simultaneous configurations with the robust 8×8 Matrix functionality.

Audio Matrix.

The Turtle 8×8 Video Wall features 8 L/R balanced audio outputs with an intuitive Audio Matrix mode. Easily route extracted audio by selecting outputs and assigning sources, while toggling channels on or off.

Audio Embedding / De-Embedding.

Seamlessly embed or de-embed audio as needed via the Optical or Phoenix connectors for total flexibility in any AV setup.

Seamless Switching.

Enjoy instant, lag-free switching between inputs, ensuring smooth transitions without frame loss.

Scaling.

Individually scale each source with precision, supporting resolutions up to 4K60 4:4:4 and each output has individual downscaling control.

Easy Setup via WebGUI or Front Buttons.

Set up and manage configurations effortlessly using the intuitive WebGUI, or go hands-on with the front panel controls.

API Support.

Integrate easily with third-party systems via robust API support for advanced control and automation.

HDCP 2.2.

Fully compliant with HDCP 2.2, ensuring compatibility with the latest 4K content and devices.

Advanced EDID Management.

Manage EDID with ease using 12 factory-defined settings, 2 user-defined modes, and 4 copy modes. Select the desired EDID mode or copy an EDID to an input port via the front panel, RS-232 control, or WebGUI for seamless integration and optimal compatibility.

Built tough with all metal chassis.

Mineola are all housed in an all-metal chassis for maximum ruggedness. And yes, we painted them Turtle Aqua so you know it looks cool even if mounted under a table or in a rack room where no one will ever see them.

TAA Compliant.

Turtle AV products sold in the USA are TAA compliant, meeting U.S. government standards for procurement. This ensures they can be confidently used in federal contracts, adhering to strict ethical sourcing and manufacturing regulations.

Technical
HDMI Compliance HDMI 2.0b
HDCP Compliance HDCP 2.2
Video Bandwidth 594MHz/18Gbps
Video Resolution Up to 4K@60Hz 4:4:4
Colour Space RGB, YCbCr 4:4:4 / 4:2:2. YUV 4:2:0
Colour Depth 8/10/12bit
Audio Formats
HDMI IN/OUT: LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
AUDIO Extracted: Optical Outputs: LPCM 2.0CH/Dolby/DTS 5.1CH
Balanced Analog Audio Outputs: LPCM 2CH
IR Level 5Vp-p
IR Frequency Wideband 20K-60KHz
ESD Protection IEC 61000-4-2: ±8kV (Air-gap discharge) & ±4kV (Contact discharge)
Connection
Input ports 8 × HDMI INPUT [Type A, 19-pin female]
Output ports 8 × HDMI OUTPUT [Type A, 19-pin female] 8 × OPTICAL AUDIO OUT [S/PDIF]
8 × L/R AUDIO OUT [3.5mm, 5pin Phoenix Connector]
Control ports 1 × TCP/IP [RJ45]
1 × RS-232 [D-Sub 9]
1 × IR EXT [3.5mm, Stereo Mini-jack]
Mechanical
Housing Metal Enclosure
Colour Turtle Aqua
Dimensions 440mm [W] × 300mm [D] × 44.5mm [H]
Weight 3.95kg
Power Supply Input: AC 100-240V 50/60Hz, Output: DC 24V/3.75A
(US/EU standard, CE/FCC/UL certified)
Power Consumption 70W (Max)
Operating Temperature 32 – 104°F / 0 – 40°C
Storage Temperature -4 – 140°F / -20 – 60°C
Relative Humidity 20 – 90% RH (no-condensing)
Video Resolution 4K60
HDMI Cable Length (HDMI IN / OUT) 5m/16ft
4K30
HDMI Cable Length (HDMI IN / OUT) 10m/32ft
1080P60
HDMI Cable Length (HDMI IN / OUT) 15m/50ft
