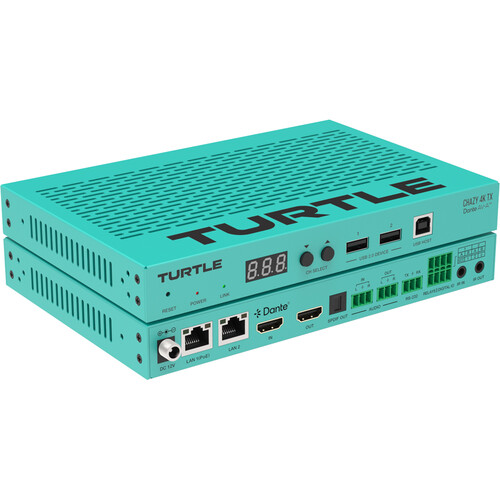

Turtle CHAZY 4K TX

Overview
Dante AV-A™ licence included with 2×2 Dante audio, 2160 60Hz 4:4:4 HDR, PoE and 12V DC, HDCP 2.2 & EDID Management, 7.1ch Dolby Atomos Audio, KVM and Video Wall up to 9×9, Dual network ports, TAA Compliant, 5 Year Warranty. The Chazy 4K Family offers a comprehensive solution for professional AV installations, combining cutting-edge technology with unmatched flexibility. Chazy 4K has 5 models in the fam: Chazy 4K Tx, Chazy 4K Rx, Chazy 4K USB-C Tx, Chazy 4K Wallplate Tx, and Chazy Control. The Chazy fam delivers 2160 60Hz 4:4:4 HDR video, Dante AV-A™ which includes a 2×2 Dante audio license, JPEG 2000, and 7.1ch Dolby Atmos audio support.

Featuring advanced capabilities like KVM, video wall configurations up to 9×9, hardware scaling, EDID management, true multicast support, and dual network ports on the Chazy Control, Chazy Tx, and Chazy Rx to keep AV and Control separated, the Chazy 4K Family is built for scalable, reliable, and high-performance installations. Fully HDCP 2.2 compliant, and TAA compliant, it’s the ultimate solution for corporate, educational, and entertainment environments. And to back all of these amazing features up, all Chazy 4K hardware comes with a 5-year warranty.

Included in box
1x Turtle CHAZY 4K TX

About the Turtle CHAZY 4K TX
Chazy 4K Family overview

The Chazy 4K Family offers a comprehensive solution for professional AV installations, combining cutting-edge technology with unmatched flexibility. Chazy 4K has 5 models in the fam: Chazy 4K Tx, Chazy 4K Rx, Chazy 4K USB-C Tx, Chazy 4K Wallplate Tx, and Chazy Control. The Chazy fam delivers 2160 60Hz 4:4:4 HDR video, Dante AV-A™ which includes a 2×2 Dante audio license, JPEG 2000, and 7.1ch Dolby Atmos audio support. Featuring advanced capabilities like KVM, video wall configurations up to 9×9, hardware scaling, EDID management, true multicast support, and dual network ports on the Chazy Control, Chazy Tx, and Chazy Rx to keep AV and Control separated, the Chazy 4K Family is built for scalable, reliable, and high-performance installations. Fully HDCP 2.2 compliant, and TAA compliant, it’s the ultimate solution for corporate, educational, and entertainment environments. And to back all of these amazing features up, all Chazy 4K hardware comes with a 5-year warranty.

Chazy 4K Tx overview

The Chazy 4K Tx is a HDMI 2.0b Dante AV-A and JPEG 2000 encoder designed for deliveringstunning 2160 60Hz 4:4:4 HDR video. The Dante AV-A license is included and ready to go,which also has 2×2 Dante audio license. Chazy 4K Tx is PoE powered and supports a widerange of audio formats including 7.1 Dolby Atomos, and features advanced capabilities likeKVM, video wall configurations up to 9×9, hardware scaling, EDID management, HDCP 2.2, true multicast support, and dual network ports keep AV and Control separated. TAAcompliant, Chazy 4K Tx also comes with a 5-year warranty.

Dante AV-A & JPEG 2000. Low latency besties.

Bridging the best of both worlds, Dante AV-A works seamlessly with Dante Controller for full routing ability, whilst JPEG 2000 is a visually lossless, super low latency video codec.

Dante AV-A included.

Chazy 4K USB-C Tx comes with the Dante AV-A licence included so there are no hidden costs and nothing left to do other than plug them in, and open up Dante Controller to start your routing.

Dante Audio. Included.

With the included Dante AV-A licence, the Chazy 4K USB-C Tx also includes 2×2 Dante Audio. Extract audio from an HDMI source and send it to external speakers via Dante’s 2×2 audio channels.

Dante AV-A in hardware. A world first.

The optional Chazy Control box takes Dante Controller a step further by building it into hardware. The benefits of this include:

No need to run any software

You can now control your entire Dante network from any device with a web browser including iPad, Tablet, Smartphone. Control from Q-SYS, Crestron, and more using the free API.

Advanced EDID Management.

The Chazy 4K USB-C Tx simplifies connections with advanced EDID management, featuring automatic detection and the ability to load custom EDID tables directly through the WebGUI.

Hardware scaler built in.

The integrated hardware enables precise resolution matching and color space conversion between sources and displays eliminating issues with unsupported formats, scaling artifacts, or mismatched color profiles.

Audio. Audio. Audio.

7.1-channel Dolby Atmos.
Dolby TrueHD.
Dolby Digital Plus.
DTS-HD Master Audio.
ARC & eARC.
SPDIF connectivity.
Analog audio return via Phoenix Connectors.

And yes, Dante 2×2 Audio licence included so you can route any of the above to 2-channel Dante and vice versa.

Networking and Security. Keep the IT team happy.

Chazy 4K USB-C Tx features 2x Ethernet ports to allow total separation of control and video and audio streams.

HTTPS and SSH offers login security, while 256-bit AES encryption makes the video and audio streams totally secure.

KVM.

Chazy 4K USB-C Tx supports independent routing of RS-232, USB KVM, and video/audio signals, enabling precise control of remote devices and peripherals. This functionality is suited for setups requiring separate management of control, data, and media streams within a unified system.

Videowall. Up to 9×9.

Chazy 4K USB-C Tx, when teamed up with other members of the Chazy fam, supports videowall configurations up to 9×9, enabling a massive 81 displays to be configured as a single display.

Monitoring.

Real-time monitoring of each device including status, uptime, and network details such as IP and MAC addresses, and live video preview.

4:4:4 HDR.

Chazy 4K family supports 4:4:4 HDR from Tx to Rx to deliver brighter highlights, deeper shadows, and true-to-life colors for unmatched visual depth.

No fans. Only Fans.

The Chazy 4K family has no fans. All models are fan-less, totally silent, and without vibration. No fans. Only Fans.

TAA Compliant

Turtle AV products are TAA compliant, meeting U.S. government standards for procurement. This ensures they can be confidently used in federal contracts, adhering to strict ethical sourcing and manufacturing regulations.

5 Year Warranty with Advance Replacement

Turtle proudly offers a 5 Year warranty on our CHAZY 4K devices. Warranty is 5 years from date of purchase and we are also proud to offer a no hassle, no questions advance replacement warranty on all our products, including the CHAZY 4K.

Technical Specifications
HDMI 2.0b compliant
HDCP 2.2 compliant
Video Bandwidth 18Gbps
Compression Codec JPEG 2000 or Dante AV-A™
Network Bandwidth 1Gbps
USB Bandwidth 480Mbps
Color Depth Input: 8/10/12-bit; Output: 8-bit
Colour Space RGB 4:4:4, YCbCr 4:4:4 / 4:2:2 / 4:2:0
HDMI Audio Formats LPCM 2.0/5.1/7.1CH, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-96/24, DTX-EX, DSD, DTS High Res, DTS-HD Master
IR Level Default 12V, Optional 5V
IR Frequency Wideband 20K – 60KHz
ESD Protection
Standard IEC 61000-4-2 ±8kV (air-gap discharge) & ±4kV (contact discharge)
Connections
Input 1x HDMI (Type A, 19-pin female), 1x L/R Audio (3-pin 3.81mm Phoenix connector)
Output 1x HDMI (Type A, 19-pin female), 1x L/R Audio (3-pin 3.81mm Phoenix connector), 1x SPDIF OUT (Optical)
Control 1x LAN (PoE IEEE 802.3af) RJ45 jack, 1x LAN RJ45 jack, 1x RS-232 (3-pin 3.81mm Phoenix connector), 1x USB 2.0 HOST (Type B, 4-pin female), 2x USB 2.0 DEVICE (Type A, 4-pin female), 2x RELAYS (3-pin 3.81mm Phoenix connector), 1x IR IN (3.5mm audio jack), 1x IR Out (3.5mm audio jack)
Mechanical Specifications
Housing Metal enclosure
Colour Turtle Aqua
Dimensions 204mm [W] x 136mm [D] x 25.5mm [H]
Weight 631g
Power Supply
Input AC100-240V 50/60Hz
Output DC 12V/2.5A
PoE IEEE 802.3af
Power Consumption 8.52W
Environmental Specifications
Operating Temperature 32 – 104° F / -20 – 60° C
Relative Humidity 20% – 90% RH (no condensing)

Dante AV-A™ & JPEG 2000
Dante AV-A™ licence included with 2×2 Dante audio
2160 60Hz 4:4:4 HDR
PoE and 12V DC
HDCP 2.2 & EDID Management
7.1ch Dolby Atomos Audio
KVM and Video Wall up to 9×9
Dual network ports
TAA Compliant
5 Year Warranty
