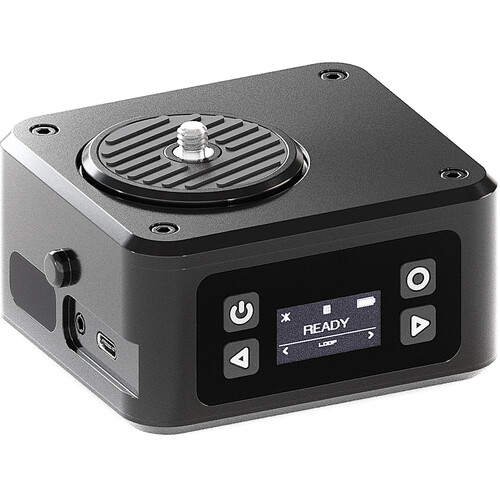

TREXO Standalone Pan/Tilt Module

Key Features
360° Motorized Pan/Tilt Module
Onboard or iOS/Android App Control
Supports Camera Rigs up to 11 lb
Use with Slider for 3-Axis Moves
Rechargeable Battery Lasts up to 6 Hours
Programmable Time-Lapse/Stop-Motion Shot
1/4″-20 Top and Bottom Mounts
Charge During Operation via USB-C

TREXO TREXO-TRS-000-0002 Overview
Create pan and/or tilt moves using your camera and the Standalone Pan/Tilt Module from TREXO. This module can be used for 3-axis horizontal and vertical moves with a separate slider or as a standalone 360° product turntable. It supports camera rigs up to 6.6 lb in pan/tilt mode and up to 11 lb in 3-axis mode. Use the OLED screen and buttons or the iOS/Android mobile app to view settings and configure pan, tilt, and time-lapse moves.

Programmable Moves

Use one or two Pan/Tilt Modules with a separately available slider to create simple or advanced moves.
The Bluetooth 4.0 TREXO Slider app features time-lapse, stop motion, and turntable modes plus the ability to save presets

OLED Screen
Use the OLED screen and navigational buttons to create moves and monitor the module settings.

Versatile Power
Power the module for up to six hours using the internal rechargeable battery or use a long-lasting power bank and the USB-C port.
The battery can be charged while in use via the USB-C port.

Mounting
The Pan/Tilt Module features a bottom 1/4″-20 thread for mounting on sliders, tripods, and other supports and a 1/4″-20 mounting screw on top for your camera or head.

General
Load Capacity
Turntable Mode: 11 lb / 5 kg
3-Axis Mode: 6.6 lb / 3 kg
Speed
Minimum: 0.0007°/Second
Super-Slow Mode: 0.0001°/Second
Maximum: 30°/Second
Motor
Minimum Step Size: 0.23 µm

Display
Panel Type
OLED
Display Size
Not Specified by Manufacturer
Touchscreen
No

Inputs/Outputs
USB I/O
1 x USB-C (Power Only) Female Input
Shutter
2.5 mm Port

Wireless
Wireless
Bluetooth 4.0
*Built-In
Mobile App Compatible
Yes: Android & iOS
App Name: Trexo Slider
Functionality: Adjust Settings, Remote Control, Setup
Compatible Operating Systems
Android 6.0 or Later
iOS 11.O or Later

Battery
Battery Capacity
3250 mAh
Maximum Battery Life
6 Hours

Physical
Mounting
1x 1/4″-20 Screw
1x 1/4″-20 Thead
Color
Black
Material of Construction
CNC-Machined Aluminum, Stainless Steel, Steel
Dimensions
3.3 x 3 x 2.2″ / 85 x 76 x 55 mm
Weight
Not Specified by Manufacturer

Packaging Info
Package Weight
1.955 lb
Box Dimensions (LxWxH)
6.6 x 6 x 3.3″

In the Box
TREXO Standalone Pan/Tilt Module
Limited 1-Year Manufacturer Warranty
