Tilta Tiltaing Smart VM Battery Baseplate – ARCA

Overview

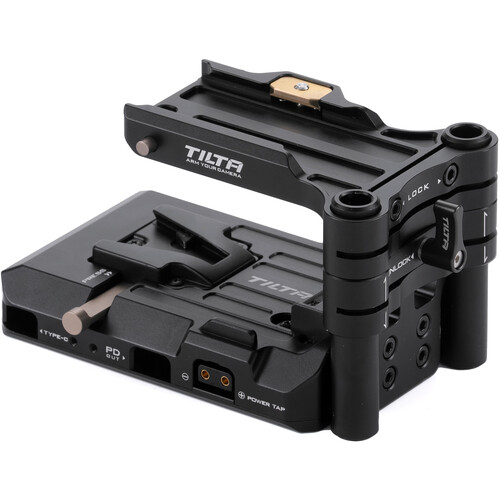

This Smart V-Mount Battery Baseplate is specifically designed for the Canon R5C Camera Cage and other ARCA systems. It features (2) 14.8V P-Tap ports, (1) 5V USB-C port, and (1) 60W USB-C PD port, which allows it to adjust the voltage to match the camera or accessories it is connected to. This ensures peace of mind and eliminates the need for regulated power cables.

The baseplate has an adjustable height to accommodate various sized V-Mount batteries and can also be mounted via rods using the 15mm LWS standard spacing. It also comes with a USB-C cable clamp attachment to secure the connection between the battery plate and the camera or cage. This baseplate is compatible with the Full Camera Cage for Canon R5C and any camera body or cage that can connect to the included ARCA standard quick release plate.

Summary
Battery Mount: V Mount
Included in box
1x Tiltaing Smart V Mount Battery Baseplate (ARCA) – Black
2x Aluminium Rod 15*80mm – Black（4.01.12.0EST20037.00)
1x ARCA Quick Release Plate for Smart Battery Baseplate – Black
1x USB-C Cable Clamp Attachment for Smart Battery Baseplate – Black
1x 2.5mm Hex Key
1x USB-C Power Cable (60cm)

About the Tilta Tiltaing Smart VM Battery Baseplate – ARCA

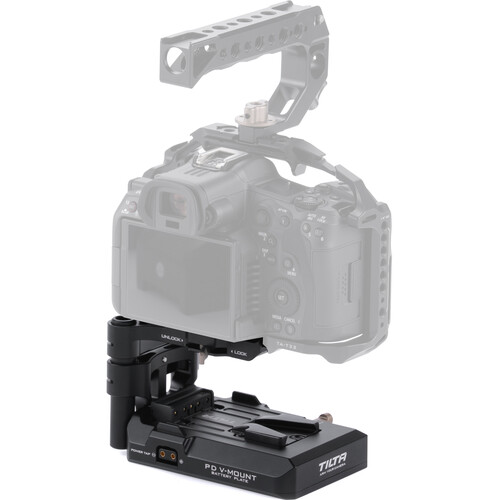

This Smart V-Mount Battery Baseplate connects to camera cages via an ARCA connection and is specifically designed for our Canon R5C Camera Cage.

This battery plate features (2) 14.8V P-Tap Ports, (1) 5V USB-C Port, and (1) 60W USB-C PD Port which allows the battery plate to adjust the voltage needed for the accessory it is connected to.

This creates peace of mind when powering your camera or accessories as you will not need to solely rely on regulated power cables to ensure your device is receiving the correct voltage.

The height of this battery baseplate can be adjusted to accommodate different sized V-Mount batteries and the 15mm LWS Standard spacing means the battery plate can be removed from the baseplate and mounted via rods if needed.

The included USB-C Cable Clamp Attachment allows you to secure the included USB-C Cable to the Battery Plate, creating a more secure connection and preventing accidental disconnection.

This baseplate is compatible with our Full Camera Cage for Canon R5C and any camera body or cage that can connect to the included ARCA Standard Quick Release Plate.

Dimensions: 6 x 4 x 4 inches
Weight: 1.3 lbs
Materials: Aluminium-alloy, Stainless Steel
Colour: Black

USB-C PD – Adjusts Voltage to Match Camera or Accessories
POWER OUTPUTS – (2) 14.8V P-Tap Ports, (1) 5V USB-C Port, (1) 60W USB-C PD Port
COMPATIBLE – with Canon R5C Camera Cage and other ARCA Systems
ADJUSTABLE BASE – Accommodates Various Sized V-Mount Batteries
15MM LWS – Spacing Supports Rod Mounting
