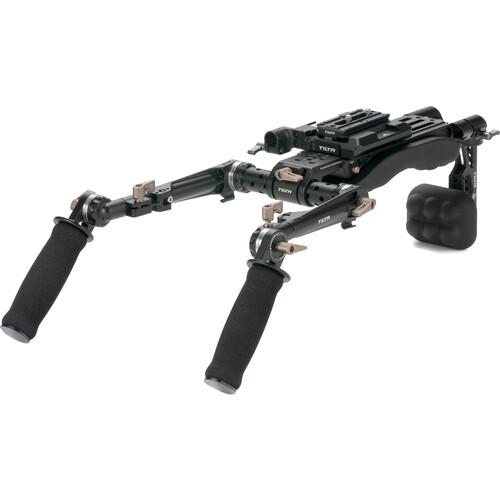

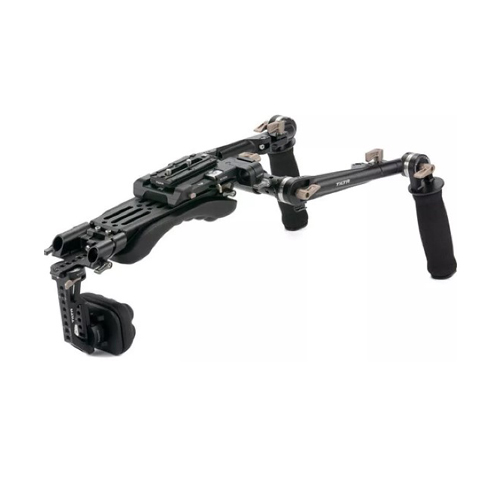

Tilta Tiltaing Shoulder Rig – Black

Overview
There are two configuration options available for the DJI Ronin 4D, which are highly durable and compact. The new operating experience includes a custom-made handle extension and monitor extension cable for mounting the DJI Ronin 4D. The handle extension mounting base is equipped with ARRI standard rosettes for secure mounting and is compatible with the DJI Ronin 4D handrip. To protect the ports from damage, the coiled cable and cable clamp limit cable tension. Additionally, there is a custom-made USB-C cable for connecting the DJI Ronin 4D monitor.

The Tiltaing Lightweight Shoulder Rig is a perfect solution for lightweight handheld camera operating. It features a Dual Manfrotto ARCA Baseplate, which allows for the use of either systems quick release plate or the included two in one Manfrotto/ARCA Plate. The adjustable, extendable rosette arms allow for comfortable operating in multiple positions, and the included velcro shoulder pad can be independently adjusted for perfect balance on the shoulder. The rig also has a 15mm LWS Rod Mount for supporting 15mm rods and rod-based accessories, as well as a NATO Rail for mounting counter weights and other accessories. The NATO Adapter can also be used to mount the included Rear Shoulder Support Pad for additional support while operating.

Included in box
1x Tilta Lightweight Shoulder Rig – Black （2.01.TA-LSR-B）
2x Rosette Handgrip for Lightweight Shoulder Rig – Black （2.01.TA-LSR-RH-B）
1x ARCA Manfrotto Dual Baseplate for Lightweight Shoulder Rig – Black （2.01.TA-LSR-BSP-B）
1x ARCA Manfrotto Dual Quick Release Plate for Lightweight Shoulder Rig – Black （2.01.TA-LSR-DQRP-B）
1x Soft Carrying Case for Lightweight Shoulder Rig （2.01.TA-LSR-SCC）

About the Tilta Tiltaing Shoulder Rig – Black
Arm your camera with the Tiltaing Lightweight Shoulder Rig! This is the perfect solution for lightweight handheld camera operating.

The base of this rig features a Dual Manfrotto ARCA Baseplate, which allows you to use either systems’ quick release plate or the included two in one Manfrotto/ARCA Plate.

This baseplate can be removed when needed and other baseplates or dovetails can be mounted to the main plate of this shoulder rig via 1/4″-20 threads.

When used with our Tilta Standard Dovetail, you are able to quickly transition from a tripod or other support system to this lightweight shoulder rig.

The included velcro shoulder pad can also be independently adjusted, allowing for perfect balance of the camera system on your shoulder.

The adjustable, extendable rosette arms allow you to fine tune the length and angle of the hand grips for more comfortable operating in multiple positions.

The extension arms feature a 1/4″-20 thread on the arm itself, allowing you to mount an external monitor via an articulating arm.

This allows you to mount your monitor further away from you than would be possible when mounting to the camera body directly.

The rosette bridge can rotate a full 360 degrees, allowing for this rig to be quickly folded up for transportation.

The 15mm LWS Rod Mount on the back of the rig supports a pair of 15mm rods and rod based accessories such as various battery plates.

This helps provide power for your camera and balances the rig on your shoulder as it can shift the center of gravity closer to you which makes it easier and more comfortable to operate for longer periods of time.

In the back of the rig you will also find a NATO Rail which allows you to mount counter weights and other accessories via a small adapter plate.

This NATO Adapter will also allow you to mount the included Rear Shoulder Support Pad which provides an additional point of contact when operating.

Product Name Lightweight Shoulder Rig
SKU TA-LSR
Materials Aviation Grade Aluminium Alloy
Weight 1.7kg
Dimensions 16.5 x 5.5 x 14 inches
Colour Black

Two Configuration Options – Highly Durable. Compact and Lightweight.
New Operating Experience – Custom-made handle extension and monitor extension cable for mounting DJI Ronin 4D.
Handle Extension Mounting Base – ARRI standard rosettes for secure mounting. Compatible with the DJI Ronin 4D handrip.
Protection – The coiled cable and cable clamp limit cable tension and protect the ports from damage.
Custom-Made USB-C Cable – Custom-made USB-C cable for connecting DJI Ronin 4D Monitor.
