Tilta Nucleus-M Lens Control Kit

Overview
Please note that this product does not include batteries. The Nucleus-M Lens Control System allows for wireless connections between the hand unit or handles and the motors, eliminating the need for an MDR. This system is versatile and can be used with a gimbal, shoulder mount system, or even a drone. It has a wireless range of 1 1⁄4 miles, making it ideal for long distance drone work.

The Nucleus-M is compatible with both DSLR and cinema cameras, providing full control of focus, iris, and zoom for cinema lenses. Each motor is equipped with a wireless module, allowing for signal reception without the need for an MDR. This not only saves space, but also reduces set-up time. Overall, the Nucleus-M Lens Control System offers convenience and flexibility for various filming setups.

Summary
Battery Capacity: 18650 3000mAh ( for FIZ controller, handrip)
Battery Run Time: 10 hrs (FIZ controller), 48 hrs (handgrips)
Range: 1000 feet / 304 metres
Rod Port Size: 15mm / 19mm
Included in box

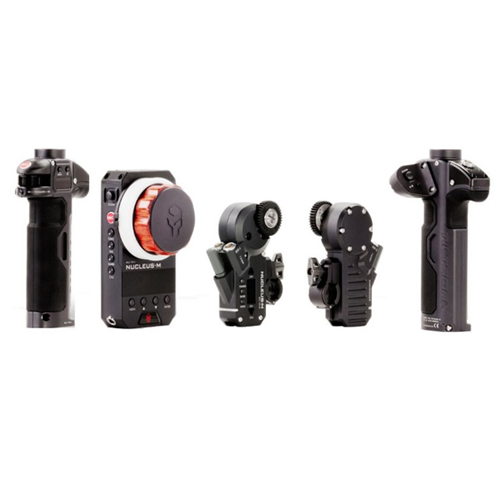

1x Wireless FIZ Hand Unit
2x Brushless Wireless Motors
1x Wireless Handle Left (Focus)
1x Wireless Handle Right (Iris, Zoom)
4x Follow Focus marking disks
1x 7-Pin to 740mm P-TAP Motor Power Cable
1x 296mm 7-Pin to 7-Pin Straight Motor Connection Cable
1x 18650 4 Slot Battery Charger
2x Handle to Arri Standard Rosette Adapter
2x Handle to Gimbal Bar Adapter (Compatible with 25mm/30mm Diameter)
1x Wireless FIZ Hand Unit Strap
1x Hard Shell Waterproof Safety Case

About the Tilta Nucleus-M Lens Control Kit
Please note: Batteries not included.

The Nucleus -M Lens Control System allows connections between the hand unit or handles to the motors which are completely wirelesses (no MDR required). It can be used with a gimbal, shoulder mount system or even a drone. The Nucleus-M features a wireless range of 1 1⁄4 miles which is ideal for long distance drone work.

This system is compatible with DSLR and cinema cameras and has full control of focus, iris and zoom for cinema lenses.

Each motor has a wireless module to receive signal without the MDR, which will help save space and set-up time

Material: Aluminium-Alloy
Stainless Steel
ABS Plastic
Rubber
Brazilian Rosewood
Weight: FIZ Hand Unit (with focus disk but no batteries): 0.972 lb
FIZ Hand Unit (with focus disk and batteries): 1.164 lb
Right Handle Grip (no batteries or adapters): 0.582 lb
Left Handle Grip (no batteries or adapters): 0.529 lb
Arri Rosette Male to Handle Grip Adapter: 0.161 lb
25mm/30mm Gimbal to Handle Grip Adapter: 0.099 lb
Motor (no rail adapter): 0.419 lb
Motor with 15mm rail adapter: 0.496 lb
Motor with 19mm rail adapter: 0.487 lb
Motor Dimensions: Length/Height: 4 1/2 Inches
Width: 2 3/4 Inches (motor plus rail adapter)
Width: 2 5/8 Inches (ports to tip of gear)
Width: 3 2/8 Inches (end to end furthest points)
Depth: 5/8 Inches (rail mount section)
Depth: 3/4 Inch (base section)
Depth: 1 3/8 Inches (motor section)
