Tilta Nucleus-M Kit 4

Overview
The Nucleus-M FIZ unit offers a wireless connection between the hand unit and two hand grips to the motor, eliminating the need for an MDR unit. This allows for a more compact setup and quicker setup time. The motor can be powered directly from the cameras battery and can be daisy-chained to run multiple motors. There is no limit on the number of motors that can be attached per channel. The motor is compatible with standard 15mm and 19mm rods, and can calibrate lenses without hard stops. It is also compatible with the Gravity G1 Handheld Gimbal.

The Nucleus-M Brushless Wireless Follow Focus Motor has its own built-in motor drive that communicates directly with the hand unit and hand grips. This eliminates the need for a separate MDR and allows for automatic or manual calibration of lenses without hard stops. The motor can easily clamp onto 19mm or 15mm rods and has a standard gear size for cinema lenses. It has a torque of 2.5N·m at 14.8V and can be powered with a P-tap power cable and daisy-chained to other motors. The Nucleus-M offers full control of focus, iris, and zoom on either the hand unit or hand grips, with the option to split control between them.

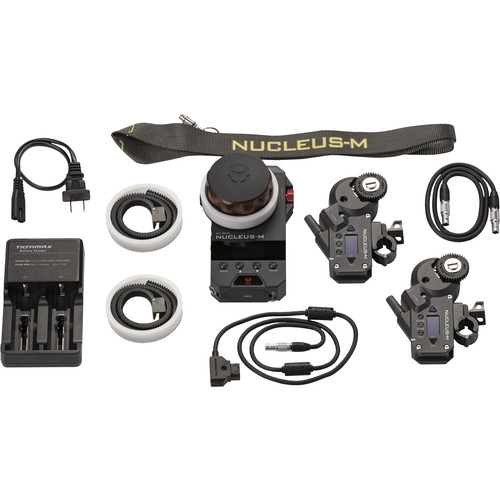

Included in box
1x WLC-T03-FIZ Nucleus M FIZ unit
2x WLC-T03-M Nucleus M Motor
2x FR-T03 Photographic Lens Follow Focus Gear Ring
1x WLC-T03-PTAP-7P Nucleus-M P-TAP to 7-Pin Motor Power Cable
1x WLC-T03-7P-S-55 Nucleus-M 7-Pin to 7-Pin Motor to Motor Connection Cable (Straight) 55cm
2x WLC-T03-MD-1 Nucleus-M Follow Focus marking Disk (x1)
1x WLC-T03-LAN Nucleus-M FIZ Lanyard
1x WLC-T03-BC Nucleus M Battery Charger

About the Tilta Nucleus-M Kit 4
The Nucleus-M is a revolutionary and highly customisable 3-channel wireless lens control system. It allows you to have full control of focus, iris, and zoom on either the FIZ hand unit or between the two wireless hand grips. You can even split control of the channels between the hand unit and wireless hand grips as you see fit with the push of a button.

FIZ HAND UNIT
Colour Gunmetal Grey
Weight (no batteries) 0.44 kg
NUCLEUS-M BRUSHLESS MOTOR
Colour Gunmetal Grey
Weight
Motor (no rail adapter) 0.19kg (0.419lb)
Motor with 15mm rail adapter 0.22kg (0.496lb)
Motor with 19mm rail adapter 0.22kg (0.487lb)
Length/Height 11.43cm (4 1/2 Inches)
Width 6.9cm (2 3/4 Inches) (motor plus rail adapter)
Width 6.66cm (2 5/8 Inches) (ports to tip of gear)
Width 8.25cm(3 2/8 Inches) (end to end furthest points)
Depth 1.5cm (5/8 Inches) (rail mount section)
Depth 1.9cm (3/4 Inch) (base section)
Depth 3.49cm(1 3/8 Inches) (motor section)
Materials Aluminium-Alloy
Stainless Steel
ABS Plastic

Nucleus-M FIZ Unit

Connections between the FIZ hand unit and the two hand grips to the motor are completely wireless.
There is no MDR unit. Each motor has a wireless module that can receive a signal without the MDR, saving space and setup time.
A single motor can be powered directly from the camera’s battery though a 7-Pin to P-TAP cable then daisy chained via 7-Pin to 7-Pin cable to run additional motors.
There is no limit on the amount of motors an operator can attach per channel.
0.8 mod, 35-tooth, 32 pitch gear with a face width of 10mm
Motors can reach calibration on lenses with out hard stops
Motors fit standard 15mm and 19mm Rods
Compatible with the Gravity G1 Handheld Gimbal
Nucleus-M Brushless Wireless Follow Focus Motor

This brushless wireless follow focus motor has its own built-in motor drive that communicates directly with the hand unit and hand grips.
This negates the need to mount a separate MDR to your rig, allowing for a more compact camera setup and a quicker setup time.
Simply set the motor and Nucleus-M hand unit/hand grips to the same channel and you will have full control. The motor allows for automatic calibration of the lens as well as manual calibration if you are using lenses that don’t have hard end stops at close focus and infinity.
The motor is designed to clamp onto 19mm or 15mm rods (with the included rod bushings).
This clamp-on design allows you to easily attach and detach the motor without needing to remove any other accessory from your setup.
Every motor has a 0.8 mod, 35 tooth, 32 pitch gear attached, which is the standard gear size for cinema lenses.
The torque of the Nucleus-M Motor at 14.8V is 2.5N·m To power the motor and subsequent motors, only one power port on your camera rig needs to be used.
Simply plug the P-tap power cable into one of the motors and then daisy chain power to the rest of the motors with the short 7-pin to 7-pin cables.
