Tilta Nucleus-M Kit 3

Overview
The WLC-T03-HL Nucleus-M Handgrip (Left) offers wireless connections between motors and hand grips. Operators can attach multiple motors per channel, and the left hand grip can easily control any assigned motor. The handles menu allows for individual motor torque adjustments and calibration can be done directly from the motor. The handle can also be powered by the cameras 7-pin port. This handgrip is compatible with various setups, making it ideal for shoulder-mounted or gimbal setups.

The Nucleus-M Brushless Wireless Follow Focus Motor has a built-in motor drive that communicates directly with the hand unit and hand grips, eliminating the need for a separate MDR. It can be easily attached and detached from 19mm or 15mm rods and has a standard gear size for cinema lenses. The motors torque is 2.5N·m at 14.8V and can be powered by daisy chaining with a P-tap power cable. The Nucleus-M allows for full control of focus, iris, and zoom on the hand unit or hand grips, with the option to split control between them with the push of a button.

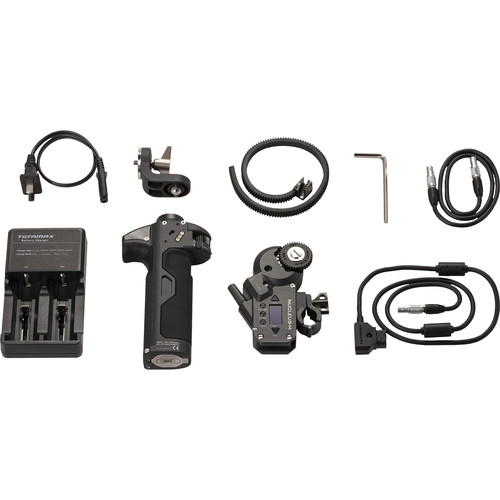

Included in box
1x WLC-T03-HL Nucleus-M Handgrip (Left)
1x WLC-T03-M Nucleus M Motor
1x FR-T03 Photographic Lens Follow Focus Gear Ring
1x WLC-T03-7P-S-55 Nucleus-M 7-Pin to 7-Pin Motor to Motor Connection Cable (Straight) 55cm
1x WLC-T03-PTAP-7P Nucleus-M P-TAP to 7-Pin Motor Power Cable
1x WLC-T03-RS Nucleus-M Handle Grip Mount to ARRI Standard Rosette Adapter
1x WLC-T03-BC Nucleus M Battery Charger

About the Tilta Nucleus-M Kit 3
Please note: 18650 Batteries not included.

The Nucleus-M is a revolutionary and highly customisable 3-channel wireless lens control system. It allows you to have full control of focus, iris, and zoom on either the FIZ hand unit or between the two wireless hand grips. You can even split control of the channels between the hand unit and wireless hand grips as you see fit with the push of a button.

WLC-T03-HL NUCLEUS-M HANDGRIP – LEFT
Colour Gunmetal Grey
Weight (no batteries or adapter) 0.24kg

NUCLEUS-M BRUSHLESS MOTOR
Colour Gunmetal Grey
Weight
Motor (no rail adapter) 0.19kg (0.419lb)
Motor with 15mm rail adapter 0.22kg (0.496lb)
Motor with 19mm rail adapter 0.22kg (0.487lb)
Length/Height 11.43cm (4 1/2 Inches)
Width 6.9cm (2 3/4 Inches) (motor plus rail adapter)
Width 6.66cm (2 5/8 Inches) (ports to tip of gear)
Width 8.25cm(3 2/8 Inches) (end to end furthest points)
Depth 1.5cm (5/8 Inches) (rail mount section)
Depth 1.9cm (3/4 Inch) (base section)
Depth 3.49cm(1 3/8 Inches) (motor section)
Materials Aluminium-Alloy
Stainless Steel
ABS Plastic

WLC-T03-HL Nucleus-M Handgrip (Left)

Connections between motors and the two hand grips are completely wireless.
There is no limit on the amount of motors an operator can attach per channel.
The left hand grip can easily control any one motor assigned by the AC from the Focus Finger Knob.
Individual motor torque can be changed from the handle’s menu.
Calibration can be done from the motor directly and with the FIZ Unit off, motor control is automatically assigned to the handles without initiating Master-Slave mode.
Run/Stop Function Capable.
Hard A-B stops can be created for the Knob.
Finger Knob throw can be adjusted for full 310 degrees, 180 degrees, or 85 degrees.
Powered by (2) 18650 Batteries – NOT included. Handle can be powered by the 7-pin port by the camera.
Compatible with the Gravity G1 Handheld Gimbal via ARRI Standard Rosette, Tiltamax Gravity via Universal Gimbal Adapters, and Armor-Man via Nucleus-M D-cups.
Ideal for shoulder-mounted or gimbal setups.
Nucleus-M Brushless Wireless Follow Focus Motor

This brushless wireless follow focus motor has its own built-in motor drive that communicates directly with the hand unit and hand grips.
This negates the need to mount a separate MDR to your rig, allowing for a more compact camera setup and a quicker setup time.
Simply set the motor and Nucleus-M hand unit/hand grips to the same channel and you will have full control. The motor allows for automatic calibration of the lens as well as manual calibration if you are using lenses that don’t have hard end stops at close focus and infinity.
The motor is designed to clamp onto 19mm or 15mm rods (with the included rod bushings).
This clamp-on design allows you to easily attach and detach the motor without needing to remove any other accessory from your setup.
Every motor has a 0.8 mod, 35 tooth, 32 pitch gear attached, which is the standard gear size for cinema lenses.
The torque of the Nucleus-M Motor at 14.8V is 2.5N·m To power the motor and subsequent motors, only one power port on your camera rig needs to be used.
Simply plug the P-tap power cable into one of the motors and then daisy chain power to the rest of the motors with the short 7-pin to 7-pin cables.
