Tilta Nucleus-M Kit 2

Overview
The WLC-T03-HR Nucleus-M Handgrip (Right) is a wireless control system that allows operators to easily control multiple motors without any limitations. The right hand grip can control two motors assigned by the AC, and individual motor torque can be adjusted from the handles menu. The handgrip is also compatible with various equipment such as the Gravity G1 Handheld Gimbal and Armor-Man.

The Nucleus-M Brushless Wireless Follow Focus Motor is a compact and efficient motor that communicates directly with the hand unit and hand grips. It can automatically calibrate lenses and has a clamp-on design for easy attachment and detachment. The motor also has a standard gear size for cinema lenses and can be powered by daisy chaining with 7-pin cables. The Nucleus-M system allows for full control of focus, iris, and zoom with the FIZ hand unit or wireless hand grips.

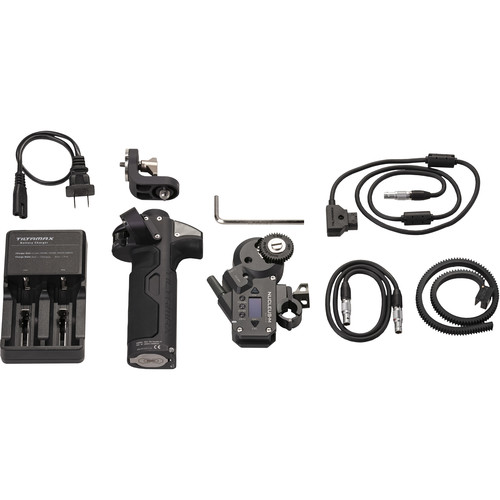

Included in box
1x WLC-T03-HR Nucleus-M Handgrip (Right)
1x WLC-T03-M Nucleus M Motor
1x FR-T03 Photographic Lens Follow Focus Gear Ring
1x WLC-T03-7P-S-55 Nucleus-M 7-Pin to 7-Pin Motor to Motor Connection Cable (Straight) 55cm
1x WLC-T03-PTAP-7P Nucleus-M P-TAP to 7-Pin Motor Power Cable
1x WLC-T03-RS Nucleus-M Handle Grip Mount to ARRI Standard Rosette Adapter
1x WLC-T03-BC Nucleus M Battery Charger

About the Tilta Nucleus-M Kit 2
Please note: 18650 Batteries not included.

The Nucleus-M is a revolutionary and highly customisable 3-channel wireless lens control system. It allows you to have full control of focus, iris, and zoom on either the FIZ hand unit or between the two wireless hand grips. You can even split control of the channels between the hand unit and wireless hand grips as you see fit with the push of a button.

NUCLEUS-M HANDGRIP RIGHT
Colour Gunmetal Grey
Weight (no batteries or adapters) 0.26 kg

NUCLEUS-M BRUSHLESS MOTOR
Colour Gunmetal Grey
Weight
Motor (no rail adapter) 0.19kg (0.419lb)
Motor with 15mm rail adapter 0.22kg (0.496lb)
Motor with 19mm rail adapter 0.22kg (0.487lb)
Length/Height 11.43cm (4 1/2 Inches)
Width 6.9cm (2 3/4 Inches) (motor plus rail adapter)
Width 6.66cm (2 5/8 Inches) (ports to tip of gear)
Width 8.25cm(3 2/8 Inches) (end to end furthest points)
Depth 1.5cm (5/8 Inches) (rail mount section)
Depth 1.9cm (3/4 Inch) (base section)
Depth 3.49cm(1 3/8 Inches) (motor section)
Materials Aluminium-Alloy
Stainless Steel
ABS Plastic

WLC-T03-HR Nucleus-M Handgrip (Right)

Connections between motors and the two hand grips are completely wireless.
There is no limit on the amount of motors an operator can attach per channel.
The right hand grip can easily control any two motors assigned by the AC from the Zoom Joystick or Iris Finger Knob.
Individual motor torque can be changed from the handle’s menu.
Calibration can be done from the motor directly and with the FIZ Unit off, motor control is automatically assigned to the handles without initiating Master-Slave mode.
Zip Function Capability
Run/Stop Function Capable
Hard A-B stops can be created for the Joystick and Knob individually.
Finger Knob throw can be adjusted for full 310 degrees, 180 degrees, or 85 degrees.
Compatible with the Gravity G1 Handheld Gimbal via ARRI Standard Rosette, Tiltamax Gravity via Universal Gimbal Adapters, and Armor-Man via Nucleus-M D-cups.
Nucleus-M Brushless Wireless Follow Focus Motor

This brushless wireless follow focus motor has its own built-in motor drive that communicates directly with the hand unit and hand grips.
This negates the need to mount a separate MDR to your rig, allowing for a more compact camera setup and a quicker setup time.
Simply set the motor and Nucleus-M hand unit/hand grips to the same channel and you will have full control. The motor allows for automatic calibration of the lens as well as manual calibration if you are using lenses that don’t have hard end stops at close focus and infinity.
The motor is designed to clamp onto 19mm or 15mm rods (with the included rod bushings).
This clamp-on design allows you to easily attach and detach the motor without needing to remove any other accessory from your setup.
Every motor has a 0.8 mod, 35 tooth, 32 pitch gear attached, which is the standard gear size for cinema lenses.
The torque of the Nucleus-M Motor at 14.8V is 2.5N·m To power the motor and subsequent motors, only one power port on your camera rig needs to be used.
Simply plug the P-tap power cable into one of the motors and then daisy chain power to the rest of the motors with the short 7-pin to 7-pin cables.
