Tilta Hydra Motorized Slider

Overview
The Hydra Motorized Slider is a heavy-duty system that can support cameras and gimbal systems weighing up to 66 lbs. It is designed to be compatible with most SUVs and trucks using tow hook and hitch adapters, as well as speed rail mounting kits for a secure connection. The system also features wireless control, allowing for precise operation and pre-programmed A/B points for consistent shots. It is also Ronin 2 ready with the included DJI Ronin 2 mounting plate. Please note that images are for display purposes only and the Hydra Motorized Slider is the only item included.

Introducing the newest addition to the Hydra Car Mounting family, the Hydra Motorized Slider. Made from aerospace-grade aluminum alloy and stainless steel, this shock-absorbing slider is designed to withstand extreme weather conditions and can operate flawlessly in temperatures ranging from -22℉ to 176℉. It offers flexible remote operation capabilities with a control handle and terminal, allowing users to adjust speed, damping, and set A/B points for precise shots. The system is also portable, weighing 110.2 lbs and fitting into three compact cases for easy storage and transportation. With its efficient power usage, the Hydra Slider can last a full day of shooting with only four 14.8V V-Mount batteries. It also features a quick 4-second travel time and a descent rate of 1.4 feet per second, making it suitable for dynamic shots. Optional accessories can be used to mount the system on the roof of a vehicle for broadcast purposes, but please note that these are not included in the Pro Kit and must be purchased separately. Contact the Care Team for more information about this configuration and optional accessories.

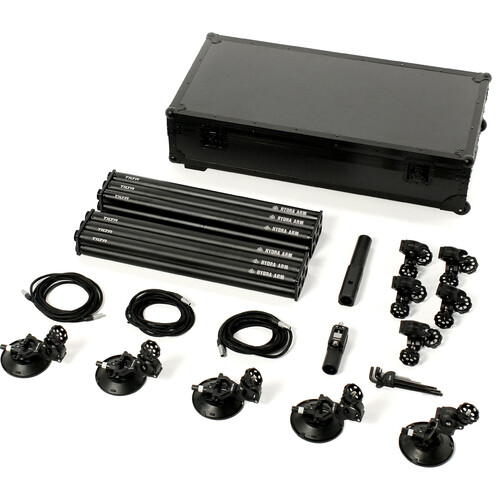

Included in box
2x Speed Rail Set
3x Power Cables
5x Speed Rail Mounting Suction Cup
1x Tow Hitch Adapter
1x Front Tow Hook Adapter
5x Speed Rail Mounting Clamp
1x Tool set
2x Slider Connection Plate
2x Back Plate Speed Rail Mount
1x Extension Bracket
1x Center Back Plate Speed Rail Mount
1x Control Handle with Mounting Bracket
2x XL Rosette Speed Rail Mount
1x Control Module
1x Slider – Top
1x Slider – Bottom

About the Tilta Hydra Motorized Slider
PLEASE NOTE: Images are for display purposes only, Hydra Motorized Slider only supplied

Introducing the Hydra Motorized Slider, the newest addition to the Hydra Car Mounting family.

The system mounts to a vehicle via Tow Hook or Hitch Adapter and utilizes 50mm Speed Rail with suction cups to provide further support. The system can also be easily integrated to unique specialty vehicles like the Can-Am Maverick X3, etc.

The shock-absorbing slider is meticulously crafted from aerospace-grade aluminum alloy and 304 stainless steel. Designed to withstand extreme weather conditions, the Hydra operates flawlessly in temperatures ranging from -22℉ to 176℉, ensuring resistance to wind, rain, and snow.

Equipped with a control handle and control terminal, the Hydra offers flexible remote operation capabilities. Whether wired or wireless, users can control the slider’s movement from inside the vehicle with ease.

Through these control options, users can adjust speed, damping, set A/B points and program the slider to reach these points at specific time intervals without user input. Additionally, the system supports future firmware upgrades.

Despite its robust build, the Hydra is designed with portability in mind. The slider weighs 110.2 lbs, and conveniently fits into three relatively compact cases. This allows for easy storage and transportation in most trucks or SUVs, ensuring you’re always prepared for the next shoot.

Powered by only four 14.8V V-Mount batteries, the Hydra Slider is incredibly efficient. With four 270Wh (18600mAh) batteries, users can enjoy a full day of shooting without swapping batteries. (under normal shooting conditions, battery life may vary)

This Slider can travel from its highest to lowest point in just 4 seconds. It descends at a rate of 1.4 feet per second, ensuring you capture dynamic shots effortlessly.

When used with optional accessories, the system can be mounted the roof of a vehicle without the shock absorbing arm for broadcast purposes such as marathons or cycling events.

NOTE: The Pro Kit does not include the accessories needed for this broadcast setup. Please contact our Care Team for more information about this configuration and optional accessories

Dimensions:
Case 1: 50 x 23 x 13 inches
Case 2: 46 x 25 x 12 inches
Weight:
Case 1: 142 lbs
Case 2: 102 lbs
Materials: Aluminum alloy
Colour: Black

HEAVY PAYLOAD – Supports Cameras and Gimbal Systems up to 66 lbs
UNIVERSAL DESIGN – Compatible with Most SUVs and Trucks via Tow Hook and Hitch Adapters
SECURE CONNECTION via Tow Hook and Hitch Adapters as well as Speed Rail Mounting Kits
WIRELESS CONTROL – Allows for Precise Operating and Pre-Programed A/B Points for Ultimate Consistency
RONIN 2 READY via the Included DJI Ronin 2 Mounting Plate
