Overview
The Hydra Alien Pro Kit offers a complete package for flexible car mounting, including the Hydra Alien Car Mounting System, Remote Control Kit, and Hydra Alien Monitor Bracket. The system is designed to work with smaller gimbals and can support a payload of up to 50kg. It features highly elastic shock-absorbing silicon and updated suction cup plungers for improved stability and durability, as well as a shock-absorbing arm and spring-loaded cradle head for precise shots. The system also includes a Hydraulic Dampening Pole for smoother results in less than ideal driving conditions.
The Remote Control Kit allows for full wireless control of the DJI RS2 and RS3 Pro, including settings and camera functions. The system comes with a waterproof hard shell safety case for secure transportation and storage. It can be configured for various car-mounted shots and is compatible with any gimbal that can mount via 1/4″-20 screws and power via P-Tap. However, battery plates are not compatible with 26v batteries and the M Key on the RS3/RS3 Pro is not able to mimic the function of the gimbal. It is not recommended to use the suction cups on wrapped vehicles due to potential issues with direct sunlight and heat.
Included in box
1x Hydra Alien Dovetail Plate L1 (HDA-T02-L1)
1x Hydra Alien Dovetail Plate L2 (HDA-T02-L2)
1x Hydra Alien Dovetail Plate L3 (HDA-T02-L3)
1x Hydra Alien Dovetail Plate L4 (HDA-T02-L4)
1x Hydra Alien Dovetail Connector Plate (HDA-T02-DCP)
1x Hydra Alien Large Suction Cup (HDA-T02-LSC)
2x Hydra Alien Small Suction Cu (HDA-T02-SSC)
1x Hydra Alien Shock Absorbing Arm with Hydraulic Damping Pole (HDA-T02-SAA)
1x Power Supply Base Plate for RS 2 with power cable (TGA-PBP)
8x 220g Counterweight (TGA-CW-220)
10x Hydra Alien Cable Clamp Suction Cup (HDA-T02-CSC)
1x Hydra Alien Tool Kit (HDA-T02-TK)
1x Safety Belt (219-000000-089)
1x Hydra Dual Battery Plate Cradle Head – V Mount (HDA-BCH-V)
2x Hydra Alien V-Mount Battery Plate (HDA-T02-BP-V)
1x Hydra Alien 90 Degree Adapter for Shock Absorbing Head (HDA-T02-ASA)
1x Hydra Alien Shock Absorbing Head (HDA-T02-SAH)
1x Hydra Alien Dual Battery Plate Support Bracket (HDA-T02-DPS)
1x Hydra Alien Car Mounting Hard Shell Waterproof Safety Case (HDA-T02-WSC)
1x Hydra Alien Monitor Bracket (HDA-T02-MB)
1x Remote Control Handle for RS 2/Ronin S（TGA-RCH)
1x Remote Control Receiver Module for RS 2 (TGA-RCR)
1x 6-Pin Lemo to 6-Pin Lemo Cable（500 cm) (TCB-6LE-6LE-500)
About the Tilta Hydra Alien Pro Kit – V-Mount
The Pro Kit includes the Hydra Alien Car Mounting System, plus the Remote Control Kit and the Hydra Alien Monitor Bracket.
The Hydra Alien Pro Kit offers a complete package for flexible car mounting while including additional accessories to offer more accurate control and improved ease of use.
The Pro Kit features the Remote Control Kit which offers full wired or wireless control of the DJI RS2 or RS3 Pro and includes the Hydra Alien Monitor Bracket which makes it easier to monitor your footage while controlling the Ronin.
The Hydra Alien Car Mounting System was designed from the ground up to work in conjunction with smaller gimbals to allow for a lightweight solution to car-mounted cinematography.
The system utilizes a highly customizable combination of dovetail-like plates and suction cups that can support a payload of 50kg each.
Highly elastic shock-absorbing silicon provides longer durability and less abrasion, while the updated suction cup plungers create a stronger seal for improved security in colder weather.
When interconnected, the system allows users to fine-tune the exact placement of their shot to achieve almost any angle possible when mounting to a vehicle.
The system also uses a shock absorbing arm to better stabilize the camera for certain shots as well as a spring-loaded cradle head if the intended shot requires that the gimbal be flipped upside down.
The newly included Hydraulic Dampening Pole further stabilizes the arm to provide smoother results when driving conditions are less than optimal.
The Hydra Alien supports full wireless control of the RS2 and RS3 Pro via the included Remote Control Kit, which allows you to control your gimbal’s settings as well as the record and photo functions of your camera via either a wired or wireless connection.
It also includes a thumbstick that allows you to control the pan and tilt of your gimbal for maximum precision while operating.

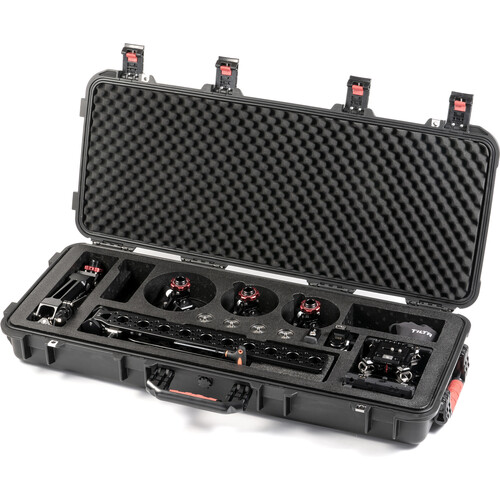

The new Hard Shell Safety Case is designed to store and protect the Hydra Alien.
This allows you to safely transport the system between shooting locations and neatly store the system when it is not in use.
The waterproof design protects the case and equipment from hazards like rain and snow.
This case functions as a replacement for the one included with the Hydra Alien, but can also be used to store other equipment if needed.
High, low. To the side of the car, mounted on top of it — almost any car mounted shot can be configured using the Hydra Alien Car Mounting System. Let your imagination run wild!
This system supports any gimbal that can mount via 1/4″-20 screws and power via P-Tap. The Remote Control Handle only supports the RS2 and RS3 Pro.
PLEASE NOTE: Battery plates are not compatible with 26v batteries
RS3/RS3 Pro: The M Key is NOT able to mimic the function of the gimbal. The M Key on this unit can ONLY change the Mode setting.
CAUTION: We do not recommend using the suction cups on wrapped vehicles due to suction issues related to direct sunlight and heat
Dimensions 35 x 17 x 10 inches
Weight 44 lbs
Net Weight 14.5 lbs
Materials Aluminium alloy, stainless steel
Colour Black
Unlimited creativity durable & lightweight with flexible installation angles
Fast & steady optimized shock absorption for smooth camera movement
Remote kit supports wireless control of the DJI RS2 And RS3 Pro
Flexible power options longer shooting duration via Gold/V-Mount Battery Plates
Heavy duty case for added security while transporting
