Tilta Hydra Alien Pro Car Mounting System – VM

Overview

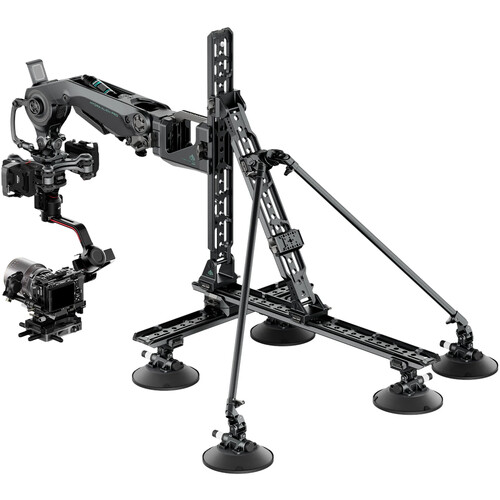

The Hydra Alien Pro Car Mounting System supports cameras and gimbal systems up to 28.6 lbs, with swappable shock absorbers that allow users to adjust the rigidity of the head for varying payloads. It features a universal design compatible with most vehicles via dovetail plates and suction cups, and is gimbal ready with the included DJI Ronin 2 mounting plate and optional Movi Pro adapter.

This next generation gimbal support solution for car-mounted cinematography offers a highly customizable combination of dovetail-like plates and suction cups for fine-tuning shot placement. The shock absorbing arm supports higher payloads and features a motorized shock absorbing head for greater stability, making it ideal for fast-paced environments and expanding possibilities for both entry level and experienced users.

Included in box
Box.1 (HDA-T18-SAK-V)

1x Shock Absorbing Arm for Hydra Alien Pro（12010.00017.00.00）
1x Shock Absorbing Head for Hydra Alien Pro（HDA-T18-SAH）
1x DJl Ronin 2 Mount Adapter for Hydra Alien Pro（HDA-T18-MA-R2）
1x Power Supply Base Plate for DJI Ronin（TGA-PBP）
2x Power Module for Hydra Alien Pro – V Mount（HDA-T18-PM-V）
1x set Lightweight Swappable Shock Absorber Kit for Hydra Alien Pro（HDA-T18-LSK）
8x Pcs 220g Counterweight（TGA-CW-220）
1x set Tool Kit
1x Security Rope（37104.00035.00.00）
1x 1/4 Ring Screw（32110.00514.00.00）
1x RED DSMC2 Power to PTAP Cable（TCB-RD2-PTAP）
1x 2-Pin Lemo to 2-Pin Lemo Cable，Length 60cm（TCB-2LE-2LE-17)

Box.2 (HDA-T18-MBK)

1x Dovetail Plates for Hydra Alien Pro（HDA-T18-DP)
1x Dovetail Accessory Mounting Plate for Hydra Alien Pro（HDA-T18-DAM)
3x Suction Cup with Dovetail Mount (6″)（21110.00144.00.00)
2x Suction Cup with 19mm Rod Mount (6″)（21110.00145.00.00
2 x Pcs Tilta 19mm Aluminum Alloy Rod (60cm)（60cm)（TA-19R-AA-60)
1x Dovetail to 19mm Rod Mount Adapter for Hydra Alien Pro（HDA-T18-DMA
1x Dovetail Extension Bracket for Hydra Alien Pro（HDA-T18-DEB
1x Safety Belt-Black(37104.00036.00.00)

About the Tilta Hydra Alien Pro Car Mounting System – VM
The Hydra Alien PrCar Mounting System is a next generation gimbal support solution for car-mounted cinematography and is one of the most accessible and innovative Car Mounting Solutions for RS4 Pro to Ronin 2.

The system utilizes a highly customizable combination of dovetail-like plates and suction cups that allows users to fine-tune the exact placement of their shot to achieve almost any angle possible when mounting to a vehicle.

The newly designed dovetail plates feature retractable safety pins at every position which the arm can be mounted. This drastically improves the safety of the system, especially when adjusting the position of the arm via a new sliding design which makes small adjustments quick and easy.

The newly designed shock absorbing arm supports higher payloads up to 28.7lbs and features a motorized shock absorbing head which provides greater stability and uses motors to help stabilize the system similar to a gimbal.

When paired with the optional Nucleus Nano 2 Control Handle, the damping of the shock absorbing head can be adjusted remotely which makes this ideal for fast paced environments and provides the opportunity to fine tune damping settings as road conditions change in real time.

When paired with a lightweight gimbal, this creates an incredibly smooth image while being more user friendly when compared to traditional systems. This innovative system greatly expands possibilities for both entry level and experienced users who may not have the full budget needed for more traditional vehicle mounted rigs.

Optional accessories like the electronic suction cups and our dovetail mounting kit are great options for expanding the functionality of this system.

Please note: when using larger gimbals like the Ronin 2, we recommend only rigging the Hydra Alien Pro with Speed Rail as other suction cup based options are not strong enough to reliably support the system.

Hydra Alien Pro Speed Rail Mounting Kit – VM
Case 1: 68 x 57 x 30cm /26.7 x 22.4 x 11.8 inches
Case 2: 48 x 37 x 27cm / 18.9 x 14.5 x 10.6 inches
Weight
Case 1: 16kg / 35 lbs
Case 2: 4.5kg / 10 lbs
Materials: Aluminium alloy
Colour: Grey

[HEAVY PAYLOAD] Supports Cameras and Gimbal Systems up to 28.6 lbs
[ELECTRONIC DAMPING] via Wirelessly Controllable Shock Absorbing Head
[SWAPPABLE SHOCK ABSORBERS] Allow Users to Adjust the Rigidity of the Head for Varying Payloads
[UNIVERSAL DESIGN] Compatible with Most Vehicles via Dovetail Plates and Suction Cups
[GIMBAL READY] via the Included DJI Ronin 2 Mounting Plate and Optional Movi Pro Adapter
