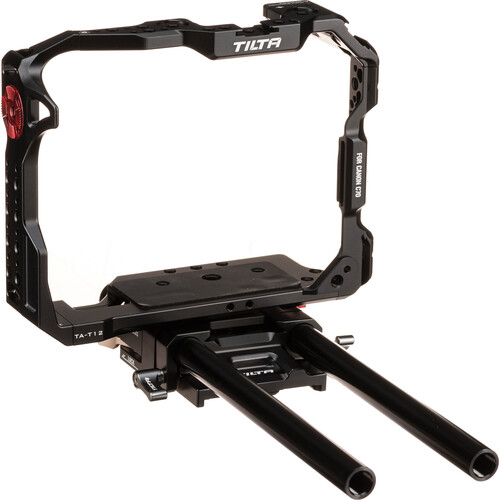

Tilta C70 Lightweight Cage Kit-Black

Overview
The custom designed camera cage for the Canon C70 is highly compatible with multiple built-in 1/4inch-20 & 3/8inch-16 screw holes and cold shoe mounts in all directions. This allows for the mounting of various accessories such as a top handle, monitor bracket, and on-board microphone. The top plate also features dual cold shoe mounts for additional mounting options.

The camera cage provides a secure attachment with anti-slip cushion and multiple 1/4inch-20 screw holes and cold shoe mounts on the left side arm. The right side arm has a built-in NATO slot and 1/4inch-20 screw hole for connecting a side handle. The bottom of the cage features an ARRI compatible rosette for mounting accessories and an ARCA quick release plate for compatibility with the Tiltaing 15mm LWS baseplate and DJI RS2 gimbal. The cage also includes a lens adapter support and a multi-functional top plate with cold shoe mount. The lightweight kit provides protective armor and relevant accessories for the C70 while remaining lightweight.

Included in box
1x Full Camera Cage for Canon C70 – Black（TA-T12-FCC-B）
2x Aluminum Rod 15*200mm-Black Version（R15-200-B）
1x Tiltaing 15mm LWS Baseplate Type V – Black（TA-BSP5-15-B）

About the Tilta C70 Lightweight Cage Kit-Black
This Lightweight Kit provides protective armor for the Canon C70 and includes relevant accessories to improve the functionality of the C70 while remaining lightweight.

The Full Cage features several 3/8inch-16 and 1/4inch-20 threads with locating pins, dual cold shoe receivers, and a NATO Rail for Type IV and VI Side Handles.

It also features two ARRI Compatible Rosette Connections as well as a Rod Attachment Port for our optional Single Rod Holders.

One of these rosettes is uniquely located on the bottom of the cage which allows for our Adjustable Top Handle to be mounted in order to more comfortably shoot vertically.

An additional Security Attachment with an anti-slip cushion is located in the top left corner of the cage and creates an additional point of contact for added security.

The Bottom Plate provides 1/4inch-20 threads for attaching your camera to various quick release plates and is compatible with the ARCA Receiver of the RS2 Mounting Plate.

The included EF Mount Lens Adapter Support mounts to front of the cage to provide an additional point of contact to support an RF to EF Adapter.

The 15mm LWS Baseplate Type V adds 15mm rod support to the system and allows you to mount rod based accessories such as matte boxes and follow focus systems.

The low profile of this baseplate was specifically designed to accommodate the unique height of the C70 and to perfectly align with the sensor’s optical center.

The bottom of the baseplate natively connects to our Tilta Standard Dovetails and also supports various quick release plates via 1/4inch-20 and 3/8inch-16 threads.

Please note- the 15mm LWS Baseplate Type V features separated front and back rod mounts that are not connected.

Colour Black
Materials Aluminium alloy, stainless steel
Dimensions 179.5×146.5×71.5mm

Highly Compatible

Multiple built-in 1/4inch-20 & 3/8inch-16 screw holes in all directions of the camera cage. Ready for mounting various accessories. The top plate has dual cold shoe mounts for mounting a top handle, monitor bracket, on-board microphone, etc.

Multiple Holes For Mounting

Multiple 1/4inch-20 screw holes and cold shoe mounts for mounting various accessories simultaneously

Top Handle

The dual cold shoe mounts on top of the camera cage are ready for mounting accessories such as a top handle, on-board microphone, additional light, etc.

Security Attachment

The additional security attachment with anti-slip cushion adds more security to the camera.

Left Side Arm

Multiple built-in 1/4inch-20 screw holes and cold shoe mounts. Allows for the mounting of various accessories.

Side Handle

The side arm has a built-in NATO slot & 1/4inch-20 screw hole with locating point for connecting a side handle.

Dual Holding Grips

Supports run/stop control and lens control. Dual holding grips provide more support and longer operating time.

Right Side Arm

The right side arm provides multiple 1/4inch-20 screw holes with locating points, wrist strap holder, and shoulder strap holder.

Rigid Custom Design

The custom fitted camera cage for Canon C70 provides an ARRI compatible rosette for mounting various accessories, as well as reserved space for all of the connection ports.

Flexible Operation

Quickly rotate the adjustable top handle to set up for a vertical operating mode. Easily adjust for balance and steady operation.

ARRI Compatible Rosette

The bottom of the camera cage has a built-in cold shoe mount, 1/4inch-20 screw holes with locating points, and an ARRI compatible rosette. The ARCA quick release plate is directly compatible with the Tiltaing 15mm LWS baseplate and DJI RS2 gimbal.

Lens Adapter Support

The front of the camera cage has built-in screw holes for mounting a lens adapter support. Compatible with various lens adapters. Provides protection for the camera’s lens mount

Multi-Functional Top Plate (Optional)

The top plate has a built-in cold shoe mount for mounting accessories such as monitor bracket, additional light, etc. It is compatible with the original C70 top handle.

Base Accessory Mounting Plate

The mounting plate has multiple built-in ARRI standard locating points & 1/4inch-20 screw holes. Compatible with the original ARCA quick release plate on RS2 gimbal. The NATO rail on the side arm is compatible with Tilta side handles.
