Teradek RT MOTR.S

Overview
MOTR.S is the new standard for lens motors that has been completely redesigned for improved performance. With its ultra-lightweight and compact design, it can reach speeds of up to 297 teeth per second. It also offers new features such as daisy-chaining motors, power inputs up to 32V, and a quick-release gear system for easier rigging. This add-on motor comes with one 0.8 gear and is compatible with previous RT handsets, receivers, and daisy-chainable motors (MOTR.X).

The MOTR.S lens motor is available in the MOTR.S FIZ Kit and MOTR.S Single Channel Kit, allowing for full control of focus, iris, and/or zoom. For more demanding lenses, the optional MOTR.S MAX offers 3X sustained torque for smoother operation. Please note that no motor cables are included with the MOTR.S lens motor. Upgrade to the MOTR.S for a faster, more efficient, and streamlined experience with your camera rigging.

Included in box
1x RT MOTR.S Lens Motor
1x 0.8 MOD Gear
1x MOTR.S/MAX Bracket

About the Teradek RT MOTR.S
MOTR.S is the new standard for lens motors and has been completely redesigned from the ground up. MOTR.S is ultra-lightweight, compact, and blazing fast at up to 297 teeth per second. RT users can now daisy-chain motors, utilize power inputs up to 32V, and streamline camera rigging with a revolutionary quick-release gear system and new ergonomic rod clamps. MOTR.S will be compatible with all previous RT handsets, receivers, and daisy-chainable motors (MOTR.X).

This add-on motor comes with one 0.8 gear. No motor cables are included.

The MOTR.S lens motor is bundled with our MOTR.S FIZ Kit and MOTR.S Single Channel Kit for full motor control of focus, iris, and/or zoom, as well as the optional MOTR.S MAX for up to 3X sustained torque for stiff, resistant dials on heavy-duty lenses.

Physical
Gear Pitch 0.8 Mod standard (others available)
Max Torque 0.95 Nm peak, 0.3 Nm continuous
Max Speed 297 teeth/second
Construction All aluminium
Mountability Compatible with 19, 15 mm Rods
Dimensions 4.1 x 2.2 x 1.2″ (106 x 56 x 31 mm)
Weight 6.5 oz (184 g)
Power
Operating Voltage 7-32V
Power Input 0.1A idle. 2.5A peak
Interface

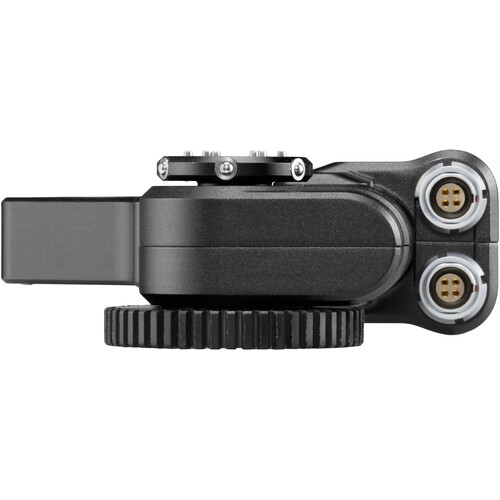

Connectors 2x 0B.4 (chainable)
Environmental
Operating Temperature –20°C to 50°C

Quick-release gear system
Daisy-chainable
297 teeth per second
New clamp with improved handle location
Power inputs up to 32V
