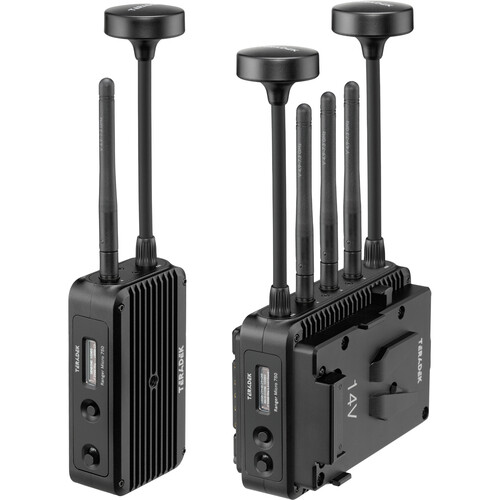

Teradek Ranger Micro 750 TX/RX – V-Mount

Overview
Ranger Micro 750 3G-SDI/HDMI – Wireless TX/RX Set from Teradek offers zero-delay transmission, perfect for IMAG and live event production, with a quick transition from TX to RX in just .001 seconds. It also provides visually lossless 4K HDR video transmission, superior to HEVC and H.264 solutions, and AES-256 encryption for confidentiality and security. With granular frequency control in 5 MHz increments and the ability to operate on both licensed and unlicensed frequencies from 4.9 GHz to 6.4 GHz, Ranger offers flexibility and compatibility.

Ranger is the only solution with true zero-delay transmission, providing an ultra-low latency experience even in 4K60, making it perfect for lifelike and engaging video applications. It operates over a wide spectrum, including the new 6 GHz U-NII-5 band, offering 12 additional channels free of interference. With options for point-to-point and point-to-multipoint transmission, as well as cross-compatibility between different Ranger models, it is a versatile and powerful tool for wireless video transmission. And with the ability to configure Ranger from your phone, it offers convenience and ease of use for any production workflow.

Summary
Range: 750 feet
Included in box
1 x Teradek Ranger Micro 750 TX/RX Set – V-Mount

About the Teradek Ranger Micro 750 TX/RX – V-Mount
You’ve Seen Low-Delay.
Now Experience Zero-Delay.

Experience uncompromising wireless performance with Ranger Micro 750 3G-SDI/HDMI – Wireless TX/RX Set from Teradek, the only solution with true zero-delay (<1ms) transmission, visually lossless image quality, and wide spectrum operation over licensed and unlicensed bands. And now with support for 6GHz (U-NII-5), Ranger offers 12 additional RF channels free of interference. Operate Over a Massive Spectrum With the number of wireless devices on the rise, and a limited amount of frequency bands to choose from, there is little room for your signal to move without interference or disruption. But with Ranger, you have options: 5 GHz for general use, licensed band frequencies for special events, and the new 6 GHz U-NII-5 band for 12 new channels of uncongested wireless spectrum. Seriously, No Delay When a delay in audio and video transmission is noticeable, it’s nearly impossible to give your fans a lifelike experience. Ranger’s patented zero- delay technology solves this problem. With Ranger, your audio and video signals are transmitted with ultra-low latency – even in 4K60 – providing a visually lossless and engaging experience for your viewers. Discover Workflows Learn the many ways Ranger can be used in video applications. Point-to-Point Transmit from Source to Receiver Deliver secure and reliable 4K wireless video transmission in an instant. Point-to-Multipoint Transmit from Source to Multiple Receivers Transmit to 6 receivers simultaneously in Multicast Mode or to unlimited receivers with Broadcast Mode*. *Broadcast Mode only available on Micro and Mk II 5000 models. Cross-Compatibility Connect Ranger to Ranger Pair any combination of Ranger TX and RX together for flexible deployments. Families Stick Together Pair any combination of Ranger TX and RX together – regardless of model. That means your production can quickly scale and operate a variety of Ranger systems best suited to your environment, despite differences in transmission range*. *Mixed Ranger systems operate with a range of the lowest paired model. 6 GHz operation requires support on both the TX and RX. Configure Ranger From Your Phone Command your wireless workflow from the palm of your hand. Pair transmitters and receivers with the touch of a button Measure and analyze the frequency and amplitude of a signal View live channel strength for licensed/ unlicensed bands Monitor your live RF spectrum bandwidth RANGER MICRO TX Video Inputs 3G-SDI SMPTE 424M standard / 75 Ω (BNC x 1) 1x HDMI 2.0 Type-A receptacle Video Outputs 3G-SDI SMPTE 424M standard / 75 Ω (BNC x 1) Colour Sampling SDI: YCbCr 4:2:2, 10-bit HDMI: RGB 4:4:4, 8-bit / YCbCr 4:2:2, 10- bit Delay (TX to RX) <0.001sec (without format conversions) Supported Resolutions 1080p23.98/24/25/29.97/30/50/59.94/60 1080psf23.98/24/25/29.97/30 1080i50/59.94/60 720p50/59.94/60 480p50 576p59.94/60 Input Cross Conversion Yes, HDMI to SDI Output Video Scaling N/A VIDEO PROCESSING Video Compression Uncompressed Test Pattern Generator N/A Video Format Conversion Support Yes Spectrum Analyzer Yes (via Launchpad App) AUDIO Audio Compression 48kHz 24-bit PCM Audio Input Embedded SDI/HDMI Audio Input (2 channel) Audio Output N/A PHYSICAL ATTRIBUTES Dimensions 2.4” x 4.1” x 1.3” (60 x 103 x 33mm) Weight 7.3oz (206g) Construction Milled aluminium (chassis) and regulation-compliant PCB INTERFACES Configuration Interface OSD Screen with Menu Joystick Navigation Switches On/Off Switch Desktop App Launchpad application for OSX & Windows Mobile App Launchpad app (iOS and Android) configuration via Bluetooth USB Interface Upgrade via USB-C Bluetooth Bluetooth 5 LE NETWORK: Licensed Frequencies*: 4.850 ~ 5.150 GHz 5.350 ~ 5.470 GHz 5.850 ~ 5.925 GHz Unlicensed Frequencies: 5.150 ~ 5.250 GHz (Non-DFS) 5.250 ~ 5.350 GHz (DFS) 5.470 ~ 5.725 GHz (DFS) 5.725 ~ 5.850 GHz (Non-DFS) 5.725 ~ 5.850 GHz (Non-DFS) 5.925 ~ 6.425 GHz *By using this product in the licensed frequencies, you acknowledge and agree to comply with all applicable regulations and rules, and to only operate this system in compliance with the applicable license requirements. RF Channel Selection Auto, Manual (Manual available for non-DFS, DFS and Licensed Frequencies) Encryption AES-256, RSA-1024 key exchange RF power 23 dbm EIRP Antennas 1x Horizontal N-Type 2dbi antenna 1x Vertical N-Type 2dbi antenna Range Up to 5000 ft line of sight (using Panel Antenna) Multicast Can connect one transmitter to up to 6 receivers Noise Rejection Can coexist with WiFi and 5GHz cordless phones Can operate up to 6 sets in same location POWER Power Input 2-Pin Circular locking connector 7-28 VDC Battery N/A Nominal Power Consumption 9 Watts Operating Temperature 0~40 deg-C GENERAL Mountability Multiple mounting options with M3 and 1/4-20” holes RANGER MICRO RX Video Inputs N/A 1x HDMI 2.0 Type-A receptacle Video Outputs 3G-SDI SMPTE 424M standard / 75 Ω (BNC x 1) 1 x HDMI 2.0 Type-A receptacle Colour Sampling SDI: YCbCr 4:2:2, 10-bit HDMI: RGB 4:4:4, 8-bit / YCbCr 4:2:2, 10- bit Delay (TX to RX) <0.001sec (without format conversions) Supported Resolutions 1080p23.98/24/25/29.97/30/50/59.94/60 1080psf23.98/24/25/29.97/30 1080i50/59.94/60 720p50/59.94/60 480p50 576p59.94/60 Input Cross Conversion N/A Output Video Scaling Yes, Framerate and Resolution Scaling VIDEO PROCESSING Video Compression Uncompressed Test Pattern Generator Yes Video Format Conversion Support Yes Spectrum Analyzer Yes AUDIO Audio Compression 48kHz 24-bit PCM Audio Input N/A Audio Output Embedded SDI/HDMI Audio Output (2 channel) PHYSICAL ATTRIBUTES Dimensions 4.8” x 3.7” x 1” (122 x 94 x 27mm) Weight 10.3oz (292g) Construction Milled aluminium (chassis) and regulation-compliant PCB INTERFACES Configuration Interface OSD Screen with Menu Joystick Navigation Switches On/Off Switch Desktop App Launchpad application for OSX & Windows Mobile App Launchpad app (iOS and Android) configuration via Bluetooth USB Interface Upgrade via USB-C Bluetooth Bluetooth 5 LE NETWORK: Licensed Frequencies*: 4.850 ~ 5.150 GHz 5.350 ~ 5.470 GHz 5.850 ~ 5.925 GHz Unlicensed Frequencies: 5.150 ~ 5.250 GHz (Non-DFS) 5.250 ~ 5.350 GHz (DFS) 5.470 ~ 5.725 GHz (DFS) 5.725 ~ 5.850 GHz (Non-DFS) 5.725 ~ 5.850 GHz (Non-DFS) 5.925 ~ 6.425 GHz *By using this product in the licensed frequencies, you acknowledge and agree to comply with all applicable regulations and rules, and to only operate this system in compliance with the applicable license requirements. RF Channel Selection Auto, Manual (Manual available for non-DFS, DFS and Licensed Frequencies) Encryption AES-256, RSA-1024 key exchange RF power 21 dbm EIRP Antennas 5x External 2 dBi antennas (included) Range Up to 5000 ft line of sight (using Panel Antenna) Multicast Can connect one transmitter to up to 6 receivers Noise Rejection Can coexist with WiFi and 5GHz cordless phones Can operate up to 6 sets in same location POWER Power Input 2-Pin Circular locking connector 7-28 VDC Battery V mount battery plate Nominal Power Consumption 11 Watts Operating Temperature 0~40 deg-C GENERAL Mountability Multiple mounting options with M3, 3/8” and 1/4-20” holes ZERO-DELAY Go from TX to RX in .001 seconds – perfect for IMAG and live event production. VISUALLY LOSSLESS 4K HDR Transmit video in exceptional detail – superior to HEVC and H.264 solutions. AES-256 ENCRYPTION Keep your video transmission confidential and secure. GRANULAR FREQUENCY CONTROL Make adjustments to the frequency of your signal in 5 MHz increments. LICENSED & UNLICENSED FREQUENCIES Operate from 4.9 GHz to 6.4 GHz on licensed and unlicensed bands. INTERCOMPATIBLE Pair any previous and current Ranger systems together.
