Teradek Bolt 6 LT 750 RX

Overview
The XT range of wireless transmitters is now smaller, lighter, and quieter than before. It also has a built-in 5-pin USB for camera control and is backwards compatible with Bolt 4K. Additionally, the Bolt 6 Series offers 12 new frequency channels, improvements in long range video quality, and an SDI Eye pattern. However, it is important to note that the 6GHz frequency band does not have any DFS channels. The Bolt 6 is included in the new Ultra 5 Bolt and is priced the same as the Bolt 4K.

The Bolt 6 Series is the industrys first 6GHz wireless solution, expanding the capabilities of the Bolt 4K family. It utilizes different antennas than the Bolt 4K and offers access to the recently-unlocked U-NII 5 frequency spectrum, providing users with more bandwidth options. Despite this expansion, the Bolt 6 remains fully compatible with Bolt 4K devices on traditional 5GHz bands. However, the projected release for the 6GHz band in the EU is not until Q1 2023.

Included in box
1 x Bolt 6 LT 750 RX
1 x Ultra Thin HDMI Male Type A (Full) – HDMI Male Type A (Full) 18in/46cm Cable
1 x (Bit 118) 2pin Conn. to PowerTap – 18in/46cm Cable
1 x SDI – BNC to BNC Cable, 10in
1 x PSU 2pin Conn. to 18W AC Adapter (Int) – 6ft Cable
1 x USB Male Type A (Full) – USB Male Type B (Micro) -3ft Cable

About the Teradek Bolt 6 LT 750 RX
Bolt 4K hits new frequencies

The Bolt 6 Series expands the power and performance of the zero-delay Bolt 4K family into the recently-unlocked U-NII 5 frequency spectrum, offering users a wealth of untapped bandwidth while remaining fully-compatible with Bolt 4K on traditional 5GHz bands.

The industry’s first 6GHz wireless solution.

The Bolt 6 transmits and receives over the newly-available 6GHz frequency band as well as the industry-standard 5GHz, dramatically reducing signal congestion in challenging RF environments while remaining fully cross-compatible across all Bolt 4K devices.*

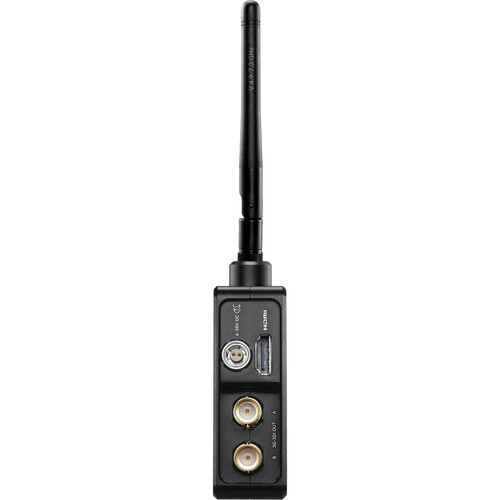

Video Outputs 3G-SDI SMPTE 424M standard / 75 Ω (BNC x 1)
1 x HDMI 1.4b Type-A receptacle
Sdi Ancillary Data Support Supports reading metadata, timecode, and start/stop flags from most camera manufacturers.
Colour Sampling SDI: YCbCr 4:2:2, 10-bit/ HDMI: RGB/YCbCr 4:4:4 8-bit, 4:2:2 10-bit
Output Video Scaling No manual settings, but all signals above 4K30 for HDMI and 1080p60 for SDI are scaled down to 1080p for corresponding output
Supported Resolutions 4Kp23.98/24/25/29.97/30 (HDMI only)
1080p23.98/24/25/29.97/30/50/59.94/60
1080psf23.98/24/25/29.97/30
1080i50/59.94/60
720p50/59.94/60
480p59.94 576p50
480i(NTSC)/576i(PAL)
Video Compression Visually Lossless
Test Pattern Generator Support Yes
Spectrum Analyzer Yes
Colour Correction 17x17x17 3D LUT (supports 10-bit colour)
Audio Compression 48kHz 24-bit PCM
Audio Output Embedded SDI/HDMI Audio Output (2 Channel)
Dimensions 122mm x 94mm x 27mm
Weight 292g (10.3oz)
Construction Milled Aluminium(Chassis) and regulation-compliant PCB
Mountability Multiple mounting options with 1/4″x20 and 3/8″x16 holes
Configuration Interfaces OSD with Menu, Joystick Navigation
Switches On/Off Switch
Mobile App Bolt App
Desktop App Bolt Manager application for OSX & Windows
Usb Interface Functionality Upgrade via Micro-USB
Bluetooth 2.4 GHz

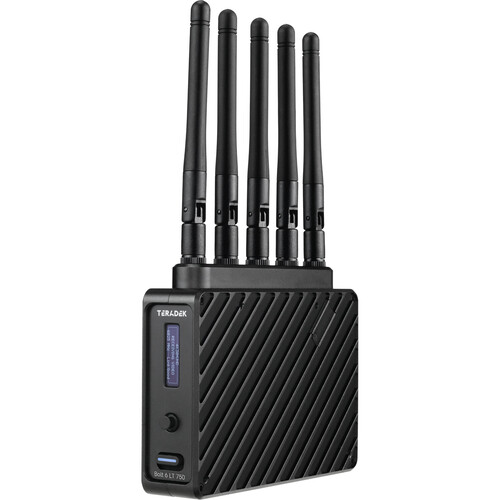

Antennas 5 External 2 dBi antennas (included)
Wireless Non-DFS Frequencies:
5.190 ~ 5.230 GHz, 5.755 ~ 5.795 GHz, 5.945 ~ 6.425GHz
DFS Frequencies:
5.270 ~ 5.670 GHz
Rf Channel Selection Auto, Manual
Encryption AES-256, RSA-1024 key exchange
Rf Power 21 dbm EIRP
Range Up to 750 ft, line of sight
Unicast Multicast Can connect one Transmitter to up to 6 Receivers
Noise Rejection Can coexist with WiFi and 5GHz cordless phones
Can operate up to 6 sets in same location
Interoperability Can receive wireless video from all ranges of Bolt 4K XT and Bolt 4K LT transmitters (limited by shortest range device)
Power Input 2-Pin Circular locking Connector 6-28 VDC
Battery None, optional Gold or V mount battery plate
Nominal Power Consumption 11 Watts
Operating Temperature 0-40℃

XT range smaller, lighter & quieter
Built in 5-pin USB for camera control
Backwards compatible with Bolt 4K**
12 new frequency channels
Long range video quality improvements
SDI Eye pattern
6GHz has no DFS channels
Included in new Ultra 5 Bolt
Same price as Bolt 4K

** Bolt 6 uses different antennas for 6GHz
