Teradek Bolt 4K LT Hybrid MAX Kit – VM

OVERVIEW

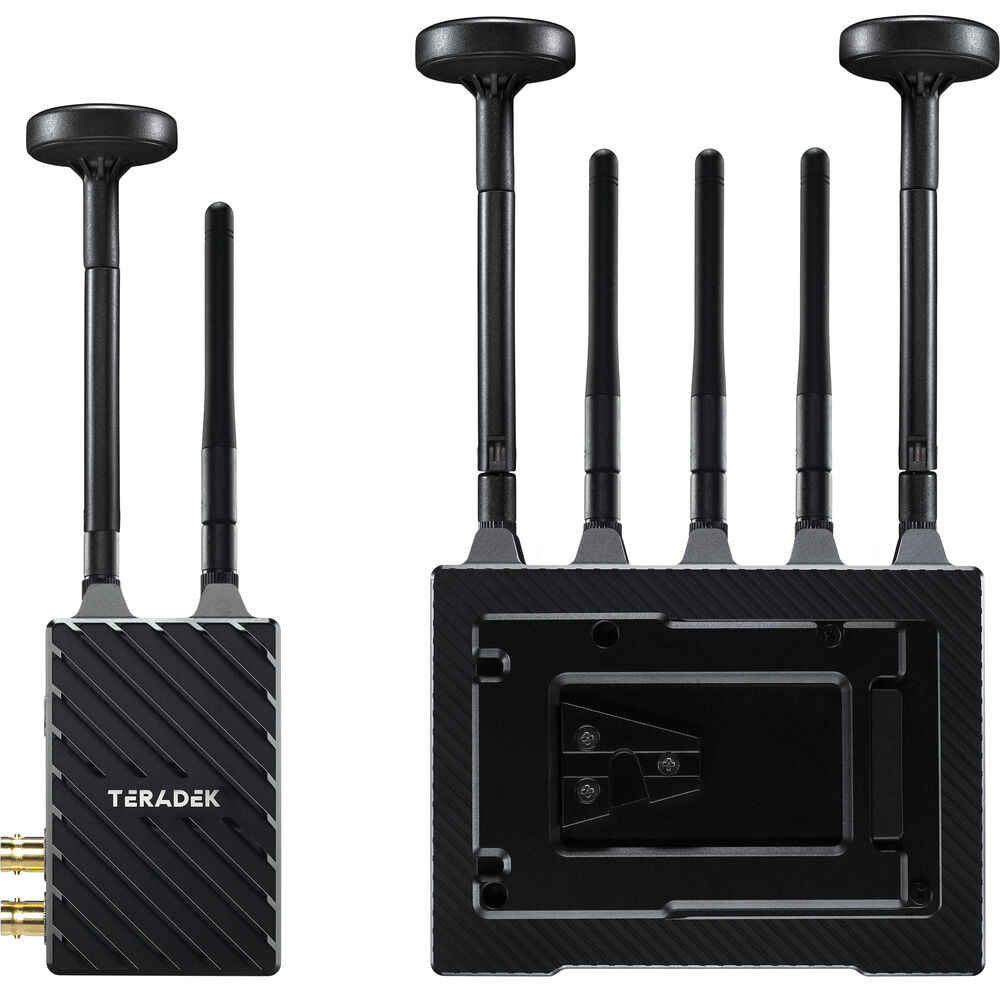

The Teradek 10-2280-V (102280V) Bolt 6 LT MAX TX/RX Deluxe V-Mount Kit is the latest addition to the Bolt family, featuring a range of new and improved features that make it the ultimate wireless solution for professional videographers. With its smaller, lighter and quieter design, the Bolt 6 offers improved portability and ease of use, making it a must-have for any production setup.

One of the standout features of the Bolt 6 is its built-in 5-pin USB port, which allows for camera control directly from the transmitter. This eliminates the need for additional cables and accessories, streamlining your setup and making it more efficient. Plus, with 12 new frequency channels, the Bolt 6 offers even more options for reliable and interference-free transmission.

The Bolt 6 is also backwards compatible with Bolt 4K, making it a seamless upgrade for current users. And with long range video quality improvements and an SDI Eye pattern, you can trust that your footage will be delivered with the highest level of clarity and reliability.

Another key feature of the Bolt 6 is its use of the 6GHz frequency band, which is a first in the industry. This allows for even greater bandwidth and less signal congestion, making it the ideal choice for challenging RF environments. And for those in the EU, the projected release of the 6GHz band is set for Q1 2023.

Despite all these advanced features, the Teradek Bolt 6 LT MAX TX/RX Deluxe V-Mount Kit is available at the same price as Bolt 4K, making it a cost-effective option for upgrading your wireless setup. So why wait? Upgrade to the Bolt 6 today and experience the ultimate in wireless video transmission.

INCLUDED IN BOX
1 x Bolt 6 LT MAX TX V-Mount
1 x Bolt 6 LT MAX RX V-Mount
1 x Antenna Array
2 x Bolt 4K LT RX Battery Cover
1 x Lightstand Adapter ¼-20in
1 x Hot Shoe Adaptor
2 x Screw Flat Head Phillips
2 x Ultra Thin HDMI Male Type A (Full) – HDMI Male Type A (Full) 18in/46cm Cable
1 x (Bit 118) 2pin Conn. to PowerTap – 18in/46cm Cable
1 x (Bit 718) 2pin Conn. to 2pin Conn. (Alexa) 18in/46cm Cable

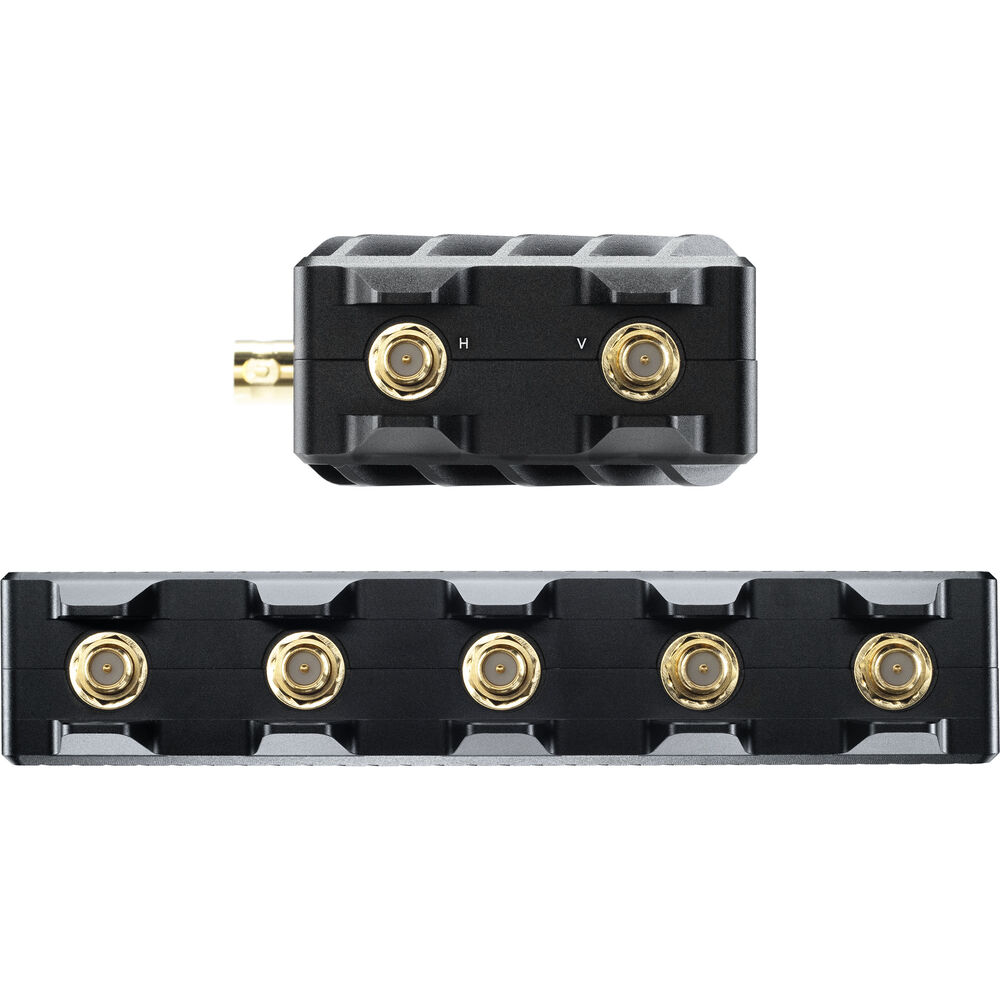

5 x RP-SMA Female to RP-SMA Female 4in/10cm Cable
2 x SDI – BNC to BNC Cable, 10in
1 x PSU 2pin Conn. to 18W AC Adapter (Int) – 6ft Cable
1 x Wooden Camera – Teradek Offset Mount for Bolt 4K LT TX
1 x Teradek Case XL – Bolt 6 LT TX/4RX and Antenna Array
1 x USB Male Type A (Full) – USB Male Type B (Micro) -3ft Cable
3 x Antenna 2dBi Rigid V 4.9-7.3Ghz RP-SMA

About The Teradek Bolt 6 LT MAX TX/RX Deluxe VM
Bolt 4K hits new frequencies

The Bolt 6 Series expands the power and performance of the zero-delay Bolt 4K family into the recently-unlocked U-NII 5 frequency spectrum, offering users a wealth of untapped bandwidth while remaining fully-compatible with Bolt 4K on traditional 5GHz bands.

The industry’s first 6GHz wireless solution.

The Bolt 6 transmits and receives over the newly-available 6GHz frequency band as well as the industry-standard 5GHz, dramatically reducing signal congestion in challenging RF environments while remaining fully cross-compatible across all Bolt 4K devices.*

*6Ghz projected release in EU Q1 2023

BOLT 6 LT MAX TX

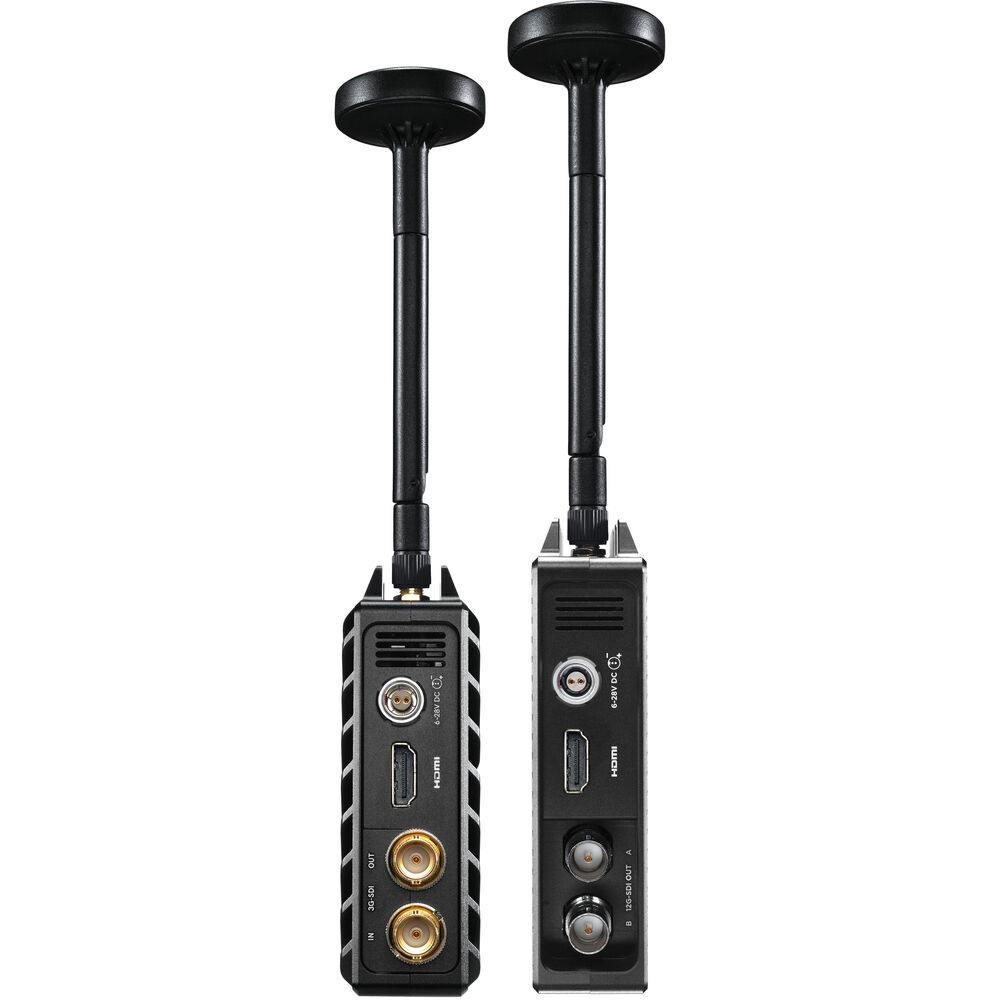

Video Inputs 3G-SDI SMPTE 424M standard / 75 Ω (BNC x 1)
1 x HDMI 1.4b Type-A receptacle
Video Outputs 3G-SDI SMPTE 424M standard / 75 Ω (BNC x 1)
Sdi Ancillary Data Support Supports reading metadata, timecode, and start/stop flags from most camera manufacturers.
Colour Sampling SDI: YCbCr 4:2:2, 10-bit/ HDMI: RGB/YCbCr 4:4:4 8-bit, 4:2:2 10-bit
Delay Tx To Rx <0.001sec Input Cross Conversion Yes, HDMI to SDI (4Kp23.98-30 HDMI input is scaled and looped out as 1080p23.98-30 on SDI loopout) Supported Resolutions 4Kp23.98/24/25/29.97/30 (HDMI only) 1080p23.98/24/25/29.97/30/50/59.94/60 1080psf23.98/24/25/29.97/30 1080i50/59.94/60 720p50/59.94/60 480p59.94 576p50 480i(NTSC)/576i(PAL) Video Compression Visually Lossless Colour Correction None Audio Compression 48kHz 24-bit PCM Audio Input Embedded SDI/HDMI Audio Input (2 Channel) Dimensions 60mm x 103mm x 33mm Weight 206g (7.3oz) Construction Milled Aluminium(Chassis) and regulation-compliant PCB Mountability Multiple mounting options with 1/4"x20 and M3 holes Configuration Interfaces OSD with Menu, Joystick Navigation Switches On/Off Switch Mobile App Bolt App Desktop App Bolt Manager application for OSX & Windows Usb Interface Functionality Upgrade via Micro-USB Bluetooth 2.4 GHz Antennas 2 External 2dBi antennas (included) Wireless Non-DFS Frequencies: 5.190 ~ 5.230 GHz, 5.755 ~ 5.795 GHz, 5.945 ~ 6.425GHz DFS Frequencies: 5.270 ~ 5.670 GHz Rf Channel Selection Auto, Manual Encryption AES-256, RSA-1024 key exchange Rf Power 23 dbm EIRP Range Up to 3000 ft, line of sight Unicast Multicast Can connect one Transmitter to up to 6 Receivers Noise Rejection Can coexist with WiFi and 5GHz cordless phones Can operate up to 6 sets in same location Interoperability Can transmit wireless video to all ranges of Bolt 4K XT and Bolt 4K LT receivers (limited by shortest range device) Power Input 2-Pin Circular locking Connector 6-28 VDC Battery None, optional Sony/Canon dual battery plate Nominal Power Consumption 9 Watts Operating Temperature 0-40℃ BOLT 6 LT MAX RX Video Outputs 3G-SDI SMPTE 424M standard / 75 Ω (BNC x 1) 1 x HDMI 1.4b Type-A receptacle Sdi Ancillary Data Support Supports reading metadata, timecode, and start/stop flags from most camera manufacturers. Colour Sampling SDI: YCbCr 4:2:2, 10-bit/ HDMI: RGB/YCbCr 4:4:4 8-bit, 4:2:2 10-bit Output Video Scaling No manual settings, but all signals above 4K30 for HDMI and 1080p60 for SDI are scaled down to 1080p for corresponding output Supported Resolutions 4Kp23.98/24/25/29.97/30 (HDMI only) 1080p23.98/24/25/29.97/30/50/59.94/60 1080psf23.98/24/25/29.97/30 1080i50/59.94/60 720p50/59.94/60 480p59.94 576p50 480i(NTSC)/576i(PAL) Video Compression Visually Lossless Test Pattern Generator Support Yes Spectrum Analyzer Yes Colour Correction 17x17x17 3D LUT (supports 10-bit colour) Audio Compression 48kHz 24-bit PCM Audio Output Embedded SDI/HDMI Audio Output (2 Channel) Dimensions 122mm x 94mm x 27mm Weight 292g (10.3oz) Construction Milled Aluminium(Chassis) and regulation-compliant PCB Mountability Multiple mounting options with 1/4"x20 and 3/8"x16 holes Configuration Interfaces OSD with Menu, Joystick Navigation Switches On/Off Switch Mobile App Bolt App Desktop App Bolt Manager application for OSX & Windows Usb Interface Functionality Upgrade via Micro-USB Bluetooth 2.4 GHz Antennas 5 External 2 dBi antennas (included) Wireless Non-DFS Frequencies: 5.190 ~ 5.230 GHz, 5.755 ~ 5.795 GHz, 5.945 ~ 6.425GHz DFS Frequencies: 5.270 ~ 5.670 GHz Rf Channel Selection Auto, Manual Encryption AES-256, RSA-1024 key exchange Rf Power 21 dbm EIRP Range Up to 3000 ft, line of sight Unicast Multicast Can connect one Transmitter to up to 6 Receivers Noise Rejection Can coexist with WiFi and 5GHz cordless phones Can operate up to 6 sets in same location Interoperability Can receive wireless video from all ranges of Bolt 4K XT and Bolt 4K LT transmitters (limited by shortest range device) Power Input 2-Pin Circular locking Connector 6-28 VDC Battery None, optional Gold or V mount battery plate Nominal Power Consumption 11 Watts Operating Temperature 0-40℃ XT range smaller, lighter & quieter Built in 5-pin USB for camera control Backwards compatible with Bolt 4K** 12 new frequency channels Long range video quality improvements SDI Eye pattern 6GHz has no DFS channels Included in new Ultra 5 Bolt Same price as Bolt 4K ** Bolt 6 uses different antennas for 6GHz
