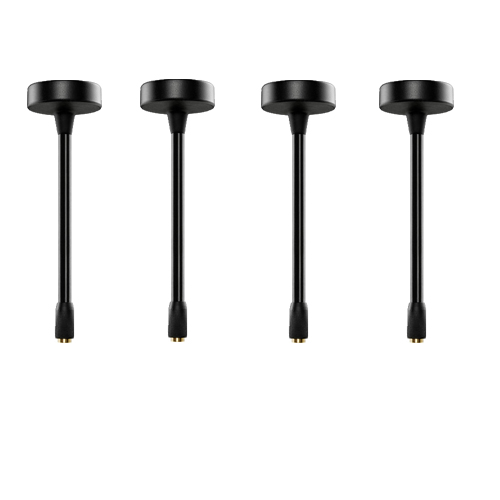

Teradek 6G Flexible H Antenna (Bolt 6/Bolt 4K)

Overview
Horizontally polarized antennas are designed to be used with V antennas in order to achieve better diversity. They are compatible with Bolt 6 and Bolt 4K systems and are sold as a set of 4 or individually. These antennas are meant to be used with Bolt 4K or Bolt 6 systems and are specifically designed for use with V antennas.

By using a pair of H antennas and a pair of V antennas on the transmitter, the diversity characteristics of the system are improved by combining the two perpendicular polarizations. This configuration allows for better reception and video quality in medium-range situations or environments with a lot of signal reflections. The combination of H and V antenna signals provides better diversity than V antennas alone, particularly in outdoor shooting scenarios.

Included in box
1x 6GHz Flexible H Antenna (Bolt 6 / Bolt 4K)

About the Teradek 6G Flexible H Antenna (Bolt 6/Bolt 4K)
Sold as a set of 4 or individually
Meant for Bolt 4K or Bolt 6 and to be used with V antennas.

These are designed special horizontally polarized antennas for use with the V antennas. Using a pair of H and a pair of V antennas on the TX improves the diversity characteristics of the system by combining the two perpendicular polarizations. For this H+V antenna configuration, two H antennas should be used at the TX and two at the RX as pictured. This configuration should allow for better reception and better video quality in medium-range situations and/or when the environment will create a lot of reflections for the wireless signal.

The combination of H and V antenna signals achieves better diversity than V antennas alone, especially while shooting outdoors. H antennas cause the RF signal from the transmitter to propagate in a perpendicular manner compared to the vertical signal from the V antenna.

Compatible with Bolt 6 / Bolt 4k

Horizontally polarized antennas for use with the V antennas to achieve better diversity.
Compatible with: Bolt 6 & Bolt 4K”
