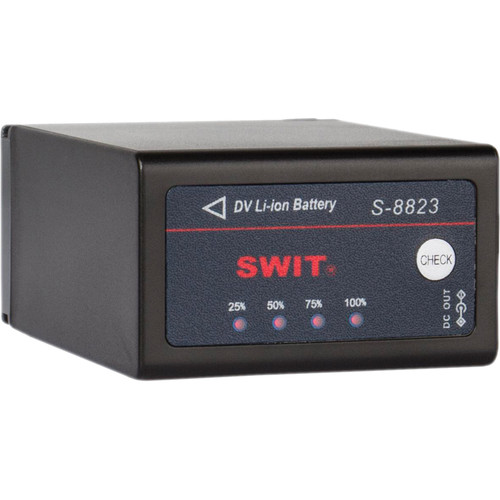

Swit S-8823 BN-VF Battery

Overview
The S-8823 is a Li-ion battery pack with a nominal voltage of 7.2V, which is comparable to the JVC BN-VF823 DV battery. It is designed as a replacement for the JVC BN-VF823 and is compatible with the JVC GY-HM100/101 series camcorder. The battery can exchange digital information with the camera and display the remaining power on the camera’s viewfinder. It has a capacity of 18Wh / 2.5Ah and a 4-level LED power indicator. The S-8823 also has a 7.2V Pole-tap DC output, which can provide power to on-camera accessories such as LED lights, monitors, and wireless transmitters. It can be charged using the SWIT Dual channel charger S-3602V or the SWIT S-3010D Portable Pole-tap Charger. The battery is made with high-quality lithium cells and has multiple circuit protections to ensure safety and durability.

SWIT has been a leading brand of broadcast camera batteries for over 15 years, thanks to the high-quality lithium cells used in their products. These cells have a long life, are durable, and have a smooth discharging curve. The S-8823 battery has a strong and durable ABS housing, as well as an MCU to monitor and protect against over-voltage, under-voltage, over-current, and extreme temperatures. The battery can also be optimized to prolong its life when the cells experience voltage differences. Please note that the SWIT S-3010D charger is not included and must be purchased separately.

Summary
Battery Capacity: 21Wh
Battery Capacity: 0-50Wh
Battery Indicator: Yes
Battery Mount / Type: JVC BN
Battery Technology: Li-ion
Voltage: 7.2v
Included in box
1x Swit S-8823 BN-VF Battery

About the Swit S-8823 BN-VF Battery
S-8823 is the replacement battery for JVC BN-VF823, compatible with JVC GY-HM100/101 series camcorder. S-8823 can exchange digital info with the cameras, and display remaining power info on the camera viewfinder. With 7.2V nominal voltage, the S-8823 has 18Wh / 2.5Ah capacity, and can run approx 2 hours on JVC GY-HM100 camcorder when LCD monitor is on. A 5.5/2.1mm pole-tap DC output socket is equipped on the side of S-8823 battery, for DC 7.2V (Nominate) connection. You can connect on-camera LED light, monitor or wireless transmitter on the pole-tap socket, and get power simultaneously with camera. The Max power from the pole-tap is 15W, 2A. The Pole-tap socket can also be used as charging input, by SWIT portable charger S-3010D.

The S-8823 battery has the 4-level LED power indicators to check the battery remaining capacity. You can get a quick view of capacity before using. The S-8823 can be charged on SWIT Dual channel charger S-3602V. It takes about 2 hours to charge from empty to 100%. And you can also use SWIT S-3010D* Portable Pole-tap Charger for S-8823. It will take 3 hours to fully charge.

Over more than 15 years, SWIT has been leading brand of broadcast camera batteries. The first reason is the high quality Lithium cells.

The high quality cells featured long life, durable, safety, and most of all, the cells has very little difference to each other, which ensures the high performance of the whole battery pack.

Moreover, the cells used have a smooth discharging curve by voltage, so that you can judge the remaining running time accordingly. Also when in storage, the self-discharging rates are very little, that extends the battery life effectively.

The S-8823 housing is made of high-impact ABS material, and the advanced plastic welding technical ensures the strong and durable structure.

The battery has an MCU to measure and record the real time data, and will cut off power when over-voltage, under-voltage, over-current, high-temperature of low-temperature is detected.

Meanwhile, the battery housing adopts high-impact ABS material, with waist design and non-slip tread for secure handling.

After the batteries are used for a period of time, the cells voltage might get difference, and our specially designed circuit can optimize the imbalanced cells, to prolong the battery life.

Please note: SWIT S-3010D charger is not included. Must be purchased separately.

Nominal Voltage 7.2V
Capacity 21Wh,4.5Ah
Max output power
Total 18W,2.5A
Pins 15W,2A
Pole-tap 15W,2A
Applicable camera JVC GY-HM100/101
Net weight Approx 130g
Dimensions 53×32×72mm

Li-ion battery pack of 7.2V nominal voltage
Comparable to JVC BN-VF823 DV battery
Display remaining power info on camera viewfinder
18Wh / 2.5Ah capacity
4-level LED power indicator
7.2V Pole-tap DC output
Multiple circuit protections
