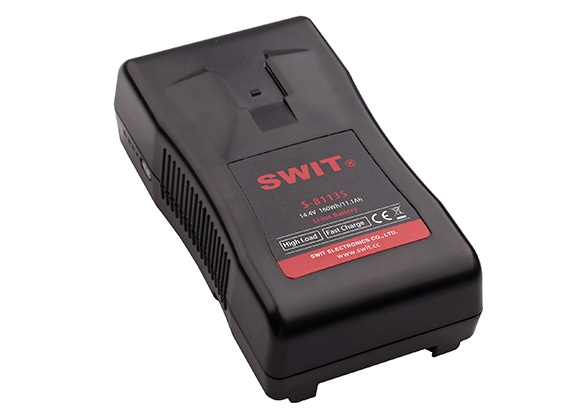

Swit S-8113S 160Wh V-Lock Battery

OVERVIEW
The S-8113S High-Load Li-ion Battery offers a large capacity of 160Wh and has a maximum output of 150W and 12A constant output. It also features a D-tap output socket, V-mount connection, and multiple circuit protections. This battery is ideal for high-power cameras and equipment, as it is able to provide constant power output without reducing battery life. It also has a 4-level LED power indicator for easy monitoring of remaining capacity.

The S-8113S battery is equipped with 16pcs of 18650 battery cells, allowing for a high capacity of 160Wh/11.1Ah. It supports 6A fast charging, reducing charging time by more than 50%. The battery also has a D-tap DC output socket with a maximum power of 120W and a 4-level LED power indicator for easy monitoring. With its high capacity and fast charging, the S-8113S is perfect for powering high-power cameras and equipment for extended periods of time.

SUMMARY
Battery Capacity: 160Wh
Accessory Type: Battery
Battery Capacity: 150-300Wh
Battery Indicator: Yes
Battery Mount / Type: V Mount
Battery Technology: Li-ion
Voltage: 14.4v
INCLUDED IN BOX
1x S-8113S V-Mount Battery

About The Swit S-8113S 160Wh V-Lock Battery
Adopt High-Load Li-ion Cells

Normal Li-ion batteries offer 100W/8A output and suitable for most ENG cameras, but the Cine Cameras such as ALEXA require around 85W high draw which is too heavy for the normal Li-ion batteries: the battery life will be reduced if long time full draw powering. Moreover, if there is a monitor, lighting work together, and total power will be above 100W, the normal batteries can not draw completely.

Using S-8113S high-load battery, you can get MAX 150W/12A constant power output, which can drive more high power cameras, lightings and other equipments easily, and won’t reduce battery life during long time high power output.

This battery features:

160Wh / 11.1Ah High Capacity

Consists of 16pcs 18650 battery cells, and reaches 160Wh/11.1Ah high capacity. Run approx 5 hours for normal 30W ENG cameras.

6A Fast Charging

S-8113S supports 6A fast charging, to save more than 50% charging time, can be charged from 0 to 80% after 1.5 hours, and fully charged within 2.5 hours.

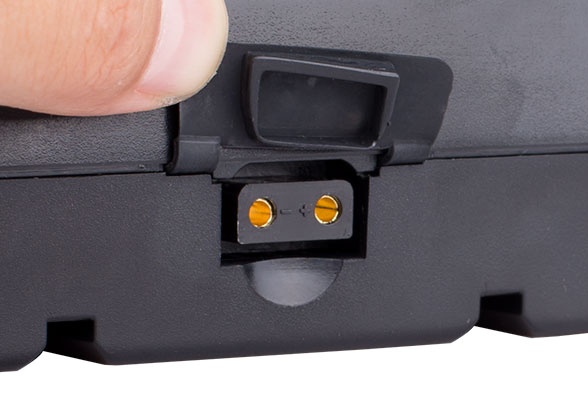

Build-in D-tap DC Output Socket

A D-tap DC output socket is equipped on the top side of S-8113S battery, for DC14.4V (Nominate) connection, such as on-camera lights, monitors, wireless transmitter, etc. The Max Power from D-tap is 120W, 10A.

4-level LED Power Indicator

On the side of the battery, there’re 4-level LED power indicators to check the battery remaining capacity. You can get a quick view of capacity before using.

Normal Voltage 14.4V
Capacity 160Wh/11.1Ah
Max output power 150W
Max output current 12A

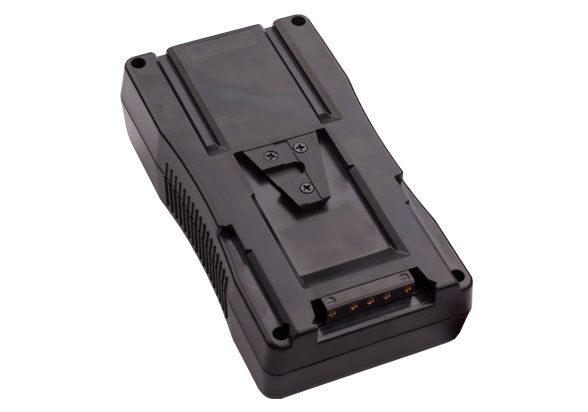

Mount type V-mount
Operation temperature 0- 40°C
Net Weight Approx. 0.9kg
Dimension 165x90x51mm

Li-ion, 14.4V, 160Wh – large capacity
Max 150W, 12A constant output
D-tap output socket
4-level LED power indicator
V-mount connection
Multiple circuit protections
