Overview

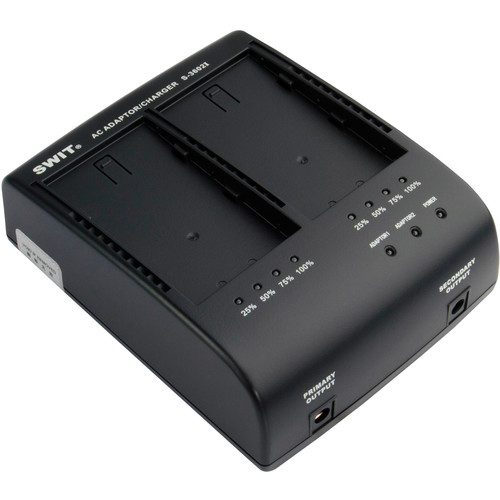

The SWIT S-3602I is a versatile charger designed specifically for the SWIT S-8i50 battery. It is also compatible with the SSL-JVC50 battery commonly used on JVC GY-HM600/650/HMQ10 cameras. This charger features 2-ch simultaneous charging, allowing you to charge two batteries at once. It also has 2 DC adapting output sockets, providing a total of DC 8.4V, 3.5A output. The charger also comes with 4-level LED charging indicators that display the real-time capacity of each battery being charged.
The S-3602I is a dual channel charger, with each channel having a DC 8.4V, 1.8A charging output. This means you can charge two batteries simultaneously, saving you time and ensuring you always have a spare battery ready to go. The charger also comes with optional accessories, such as the S-7500i dummy battery adaptor, which allows you to adapt the charger to work with JVC GY-HM600/650 cameras or other equipment with SSL-JVC50 battery mounts. The S-3602I is a reliable and convenient charger for your SWIT S-8i50 and SSL-JVC50 batteries.
Summary
Battery / Mount Compatibility: JVC SSL
Charging Ports: 2
Included in box
1x Swit S-3602I Dual Charger.
About the Swit S-3602I Charger and Adaptor
SSL-JVC50 DV battery Charger
S-3602I is a dual channel charger for SWIT S-8i50, and compatible with SSL-JVC50 DV battery that used on JVC GY-HM600/650/HMQ10 cameras.
Dual Channel Simultaneous Charging
S-3602I has 2 charging channels, with DC 8.4V, 1.8A charging output for each channel, and can charge 2 batteries simultaneously.The 4-level LED charging indicators are provided for each channel,which indicate the real time capacity by percentage when charging.
AC-DC Adapting Output
S-3602I has 2x 5.5mm/2.1mm pole sockets for DC adapting output. The DC outputs work simultaneously and provides DC 8.4V, 3.5A in total. Optional accessory: S-7500i dummy battery adaptor for adapting JVC GY-HM600/650 cameras, or the equipments with SSL-JVC50 battery mounts.
Power input AC 100V-240V 50/60Hz
Charging output DC 7-8.4V, 1.8A×2
Adapting output DC 8.4V, 3.5A
Applicable battery S-8i75, S-8i50
SSL-JVC50, SSL-JVC75
Applicable camera JVC GY-HM600/650, HMQ10
Dimensions 136×110×47mm
Net weight Net 0.36kg; With package 0.65kg
Charger for SWIT S-8i50 battery
2-ch simultaneous charging
Compatible with SSL-JVC50 battery
2 DC adapting output sockets
4-level LED charging indicators
