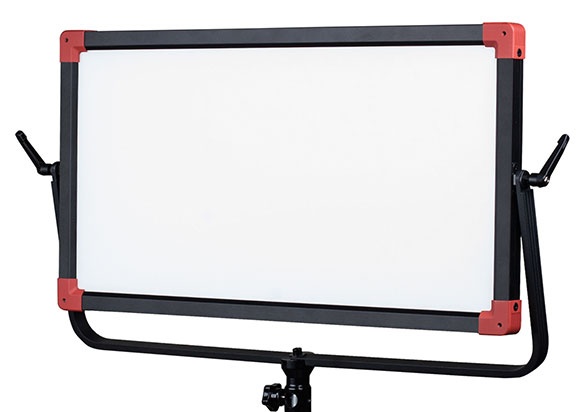

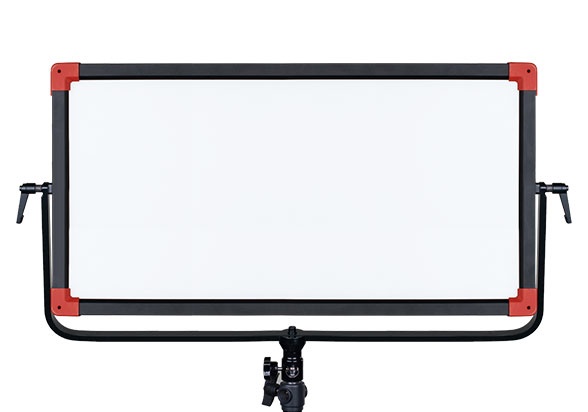

Swit PL-E90L Bi-Colour LED Panel

OVERVIEW
The PL-E90L is a unique long ratio panel light that measures 0.5×3 feet in size. It features 480pcs of edge mounted SMD-LEDs and utilizes a special 90° light guide technology. With a power of 90W, it can produce a brightness of 2000Lux at 1 meter. The light also offers flick-free dimming from 0-100% and allows for continuous adjustment of color temperature from 2700K to 6500K. It has a high CRI of 99 and TLCI of 99, ensuring accurate color representation. The PL-E90L can be controlled through DMX512 or interaction control and has a USB power out for wireless DMX receivers. It can be powered by V-mount or Gold mount batteries and comes with a convenient LCD display for monitoring color, dimming, DMX, and battery information. The light also has a wide input voltage range of DC 11-36V and is equipped with 2-leaf metal barn doors for added versatility.

The PL-E90L is a slim and portable light that is perfect for vertical lighting of people, making it ideal for interview kits. It has a slim size of only 21mm, thanks to the side mounted SMD-LEDs and innovative laser dots 90° reflection board. This allows for a high efficient, bright, soft, and even beam of light that can wrap around objects. The light also offers a rotatable and tiltable lighting angle for added flexibility. With its high CRI and TLCI ratings, the PL-E90L ensures that objects maintain their original colors under the light. The control panel at the rear of the light supports DMX512, USB power out, and a wide input voltage range. It also has a convenient LCD screen for easy monitoring. The light is also equipped with 2-leaf metal barn doors that can be easily removed if needed.

INCLUDED IN BOX
1x PL-E90L light with barndoor
1x Light stand connector
1x AC-DC adaptor
1x Carrying bag

About The Swit PL-E90L Bi-Colour LED Panel
90W Long Ratio LED Panel

PL-E90L is a 0.5×3 feet size long aspect ratio light for soft vertical lighting of people. The PL-E family slim size is portable for interview kit application.

21mm Slim Size – Side Mounted SMD-LED

PL-E90L has SMD-LEDs side mounted on the inner edge of the frame, and with SWIT innovative laser dots 90° reflection board, the light outputs high efficiant bright, soft and even beam to wrap around objects.

The side mounted LEDs greatly reduce the light thickness. It’ s only 21mm, slim and portable for field application.

90W, 2000 Lux @ 1 meter – 2700K-6500K Continuously Adjust

PL-E90L mixed with 90W 2700K LEDs and 90W 6500K LEDs, outputs 90W 2200Lux at 1 meter high intensity and any color temperature between 2700K to 6500K, supports 0 to 100% PWM digital dimming, smoothly and non-flickering.

CRI 99, TLCI 99

PL-E90L adopts high end surface mounted LEDs with super high Color Rendering Index (CRI) Ra 99, and Television Lighting Consistency Index (TLCI) 99. Objects will keep their original colors exactly under the light.

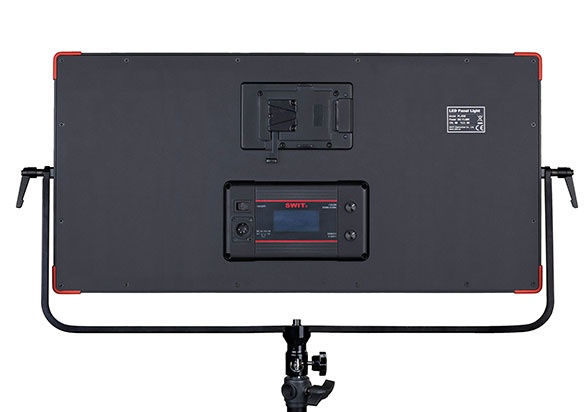

Control Panel

The rear control panel supports DMX512 in and out, USB power out for wireless DMX adaptor, DC 11-36V wide input. The LCD screen displays dimmer, color temperature, DMX address and power status.

Rotatable Lighting Angle

PL-E90L provides a light stand connector with 360° rotatable and 180° tiltable.

2-leaf Barn Doors

PL-E90L installed with 2-leaf metal barn doors and also could be removed easily by 4 screws.

LED 480pcs SMD LEDs
Illuminance 2000Lux @ 1m
Beam angle 70°
Colour Temperature 2700K～6500K
CRI 99
TLCI 99
Power 90W
Working voltage DC11V～36V
Dimensions 839×163×21mm
Lighting area 781×104mm

0.5×3 feet long ratio panel light
480pcs edge mounted SMD-LEDs
Unique 90° light guide technology
90W power, 2000Lux @ 1meter
0-100% flick-free dimming
2700K-6500K continuously adjustable
CRI Ra 99, TLCI 99
DMX512 control and interaction control
USB power out for wireless DMX receiver
LCD display colour, dimmer, DMX and battery info
DC 11-36V wide input voltage
Power by V-mount or Gold mount battery
With 2-leaf metal barn doors
