Swit PL-E90D Bi-Colour 3-Light Kit

OVERVIEW
The PL-E90D is a highly advanced lighting solution, featuring 480pcs edge mounted SMD-LEDs and unique 90° light guide technology. With 90W of power, it can produce 2200Lux of brightness at 1 meter, making it perfect for field video productions, interviews, and broadcast studios. The light also offers flick-free dimming from 0-100%, a wide beam angle of 70°, and a continuously adjustable colour temperature of 2700K-6500K. It boasts a super high CRI of 98 and TLCI of 99, ensuring accurate colour representation. The LCD display provides information on dimmer, colour, DMX control, and battery life.

Additionally, the PL-E90D offers various control options, including DMX512 and Interaction control modes, and can be powered by V-mount or Gold mount batteries. It also has the option to add a 4-leaf barn door and 40° honeycomb for even more versatility. With its slim, all-metal housing and portable design, the PL-E90D is a top-of-the-line lighting solution for any professional setting.

SUMMARY
Type: Single Light
INCLUDED IN BOX
3x PL-E90D Lights
3x AC-DC Power adaptors
3x Lighting tripods (70-223cm)
1x Trolley Case

About The Swit PL-E90D Bi-Colour 3-Light Kit

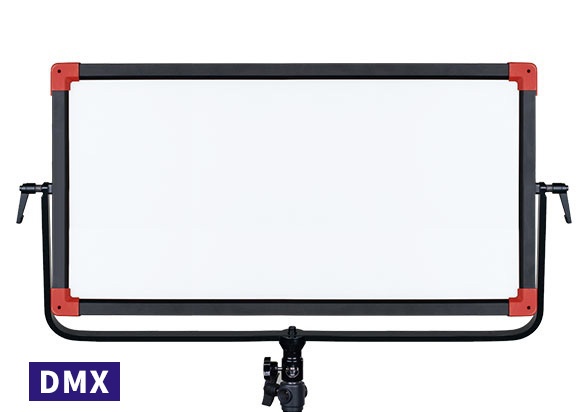

480pcs Edge Mounted LEDs

Super thin, area light, soft and glare-less

PL-E90D is specially designed for field portable lighting applications. 480pcs SMD-LEDs are mounted in the inner edge of the light frame, and with SWIT unique 90° light guide technology, PL-E90D can output bright, soft and equally spread light, meanwhile, the light body is slim enough and portable, which is an ideal light source for interview kit，field video productions, and broadcast studios.

Laser Dots 90° Light Guide

High efficiency and super bright

The traditional edge mounted LED lights are always not so bright, because half of the light will go to the backside, even if there’s reflection board, there’s still a lot of light lost.

SWIT innovative technology is to add laser dots with calculated spaces on the reflection glass, so that the multi angles of edge light will be converged on the laser dots, and output 90° to the front with minimum light lost. Then the slim edge mounted light can also be high brightness.

2200 Lux @ 1 meter

0-100% flick-free dimming

PL-E90D outputs 90W power, feeds 2200Lux luminance at 1-meter distance (centre), much brighter than other similar size LED panels. The effective beam angle reaches 70°, bounded by 50% decline. PL-E90D also supports 0 to 100% PWM digital dimming, smoothly and non-flickering.

Bi-colour Temperature

2700K-6500K continuously adjustable

PL-E90D alternated with 2700K and 6500K LEDs, and the output colour temperature can be continuously adjustable between 2700K and 6500K.

High Colour Reveal Ability

CRI Ra 98; TLCI 99

CRI (Colour Rendering Index) is a measure of the ability of a light source to reveal the colours of various objects faithfully in comparison with a natural light source. And TLCI (Television Lighting Consistency Index) is special for the colour reveal ability by camera sensor. Max value 100.

The normal LED light has 80-85 CRI or TLCI, while PL-E90D offers the super high CRI at 98 and TLCI at 99, and will not lost the object original colours.

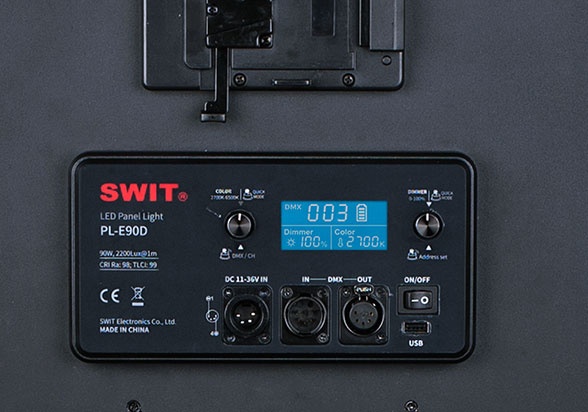

LCD Screen Display

Dimmer / colour / DMX channel, battery info

The rear LCD screen can display the current dimmer percentage, colour temperature value, DMX channel and CH channel, and remaining battery indications.

Quick Adjust Mode

By pressing the adjusting knob

PL-E90D supports quick adjusting brightness and colour temperature:

Press the Dimmer knob, it will switch from 1% stepping to 10% stepping, to quick adjust brightness;

Press Colour temperature knob, it will switch from 50K stepping to the following commonly used colour temperature selection: 2700K / 3200K / 4500K / 5600K / 6500K.

DMX512 control

Dimmer and colour temperature

PL-E90D adopts standard 5-pin DMX in/out port, supports DMX512 protocol, and adjusts dimmer and colour temperature by DMX controller.

The dimmer and colour temperature occupy 1 DMX address respectively.

Press and hold dimmer knob for 2 sec to enter DMX address setting, range from 001 to 512. 

Interaction Control Mode

Control the lights each other without a DMX controller

Press and hold colour temperature adjusting knob for 2 sec, the light will enter “CH” interaction control mode. In this mode, connect all the lights by DMX cables, and operate any of the light, all the other lights with same CH addresses can be controlled together.

Press and hold dimmer knob for 2 sec to enter CH address setting, range from 001 to 512.

Interaction Control Mode Demonstration

Connected by DMX cables

For example, operate any of the CH 001 light, all the other CH 001 lights can be controlled together.

Max 512 CH addresses can be set.

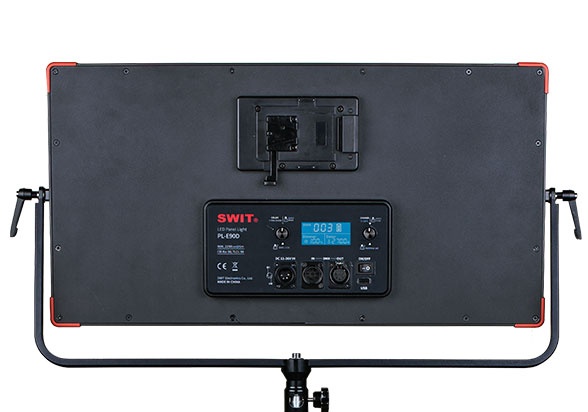

11-36V Wide Input Voltage

By V-mount/Gold mount battery or 4-pin XLR

PL-E90D supports 11-36V wide range voltage input, with 4-pin XLR DC socket, and equipped with V-mount or Gold mount plate to power by batteries.

(The default battery plate is V-mount.)

Barn Door / Honeycomb

Optional purchase, Easy to assemble

PL-E90D has all-metal housing, and provides the 4-leaf metal barn door and 40° metal honeycomb accessories, easy to assemble.

Barn door (Model # LA-HE90) and Honeycomb (Model # LA-GE90) are optional purchased.

LED 480pcs SMD LEDs
Illuminance 2200Lux @ 1m
Beam angle 70° (50% bounded)
Colour Temperature 2700K～6500K
CRI 98
TLCI 99
Power Approx. 90W
Working voltage DC11V～36V
Dimension 650 x 403 x 48mm
Lighting area 526 x 257mm
Weight 4.75kg
480pcs edge mounted SMD-LEDs
Unique 90° light guide technology
90W power, 2200Lux @ 1meter
0-100% flick-free dimming
70° effective wide beam angle
2700K-6500K continuously adjustable
Super high CRI Ra 98, TLCI 99
DMX512 control and Interaction control
LCD display colour, dimmer and battery info
DC 11-36V wide input voltage
Power by V-mount / Gold mount battery
Strong all-metal housing with U-stand
Provide portable 3-light kit with tripods
Optional 4-leaf barn door and 40° honeycomb
