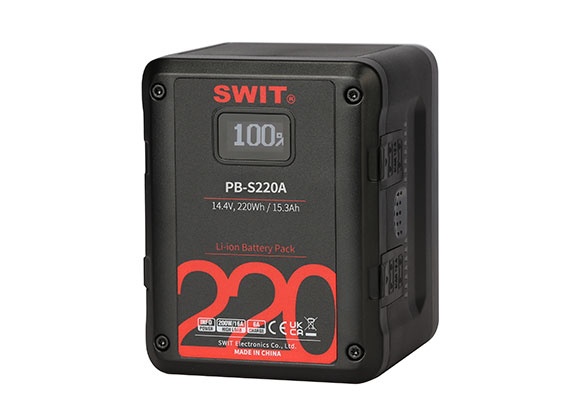

Swit PB-S220A Battery – Gold Mnt

OVERVIEW
Square-shaped cine-cameras require a high load of 150W and 12A, which can be achieved with the PB-S series camera batteries. These batteries feature 4 D-tap output sockets, 1 USB 5V/2A output socket, and LCD display for accurate remaining run time. They also offer multiple circuit protections and are compactly designed to match with most cine-cameras. The PB-S series batteries consist of 24 high-quality 18650 battery cells and have a nominal voltage of 14.4V, providing a high capacity of 220Wh/15.3Ah. They can run for approximately 7 hours for ENG cameras and 2.5 hours for ARRI ALEXA.

While normal Li-ion batteries offer 100W/8A output and are suitable for most ENG cameras, they are not suitable for cine-cameras like ALEXA, which require a high draw of 85W. This can cause a reduction in battery life if used for long periods. The PB-S220A high-load battery, on the other hand, offers a constant power output of 150W/12A and can easily power high-power cameras, LCD monitors, and other equipment without reducing battery life. It also has 4 D-tap DC output sockets and 1 USB 5V/2A output for powering other on-camera equipment and charging portable devices. The PB-S220A also supports 6A fast charging with the S-3812 fast charger, reducing charging time by more than 50%. The build-in LCD displays remaining power percentage, working time, low power warning, and battery cycle times, and is compatible with both SONY and RED cameras.

SUMMARY
Battery Capacity: 220Wh
Battery Capacity: 150-300Wh
Battery Indicator: Yes
Battery Mount / Type: Gold Mount
Battery Technology: Li-ion
Voltage: 14.4v
INCLUDED IN BOX
1x PB-S220A Battery – Gold Mount

About The Swit PB-S220A Battery – Gold Mnt
PB-S series camera batteries are compact designed, shorter than normal batteries, and match perfectly with most of the Cine-cameras. Consists of 24pcs of high class 18650 battery cells, nominal voltage is 14.4V and reaches 220Wh / 15.3Ah high capacity. Can run approx 7 hours for normal ENG cameras and approx 2.5 hours for ARRI ALEXA.

Normal Li-ion batteries offer 100W/8A output and suitable for most ENG cameras, but the Cine Cameras such as ALEXA require around 85W high draw which is too heavy for the normal Li-ion batteries: the battery life will be reduced if long time full draw powering. Moreover, if there’re monitor, wireless system work together, and total power will be above 110W, and the normal batteries cannot draw completely.

Using PB-S220A high-load battery, you can get MAX 150W/12A constant power output, which can drive more high power cameras, LCD Monitor and other equipments easily, and won’t reduce battery life during long time high power output.

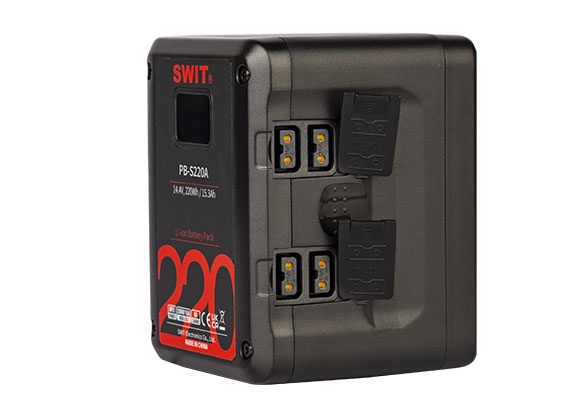

PB-S220A is equipped with 4 D-tap DC output sockets, Max total load is 120W/10A, which can power other on-camera equipments together.

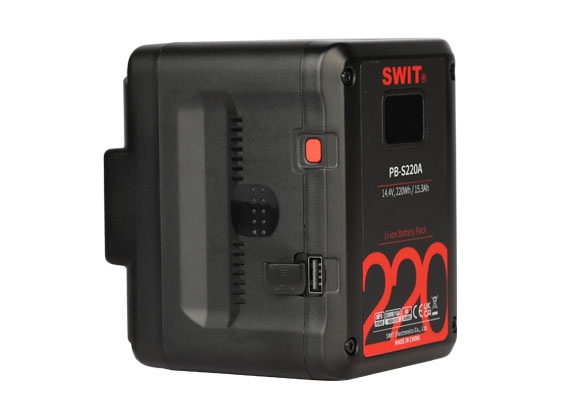

PB-S220A is equipped with 1x USB 5V/2A output, which can be used to charge mobile phones, tablets and other portable devices.

PB-S220A supports 6A fast charging by SWIT S-3812 fast charger, to save more than 50% charging time. The 220Wh PB-S220A battery can be charged from 0 to 80% after 2.3 hours, and fully charged within 3.5 hours.

The build-in LCD can displays remaining power percentage, remaining working time, low power warning, and battery cycle times, and support viewfinder info display on both SONY and RED cameras.

Battery plate Gold-mount
Nominal voltage 14.4V
Capacity 220Wh,15.3Ah
Max output
Electrodes 150W,12A
D-TAP 120W,10A
USB 10W,5V/2A
In total 150W
Dimension 121×95×99mm
Net weight 1.435kg
Max charging current 6A
D-TAP socket number 4
USB socket number 1

Square shape design for Cine-cameras
Max 150W, 12A high load
4× D-tap output sockets
1× USB 5V/2A power output sockets
6A fast charging by charger S-3812S
LCD display accurate remaining run time
Display power info in both SONY & RED
Multiple circuit protections
