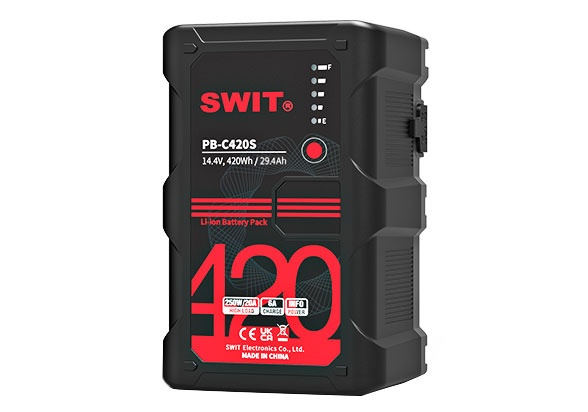

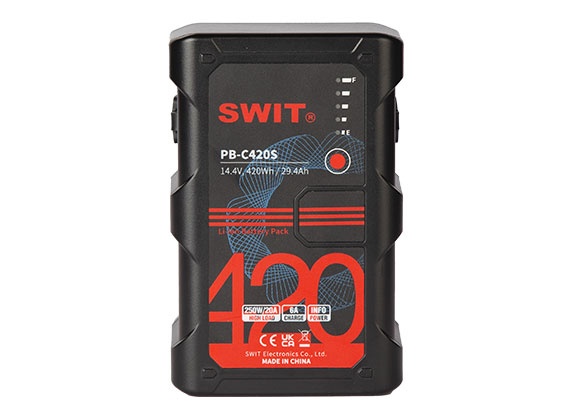

Swit PB-C420S 420Wh V-Mount Battery

OVERVIEW
The Swit (PB-C420S) 420Wh High-load Heavy-duty Battery is a powerful V-mount battery that is perfect for long term use or high power draw lights. With a capacity of 420Wh and 29.1Ah, it is the world’s largest handheld V-mount battery. It features 2x D-tap power sockets and 5-LED digital power indicators. It also has a SONY/RED viewfinder power info display and multiple circuit protections to ensure safety.

The PB-C420S is capable of providing a constant high load of at least 250W/20A, with a peak load of up to 305W, making it suitable for driving high power Cine cameras and on-camera devices. It also supports fast charging, with a 100W/6A charging capacity that can charge the battery from 0 to 80% in just 3.9 hours. With its reliable SWIT quality and multiple circuit protections, the PB-C420S is a dependable choice for professionals in the broadcast and film industry.

SUMMARY
Battery Capacity: 420Wh
Battery Capacity: 300+Wh
Battery Indicator: Yes
Battery Mount / Type: V Mount
Battery Technology: Li-ion
Voltage: 14.4v
INCLUDED IN BOX
1x Swit (PB-C420S) 420Wh High-Load Heavy-Duty Battery, V-Mount

About The Swit PB-C420S 420Wh V-Mount Battery
Swit (PB-C420S) 420Wh High-load Heavy-duty Battery, V-Mount, also ideal for long term use or high power draw lights

ONE BATTERY, ONE DAY
PB-C420S reaches the world’s largest capacity: 420Wh of handheld V-mount battery, long time power supply for cameras, monitors, lights and many power hungry devices of broadcast and film industry.

14.4V, 420Wh, 2x D-tap
PB-C420S consists of 24pcs Li-ion cells, 14.4V nominal voltage, 420Wh, 29.1Ah large capacity, and provides with 2x D-tap sockets at left and right side, for camera-top devices.

250W Constant High Load
PB-C420S outputs at least 250W/20A high load even at 1% capacity (Peak load up to 305W), to drive high power Cine cameras and on-camera devices together. The high load cells will also ensure battery life comparing to normal load batteries if long time full load output. Over current protection: 24A.

100W 6A Fast Charging
PB-C420S supports 100W/6A fast charging to save more than 50% charging time. The 420Wh battery can be charged from 0 to 80% after 3.9 hours, and fully charged within 5.3 hours.

Reliable SWIT Quality
The PB-C420S internal controller supports multiple protection circuit, to detect any abnormal conditions includes over load, over charging, over discharging, high temperature, short circuit, etc, and actively protect the devices from potential safely issue. SWIT battery will always be your reliable choice.

Nominal Voltage 14.4V
Capacity 420Wh/29.1Ah
Power Load 250W / 20A constant, 305W peak
Charging DC 16.8V, 6A
D-tap 2x D-tap 150W/10A in total

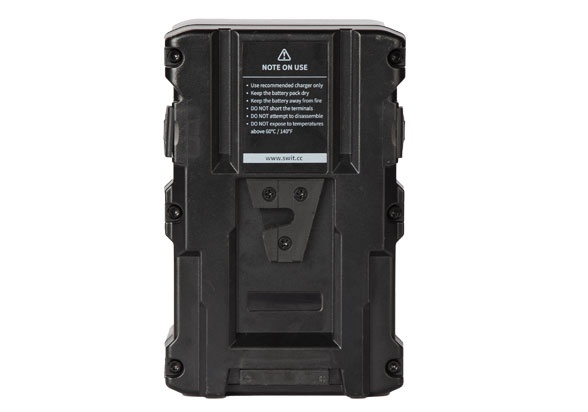

Mount Type V-mount
Charging Temperature 0-40°C
Discharging Temperature -20°C-50°C (Capacity and Max Load may decrease when operating below 0°)
Net weight Approx 2.07kg
Dimensions 155×101×80mm

14.4V, 420Wh/29.1Ah large capacity
250W/20A constant load, 305W peak load
100W/6A fast charging support
2x D-tap power sockets, 150W load
5-LED digital power indicators
SONY/RED viewfinder power info display
Multiple circuit protections
