Swit Mino-S140 Pocket V-Mount Battery

OVERVIEW
The MINO-S140 is a compact V-mount battery with a capacity of 140Wh/9.7Ah. It can handle a constant high load of 150W/12A and has multiple output options, including 1 D-tap, 1 USB-A, and 1 USB-C. The battery also features a 4-step LED power indicator and provides power information for both SONY and RED devices. It is designed with wire-free internal technology and has various circuit protections in place.

Despite its small size, the MINO-S140 offers a 43% increase in capacity compared to the popular SWIT 98Wh Pocket V-mount battery. It can be charged via USB-C with a PD charger and can fully charge in just 3.5 hours. The USB-C port also allows for a 65W power output, making it suitable for powering laptops and other devices on film sets. This battery is a convenient and reliable option for powering various devices on the go.

SUMMARY
Battery Capacity: 140Wh
Battery Capacity: 99-150Wh
Battery Indicator: Yes
Battery Mount / Type: V Mount
Battery Technology: Li-ion
Voltage: 14.4v
INCLUDED IN BOX
1x 140Wh Pocket V-Mount Battery Pack

About The Swit Mino-S140 Pocket V-Mount Battery
Tiny Size 140Wh Battery

The smallest 140Wh V-mount battery you’ve ever seen!
MINO-S140 is a pocket fit size large capacity battery with 65W USB-C socket, for cameras, monitors, accessories, tablets, laptops and all kinds of devices in the filmset.

150W/12A High Load

MINO-S140 consists of 8 high capacity cells, with 140Wh/9.7Ah high capacity, and support at least 150W/12A constant high load output, for high power cine cameras and lights.

A Little Bigger, Much More Capacity

Comparing with the hot selling SWIT 98Wh Pocket V-mount battery, the new MINO-S140 provides 43% more capacity, but still with tiny size for convenient carrying

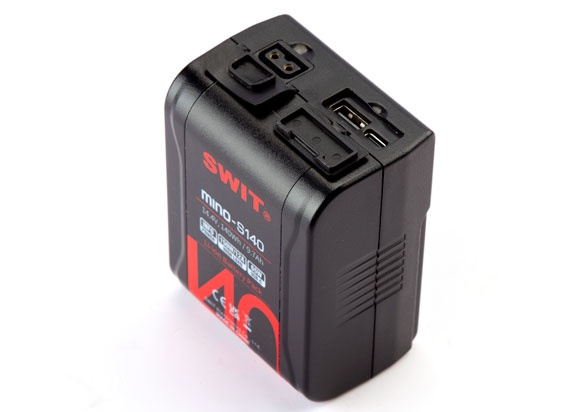

D-tap, USB-A and USB-C

The tiny size MINO-S140 didn’ t compromize on DC sockets.D-tap x1 – 150W/12A high load (Support charging input) USB-A x1 – 5V/2A outputUSB-C x1 – 65W output and 48W charging input

USB-C 48W Charging Input

MINO-S140 battery can be charged by USB-C charger, supports PD 5V 2.4A, 9V 2.4A, 12V 2.4A, 15V 2.4A and Max 20V 2.4A, which means you can fully charge the 140Wh battery within 3.5 hours.

USB-C 65W Power Output

You can power laptop via USB-C by MINO-S140 battery on the filmset. Supports 5V 3.25A, 9V 3.25A, 12V 3.25A, 15V 3.25A and Max 20V 3.25A, BC1.2, PD2.0/3.0, QC2.0/3.0, FCP, SCP multiple protocols.(For Macbook Air/13, Macbook Pro 13/15/16, Huawei Matebook E/12/X13/XPRO, Thinkpad, HP, ASUS, Dell and almost all laptops with USB-C ports)

Wire-Free Internal Tech

MINO-S140 has innovative “Wire-Free” internal technic. All the cells, D-tap, USB-A, USB-C, power indicator devices are directly soldered onto PCB, no connecting wires, to reduce internal resistance effectively, and make the circuit stable, safe, and reliable.

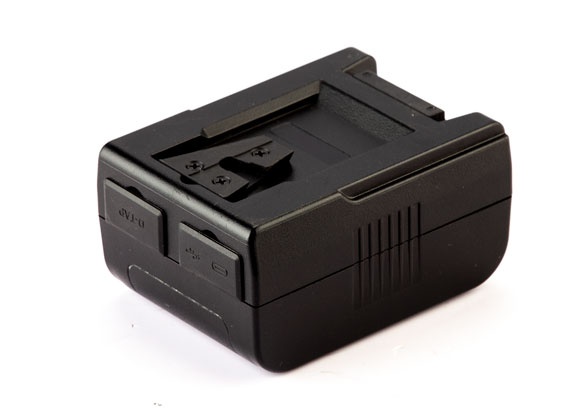

Battery plate V-mount
Nominal voltage 14.4V
Capacity 140Wh, 9.7Ah
Power IN&OUT Electrodes: 150W 12A out, 16.8V 3A in
D-tap: 150W 12A out, 16.8V 3A in
USB-A: 10W, 5V/2A out
USB-C: Max 65W out, 5V/9V/12V/15V/20V(Max) 3.25A
BC1.2, PD2.0/3.0, QC2.0/3.0, FCP, SCP
Max 48W in, 5V/9V/12V/15V/20V(Max) 2.4A
Dimension 105×79×55.5mm
Charging Temperature 0-40°C
Discharging Temperature -20°C-50°C (Capacity and Max Load may decrease when operating below 0°)
Net weight 713g

Tiny V-mount battery, Pocket fit
140Wh/9.7Ah high capacity
150W/12A constant high load
1x D-tap output & charging input
1x USB-A 5V/2A output
1x USB-C 48W input & 65W output
4-step LED power indicator
Power info for both SONY & RED
Wire-Free internal technic
Multiple circuit protections
