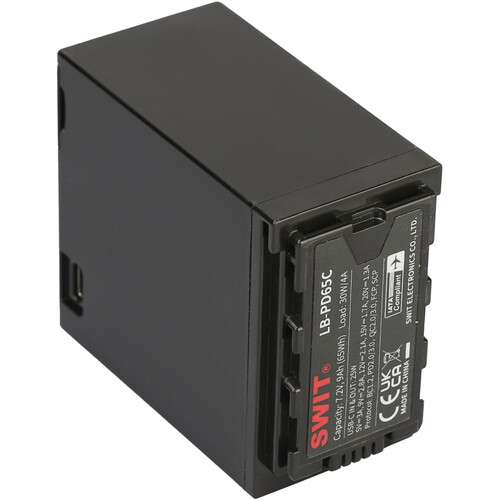

Swit LB-PD65C 65Wh D-type DV Battery

Overview
The LB-PD65C is a 65Wh large capacity battery that is compatible with various Panasonic cameras, including the AU-EVA1, AG-DVX200, AJ-PX230/270, UPX360, AG-CX350, and UX90/180. It has a nominal voltage of 7.2V and a capacity of 65Wh/9.02Ah. With a constant power load of 30W/4A, it also features a built-in 12V D-tap output and a 25W USB-C input and output. The battery has a 4-level LED power indicator and is equipped with multiple circuit protections.

The LB-PD65C is made up of 6 battery cells and can power video devices for a longer period of time. It also offers a regulated 12V D-tap output and a USB-C socket that supports fast charging for iPhone 12/13 and other USB-C devices. The battery can be charged using a USB-C charger and has a 4-way charging capability when used with the SWIT LC-D421 charger. With its diverse features and compatibility, the LB-PD65C is a reliable choice for powering camera top devices.

Summary
Battery Capacity: 65Wh
Battery Capacity: 50-98Wh
Battery Indicator: Yes
Battery Mount / Type: D-Type
Battery Technology: Li-ion
Voltage: 12v
Included in box
1x Swit (LB-PD65C) 65Wh D-type DV Battery with 12V D-tap and USB-C

About the Swit LB-PD65C 65Wh D-type DV Battery
65Wh Panasonic VBR59 Battery with D-tap and USB-C
LB-PD65C is a 65Wh large capacity Panasonic AG-VBR59 compatible battery with regulated 12V D-tap output and 25W USB-C in/out, diversity power for camera top devices.

65Wh Large Capacity
LB-PD65C consists of 6pcs battery cells and has 65Wh/9020mAh large capacity to keep your video devices powered for longer time. The constant power load is 30W/4A.
Compatible Panasonic cameras: AU-EVA1, AG-DVX200, AJ-PX230/270/UPX360 AG-CX350, AG-UX90/180, AG-AC30, etc.

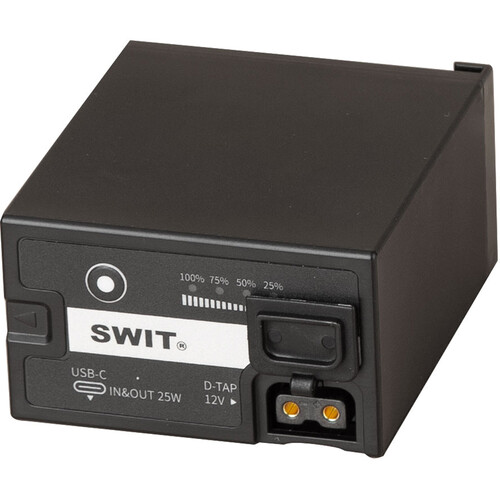

Reg. 12V D-tap Output
The LB-PD65C battery provides a D-tap power output socket of regulated 12V voltage, widely compatible with various kinds of video devices.
* The D-tap has 7.2V to 12V (Reg.) conversion and it’ s not allowed to charge input via this D-tap socket.

USB-C 25W Output
Fast Charging iPhone 12/13
LB-PD65C provides a USB-C sockets, supports 5V 3A, 9V 2.8A, 12V 2.1A, 15V 1.7A, 20V 1.3A, 25W power output to fast charge iphone 12/13 and all kinds of USB-C smart phones or tablets, with BC1.2, PD2.0/3.0, QC2.0/3.0, FCP, SCP multiple protocols.

USB-C 25W Charging Input
You can also charge LB-PD65C by USB-C charger. Supports PD 5V 3A, 9V 2.8A, 12V 2.1A, 15V 1.7A, 20V 1.3A, 25W power input, which means you can fully charge the 65Wh battery within 3.5 hours.

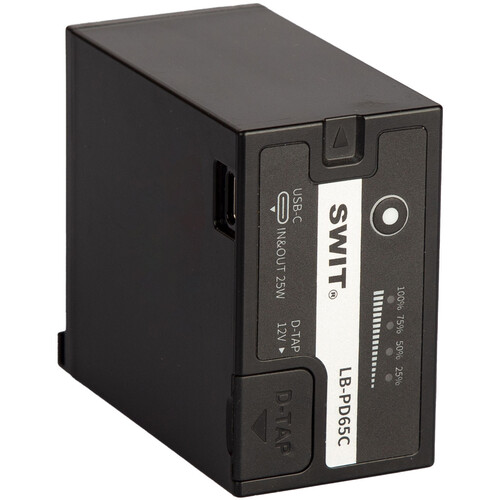

4-level Power Indicator
Press the power check bottom, the 4-level LEDs indicates remaining power percentage.

4-way Charging
LB-PD65C can be charged by Panasonic original charger, and SWIT LC-D421 4-way charger you can charge 4 batteries simultaneously, and fully charging within 5 hours.

Nominal Voltage 7.2V
Capacity 65Wh, 9.02Ah
Max power load 30W, 4A
D-tap 12V (reg.) 1.7A, 20W
USB-C
25W input 5V 3A, 9V 2.8A, 12V 2.1A, 15V 1.7A, 20V 1.3A
25W output 5V 3A, 9V 2.8A, 12V 2.1A, 15V 1.7A, 20V 1.3A
BC1.2, QC2.0/3.0, PD2.0/3.0, FCP, SCP
Original batteries Panasonic AG-VBR59/89/118G
Compatible Cameras Panasonic AU-EVA1, AV-DVX200, AJ-PX230/270
Panasonic AJ-UPX360, AG-CX350, AG-UX90/180, AG-AC30
Dimension 41×70×83mm
Charging Temperature 0-40°C
Discharging Temperature -20°C-50°C (Capacity and Max Load may decrease when operating below 0°)
Net weight Approx 356g

Panasonic VBR59/89/118 comparable
For Panasonic AU-EVA1, AG-DVX200
For Panasonic AJ-PX230/270, UPX360
For Panasonic AG-CX350, UX90/180 etc
7.2V nominal voltage Li-ion battery
65Wh / 9.02Ah capacity
30W / 4A constant power load
Built-in 12V reg. D-tap output
Built-in 25W USB-C input and output
4-level LED power indicator
Multiple circuit protections
